TOPIC: 59 Gator 3rd wheel specs

Hi All, this is a blow by blow of the size and specs of what MY 3rd wheel looks like.

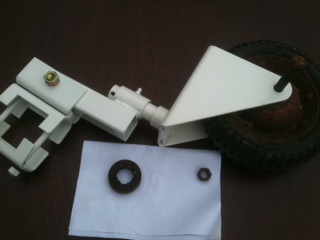

this is the whole thing

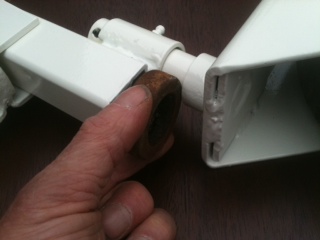

This is where the bearing goes

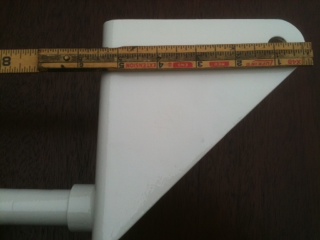

this is the vertical height of the wheel saddle

this is the horizontal size of the wheel saddle

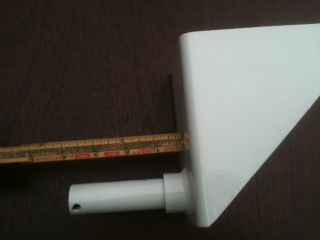

this is the length of the pivot pin

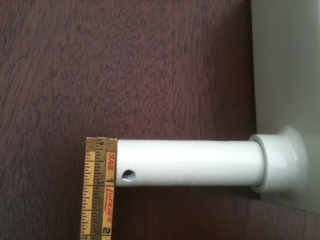

this is the pivot pin diameter

this is the inside dimension of the wheel yoke

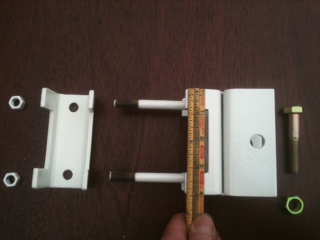

this is the saddle heigth

this is the inside of the saddle cutout that goes around the tongue

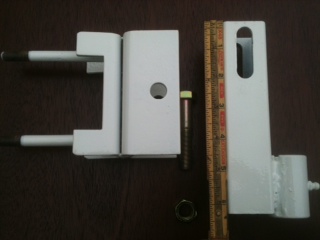

this is the flip tube length

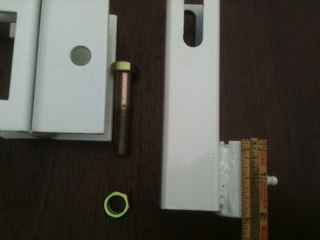

this is the pipe length

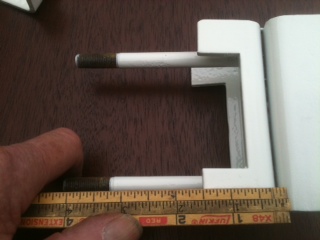

this is the saddle width

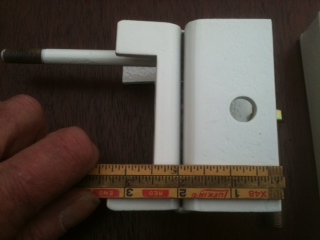

this is the flip up saddle width

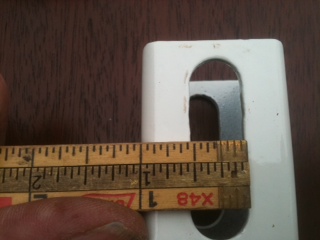

this is the flip tube width

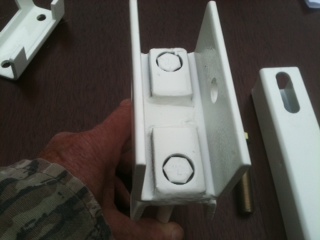

this is the saddle bolt heads

this is the flip tube slot

this is the flip tube width

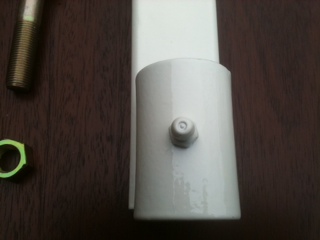

this is the grease fitting (for whatever reason?)

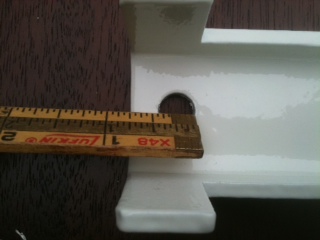

this is the saddle bolt holes. I would oversize these to keep the threads from scraping the paint and primer off

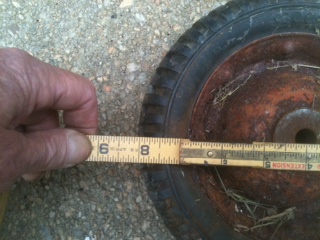

this is the tire size

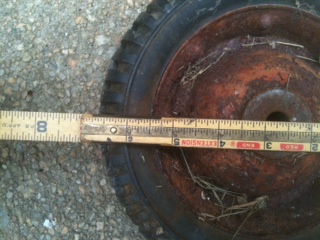

this is the wheel size

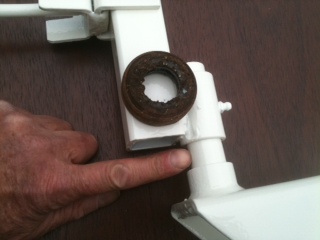

this is the bearing location (again for whatever reason)

Good luck. Hope this helps.

Thanks- That's just what I needed!

It looks pretty simple, I need to locate a few parts, and I'll try to make one up...

-Andrew

Nice clear pics. I love macro photos.
