TOPIC: Tee Nee center rollers

Tee Nee center rollers 8 years 9 months ago #120680

  • 63 Sabre
  • 63 Sabre's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167

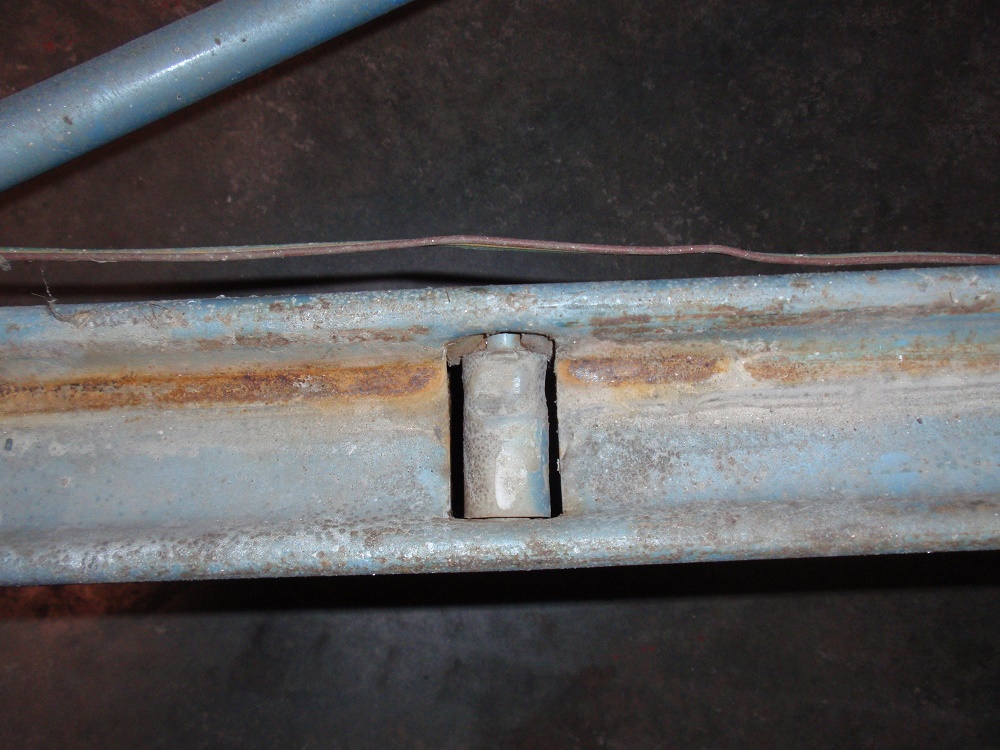

How do you guys replace these little center rollers?
Attachments:

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120688

  • Paul
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 418
  • Karma: 4
  • Thank you received: 7
Check this out on YouTube:

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120696

  • 63 Sabre
  • 63 Sabre's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Who wudda thunk? Thanks for the link, just what I was looking for.

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120704

Boy, you can tell they were really anticipating replacement of the rollers some day when they built that trailer, not. I guess it was part of the planned obsolescence era.

My Holsclaw has impossible rollers to remove on the bunk. they will have to be cut off and all new shafts used.

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120706

  • 63 Sabre
  • 63 Sabre's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
When I first saw those it was wtf??? Some thoughtful insight and planning ahead had to go into the initial design of that trailer. Most now are just generic with add-ons. Probably the reason the boat bottom is arrow straight.

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120737

Couple things I'd like to add.

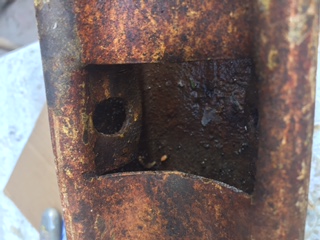

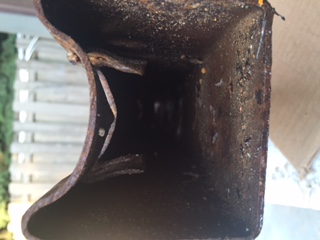

If when you remove the rollers you will see one end of the pin has a square end and the othe end is cut at about a forty five. Figure out which side is which. Most of the time the drivers side of a car is the angled end. That is the end you want to push back. Then drive the pin down or it may just fall into the tongue. Now the original pins are metal so a magnet is an easy way to retrieve them. Try not to bend back both side tabs if you do not have to. These tabs have a bit of a C bend to them from the factory and when you drive them back you will tend to straighten them ( take out the C bend) . Yes before you reinstall you take a screw driver and bend them back but the tabs tend to want to straighten out. This makes it hard to get the pin it stay in the tab when you reinsert them.
One other thing make sure you put your rollers back before you paint. It is almost impossible to reinstall and not wreck you paint.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Tee Nee center rollers 8 years 9 months ago #120744

  • 63 Sabre
  • 63 Sabre's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Thanks for the heads up. It will be a while before I get that far on the project since the boat is upside down on the trailer now. The pictures really help.
Cal

Please Log in or Create an account to join the conversation.
