TOPIC: Bunk Roller Question- 1963 Holsclaw Trailer

Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119509

  • damartinca
  • damartinca's Avatar Topic Author
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 225
  • Karma: 3
  • Thank you received: 5
Two questions about the rollers.

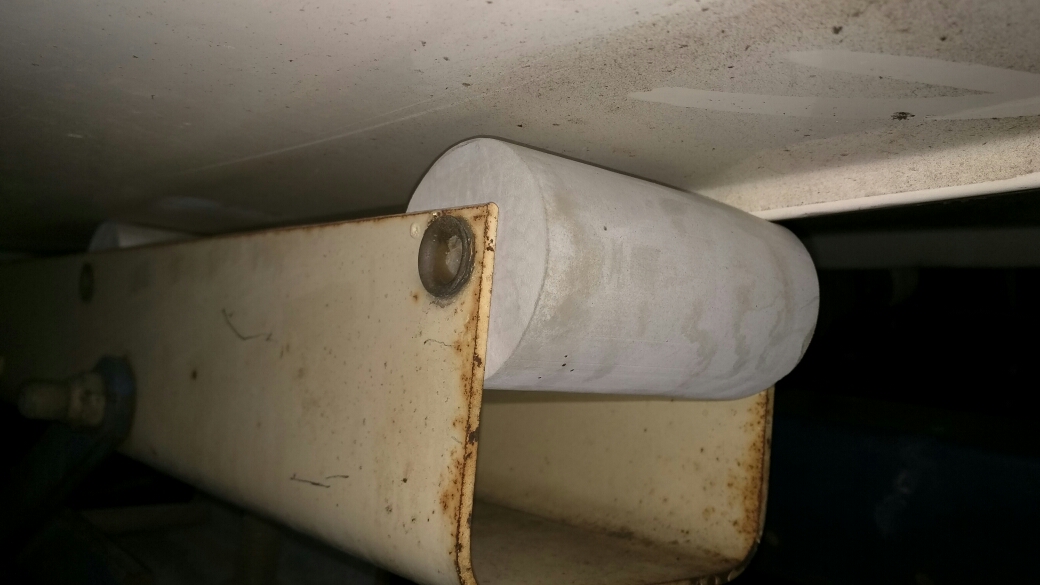

In the first picture- It looks like some kind of barrel nut... I don't know if that is the right term. Any idea on how to remove it?

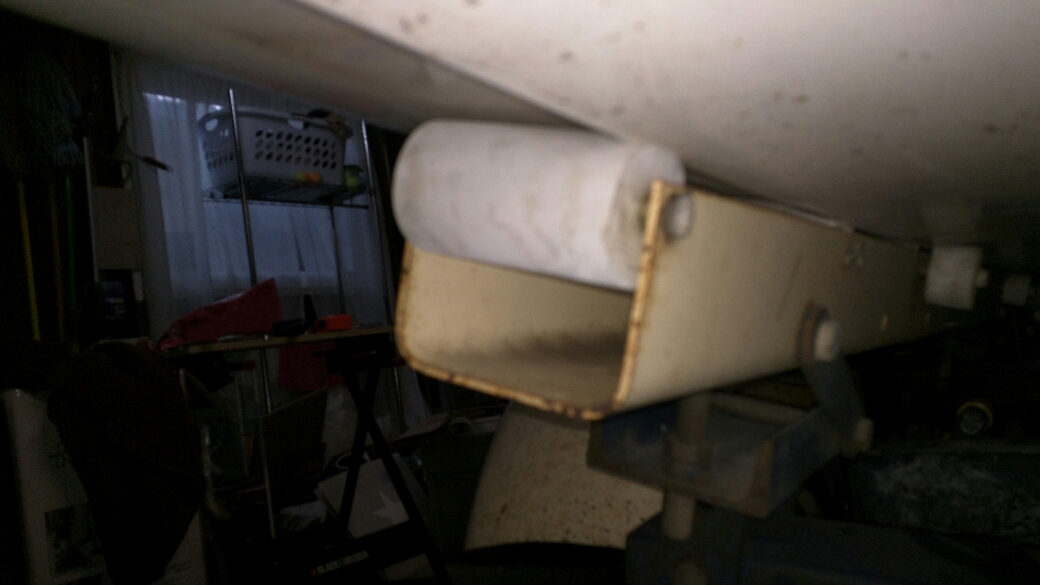

In the next two pictures, there are rollers on a flared shaft. Is the only way to change the roller by cutting the shaft? It seems like a dumb question because it looks like it does, but before I cut 20 shafts, I want to make sure.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119607

You can drive the roller pin out and reuse it. As for the others it appears to me that it is a one time use deal. I don't like that idea.

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119651

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Dave. Robert is right, you can drive the cold roll pin out using a punch or a nail/bolt to drive it through. I've encountered those %&*(*&^% type rollers before that were in worse shape than yours. Took a 4" grinder to one end and removed them all. Replaced with 2x4 carpet covered bunks.

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119658

  • damartinca
  • damartinca's Avatar Topic Author
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 225
  • Karma: 3
  • Thank you received: 5
Thanks for the feedback. I was able to finally loosen a pin. I've ordered a pin set now to finish the job.

Based upon a recommendation from someone in my local club. I'm going to see about sanding the rollers on the bunks. They are actually in pretty good shape. And they are original to the trailer.


David

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119662

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
They are easy to sand also, forgot to mention that. Mine were beyond that stage. about a 120 grit works good.

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119663

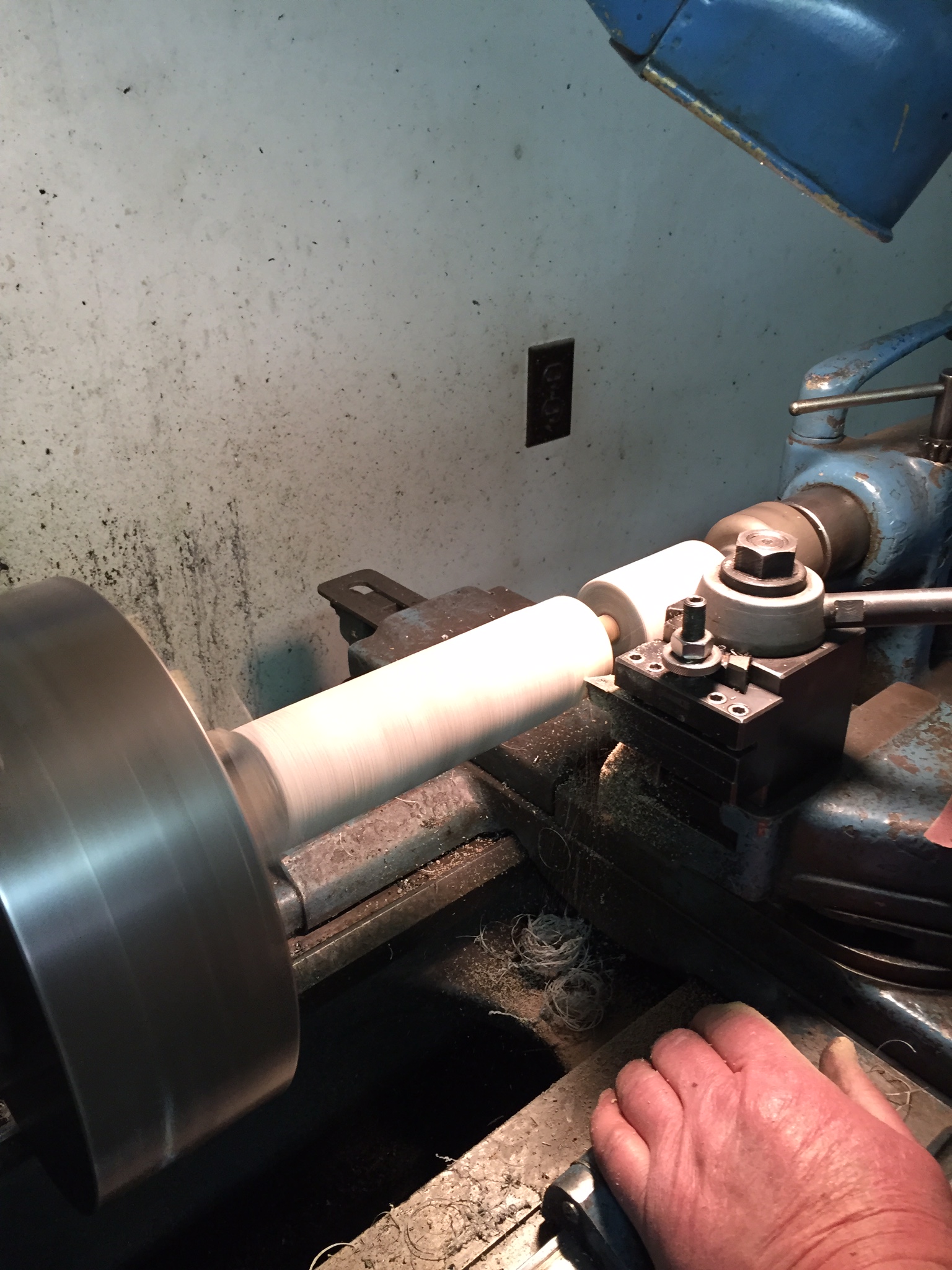

If you know someone with a lathe it makes short work of the job.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119920

  • damartinca
  • damartinca's Avatar Topic Author
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 225
  • Karma: 3
  • Thank you received: 5

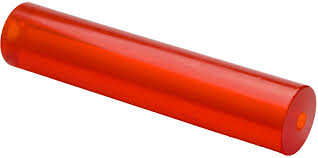

So I have figured out how to replace the keel rollers and get something to look kind of correct. My question is I am getting some Stoltz rp-212 rollers. It says they can be cut to size.

What kind of saw do you use to cut them?

I have a miter saw. Would that work? I don't have a bandsaw. If a miter saw would work, any recommendations on the type of blade? I don't want to lose any fingers in this process.

Thanks,
David
Attachments:

Please Log in or Create an account to join the conversation.

Re:Bunk Roller Question- 1963 Holsclaw Trailer 8 years 10 months ago #119927

  • Larry
  • Larry's Avatar
  • Offline
  • Junior Boarder
  • Junior Boarder
  • Posts: 99
  • Karma: 28
  • Thank you received: 2
Hi David,

We have cut a dozen or more rollers with a small cut-off grinder using a 4.5" disk. If you are doing it by hand, I would use a very fine blade so as to not tear the rubber. Use a piece of masking tape wrapped around the roller for your cutting mark.
Hope this helps.

Larry
www.vintageboatworks.com

Please Log in or Create an account to join the conversation.
