TOPIC: Will this work?

Will this work? 4 years 8 months ago #142023

Howdy folks - been a long time. I hope folks are staying home if they don't have to be on the job. Stay safe.

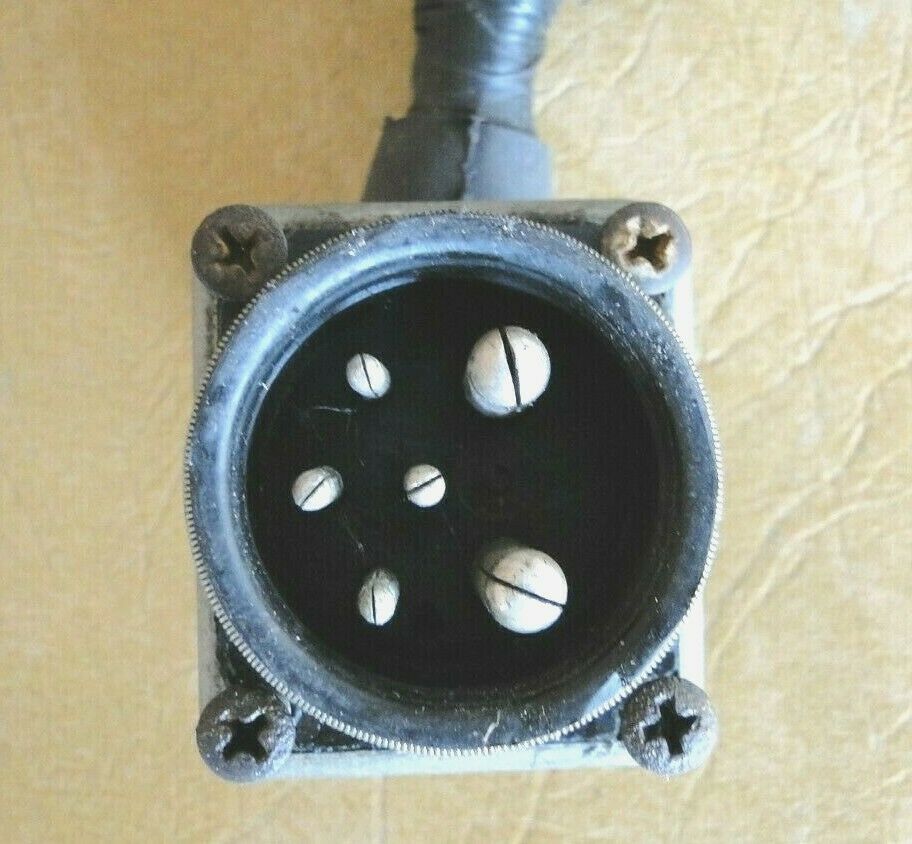

I have a question about the internal wiring harness. The earlier engines had a squared ledge molded into the connector at the motor pan - this had an aluminum receiver that backed it up and held it in place with 4 screws around each corner of the connector. The later engines used a notch case into the pan and a circular ledge molded into the connector elbow. This was locked into the pan with a little bracket on the inside.

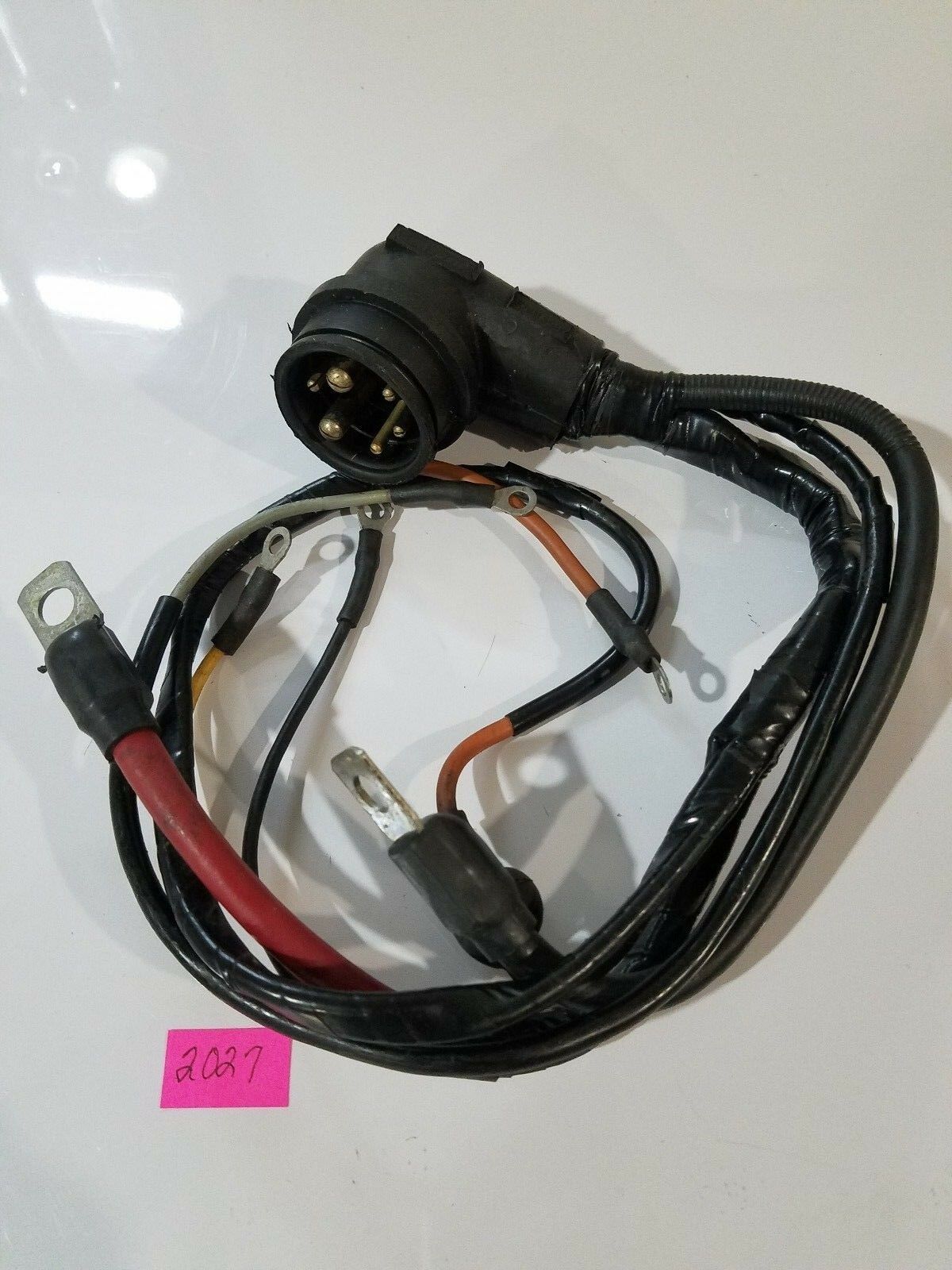

Does anyone know for sure - if the newer type ( with the circular rubber ledge ) can be successfully installed in an older engine that used the square bracket? My hope is that this would work - and that the bracket would engage enough of the circular rubber ledge to lock it into position.

I want to use a newer harness design because the late ones were made using vinyl covered wire. I plan to use this on my '63FGS 700 model. That engine has a rotted harness - and the harness uses the odball pin arangement from those years. I have the control side harness for a 150 and it is like new. The pinout on that is the same on my '64 650 model. I will just mix and match what works. But mainly wanting to know if anyone has put a later harness on an earlier motor as I describe above. Thanks and stay well.

Please Log in or Create an account to join the conversation.

Will this work? 4 years 8 months ago #142024

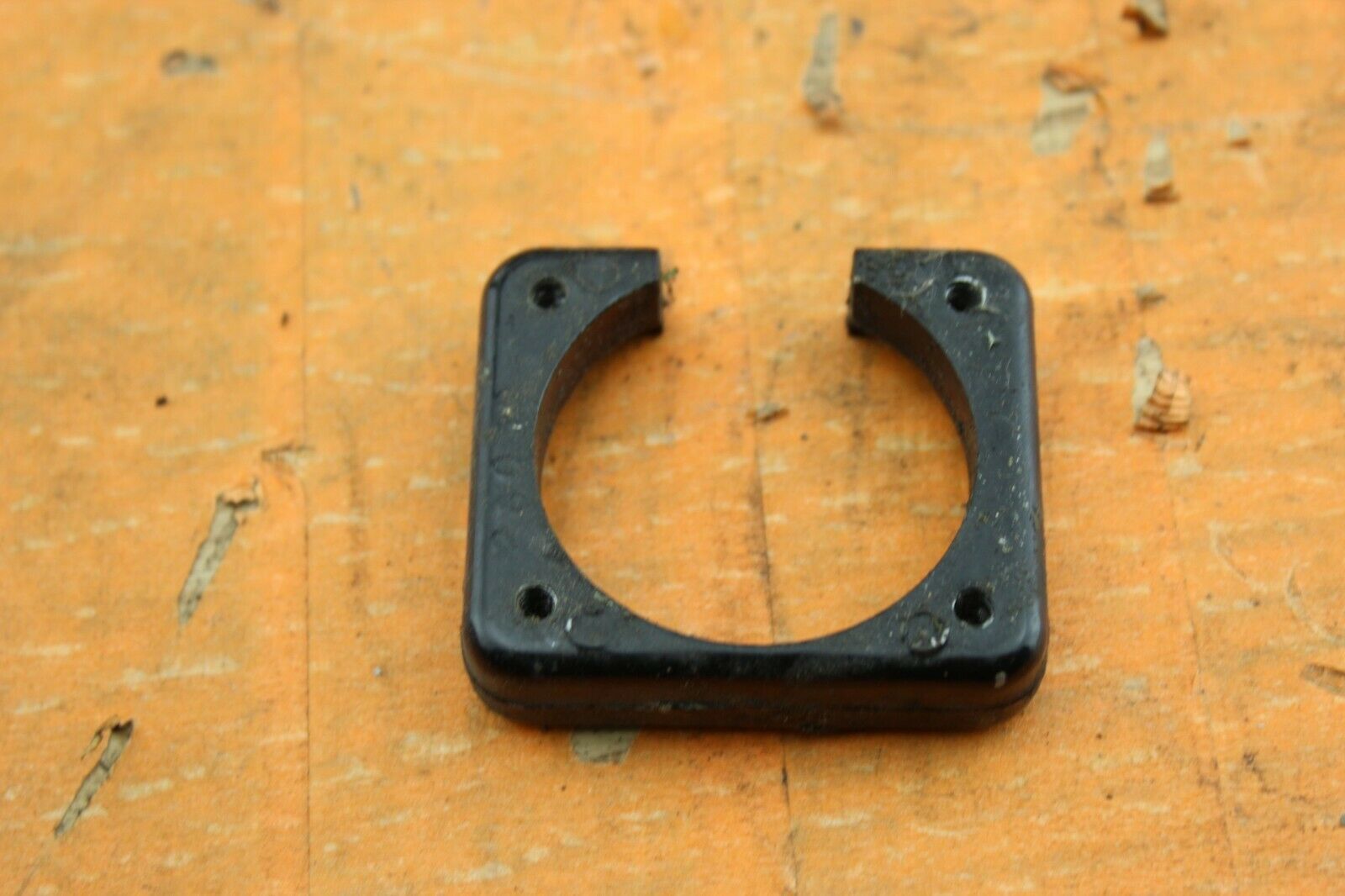

I have cut the bracket and modified it to work.
Make sure you get the wiring correct with your new combo of harnesses. and key setup.

Please Log in or Create an account to join the conversation.

Will this work? 4 years 8 months ago #142026

Dave - thanks for the fast reply. What had to be cut? can you give specifics on if the old aluminum retainer worked still = etc. The electrical connections are me least problems at this point, as I do Electronics for my living. But thanks for the heads up. Any mounting details you have will help me. Thanks

Please Log in or Create an account to join the conversation.

Will this work? 4 years 8 months ago #142027

If I remember right, the newer ones have a couple more pins in the connecter . When I first installed the 1977 Merc 1150 on my Thompson I used the controls from the 1963 Merc 850 that was on it originally. I used the old connector from the motor end to make it work. I drilled holes to match 2 of the holes on the old plug for the screws and if worked fine. I think the wires that weren't in the connector were for the power trim/tilt. that was wired separately anyway.
Bill

Please Log in or Create an account to join the conversation.

Will this work? 4 years 8 months ago #142029

Bruce give me a call
1 914 310 7086
Dave
