TOPIC: Merc 500 Swivel bracket / tilt stops?

Hi

Does anyone have a better image/picture than the manual as to how the tilt stop levers are fitted? The manual is as clear as mud as into which holes the thin head, shouldered screws go into the swivel bracket and the clamp brackets. Mine did not have the tilt brackets when I bought it.

Many thanks

About what year?

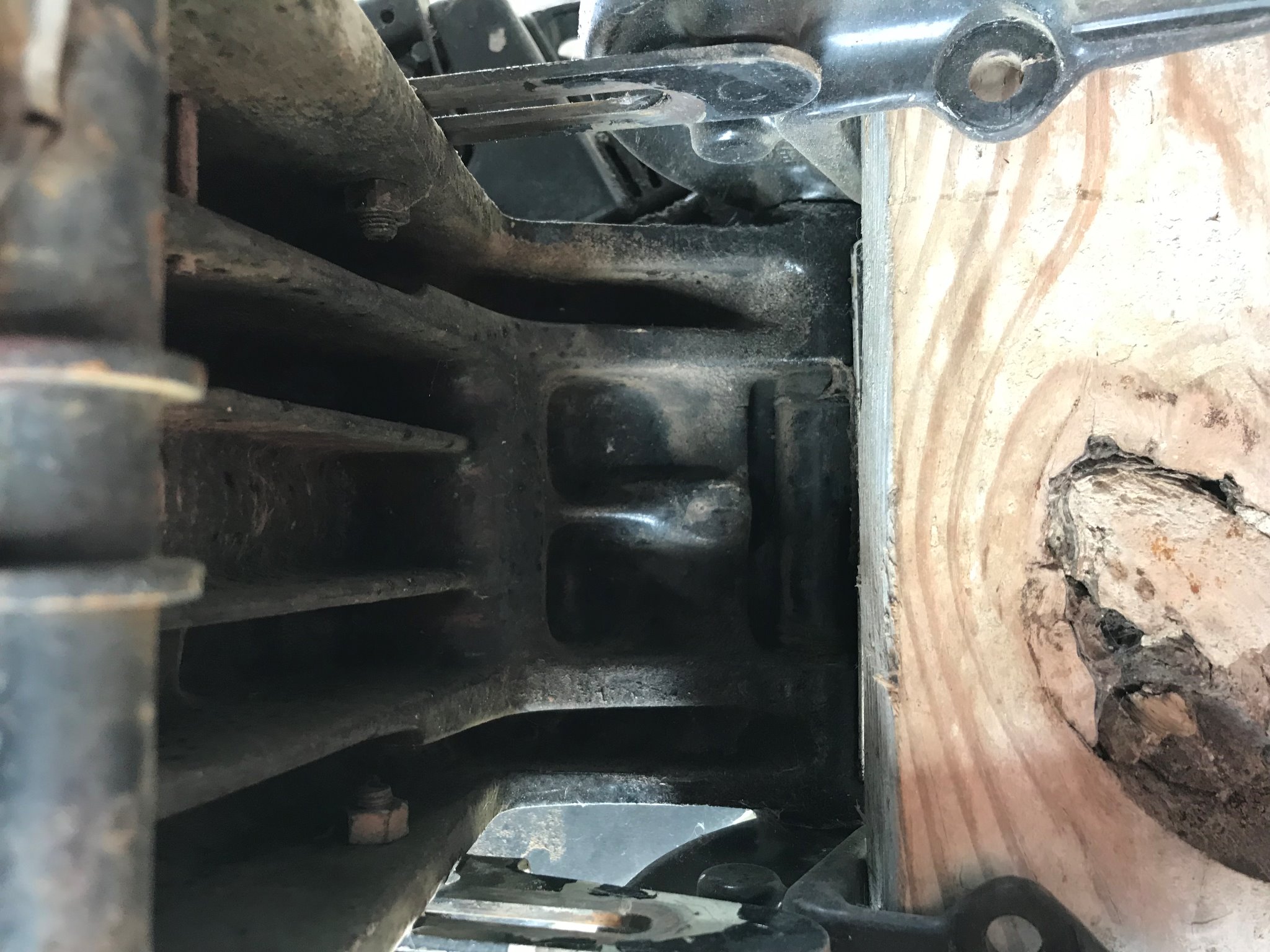

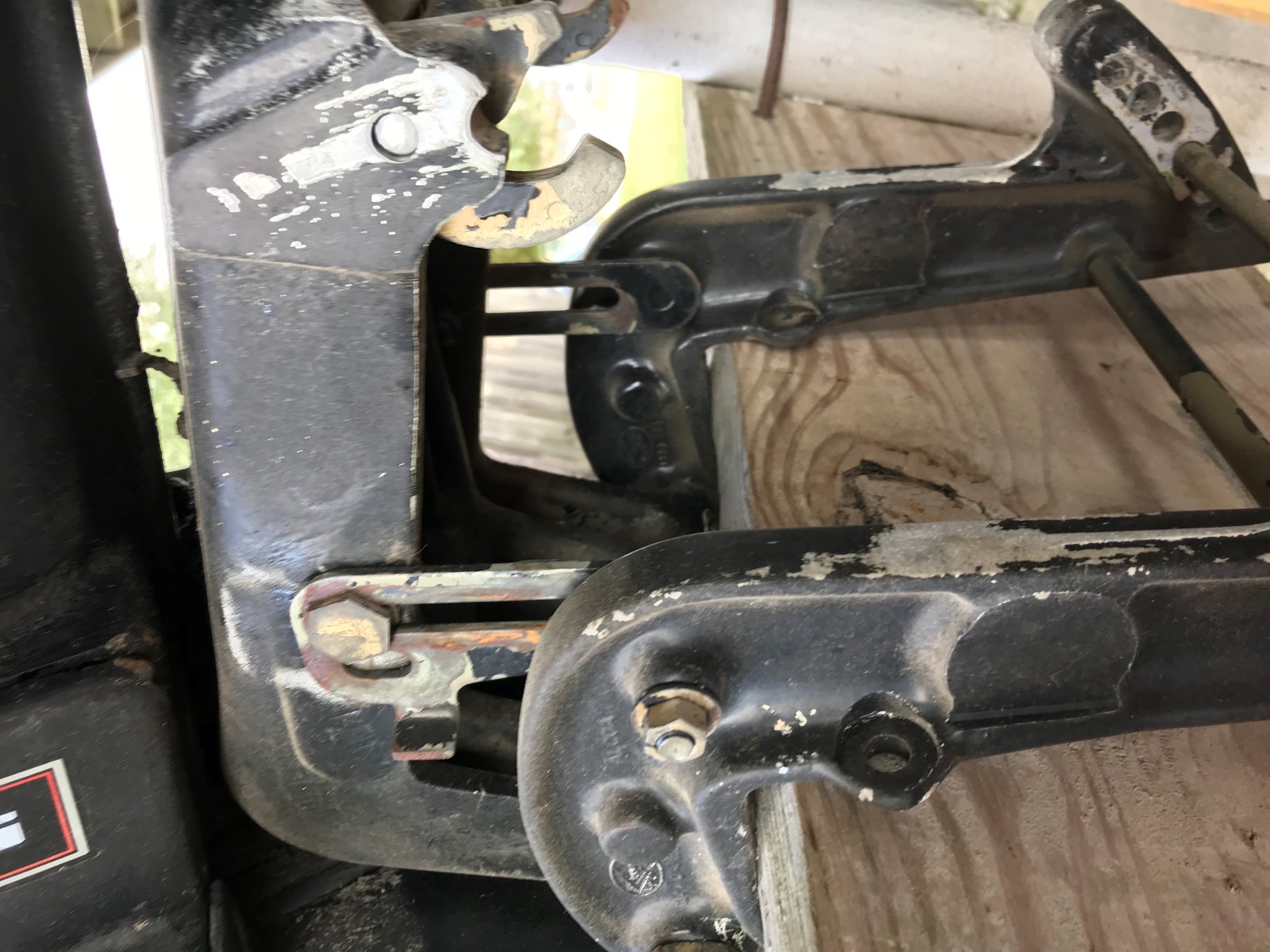

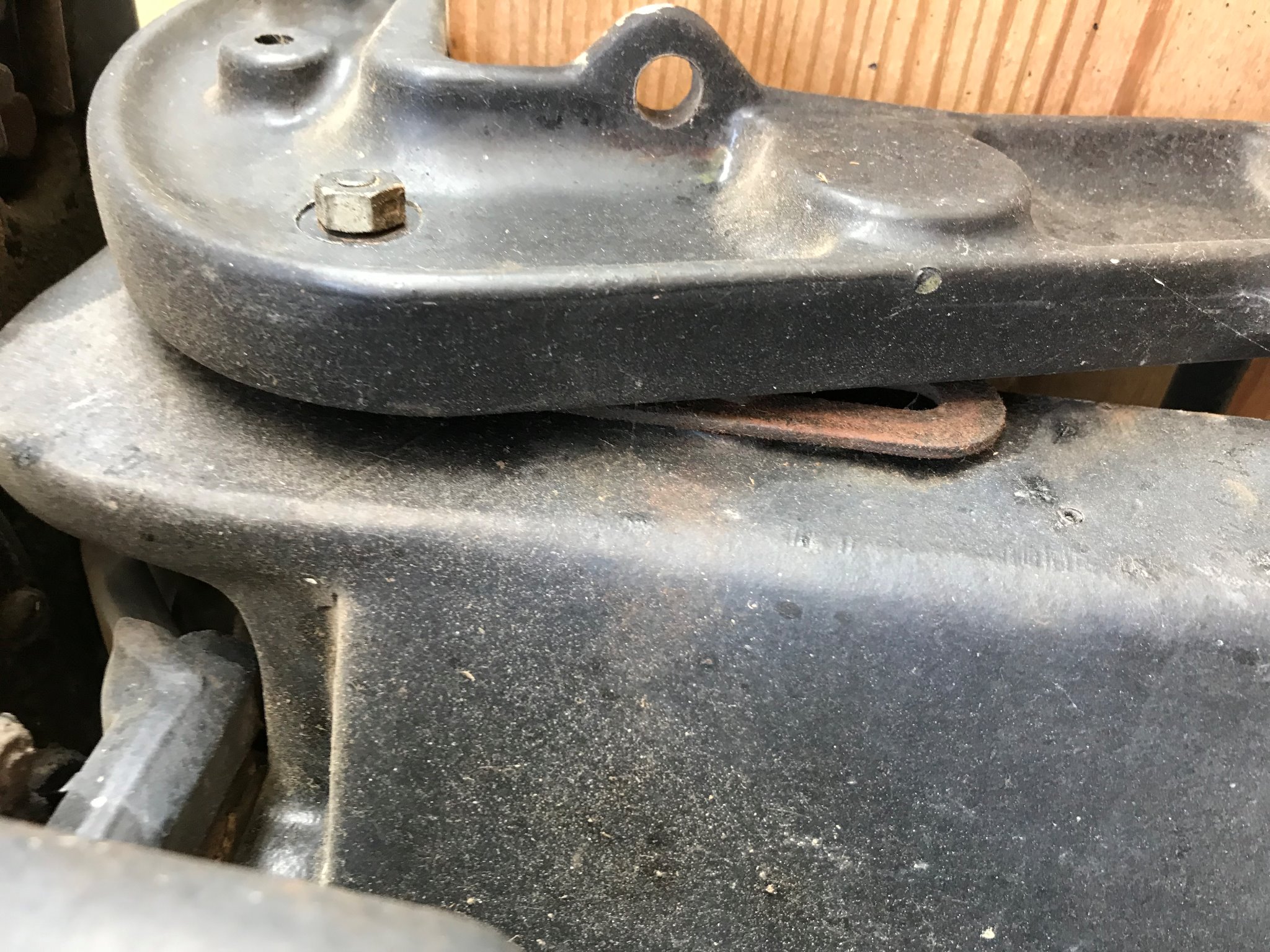

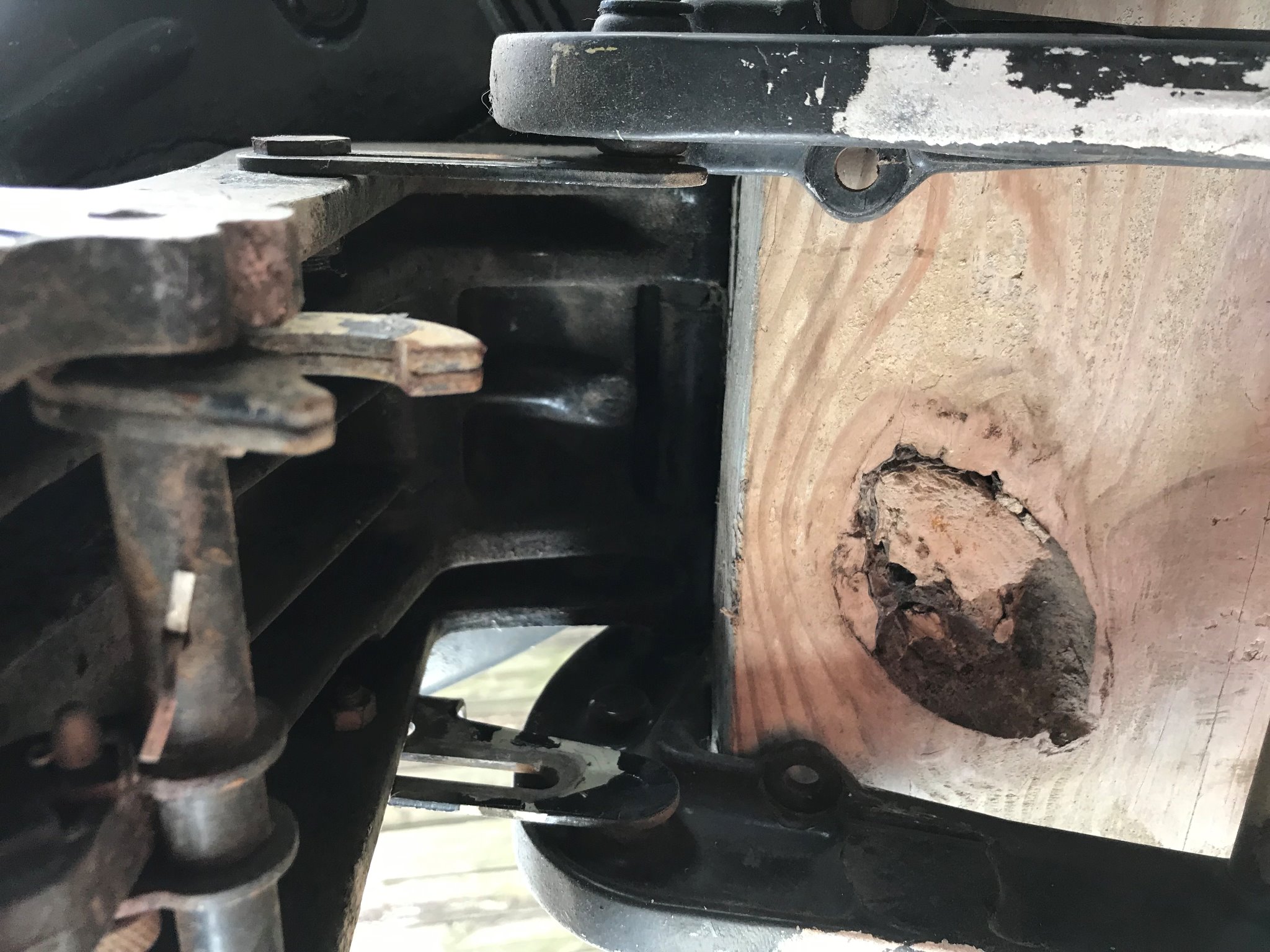

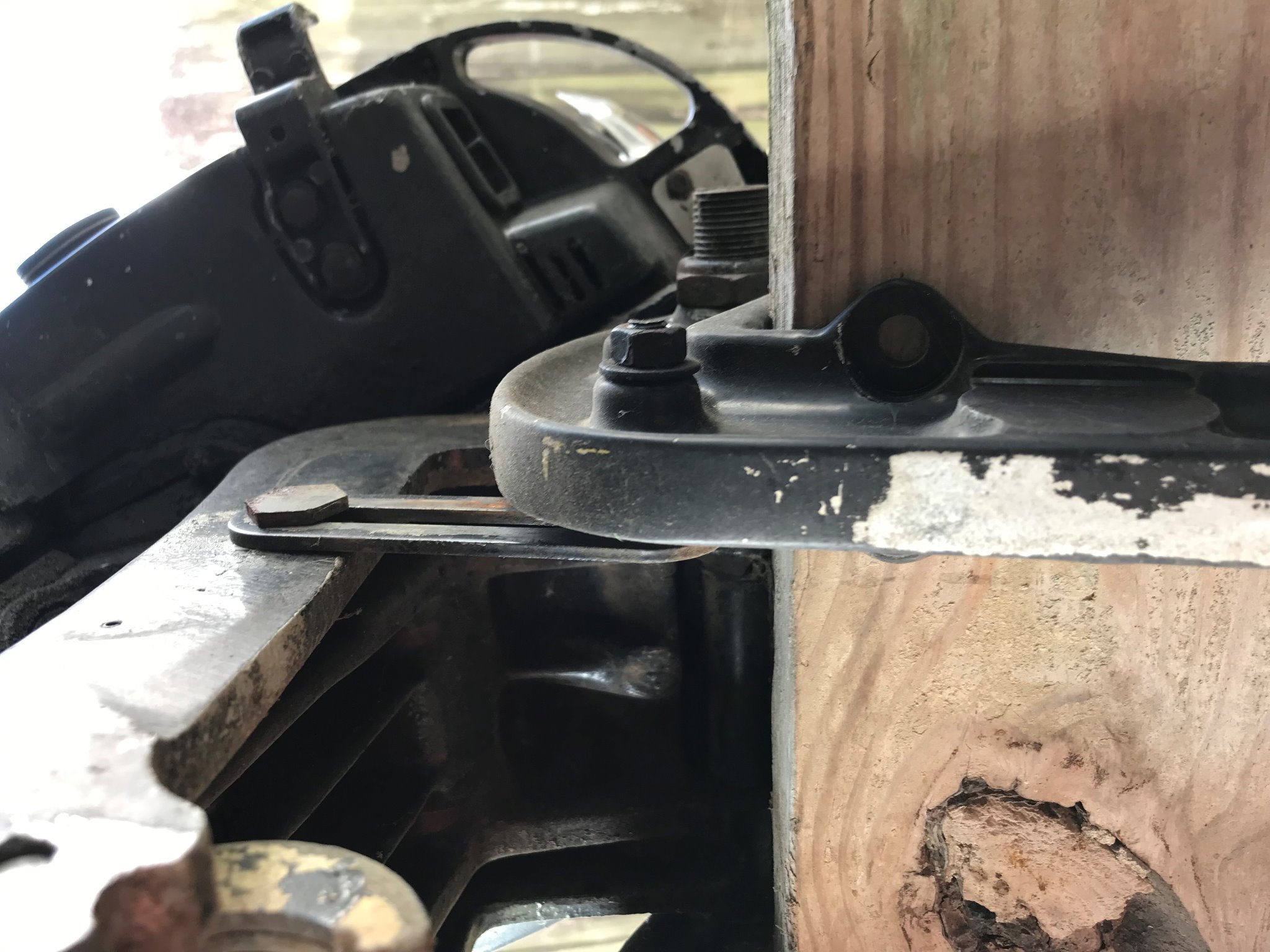

First four pictures are from my '69 last pic my '67. Also have '78 if needed

Hi Bayoumerc

Perfect ! Thank you. Mine is a 65 white clud 1599010. I bought the fittings from Joe Poole according the part numbers in the manual, but I don't think the ones that are susposed to go through the brackets are long enough. But I'll check again tomorrow now that I can see how it goes together.

Once again many thanks
