TOPIC: Mercury Shifter/throttle repair

Mercury Shifter/throttle repair 6 years 6 months ago #136791

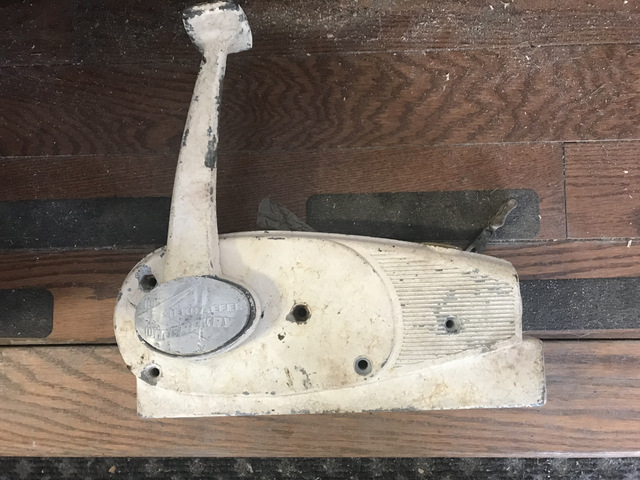

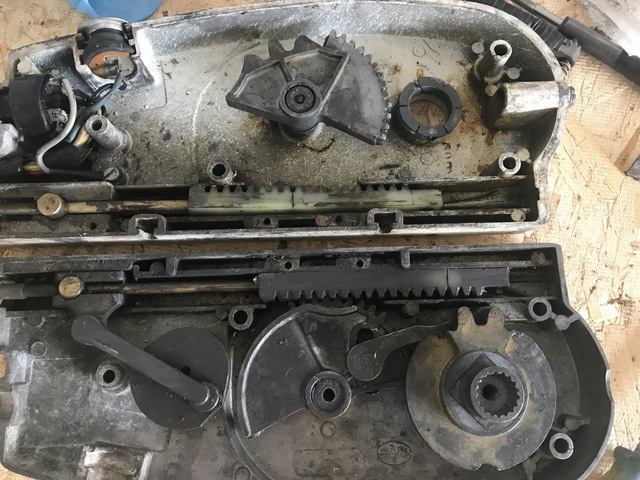

Merccooper Topic Author Offline Senior Boarder Posts: 180 Karma: 6 Thank you received: 2	Hi All, Small chance I'm thinking, but does anyone know how to set the gears when putting back together this vintage mercury shifter. Or maybe where I can find a manual? One of the nylon gears broke last year. I took it apart (with out pictures and now I'm stuck) Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

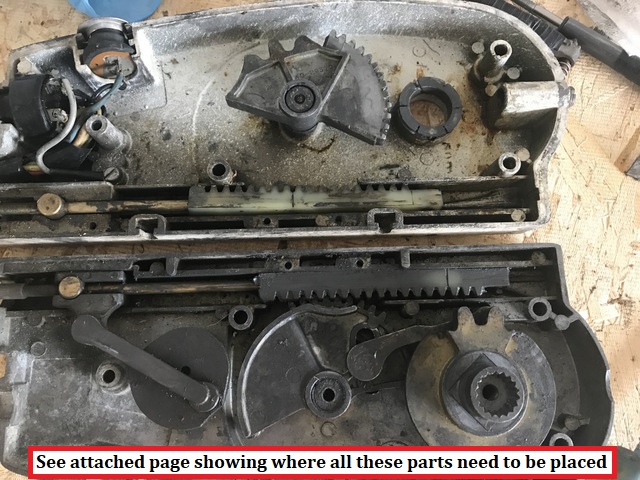

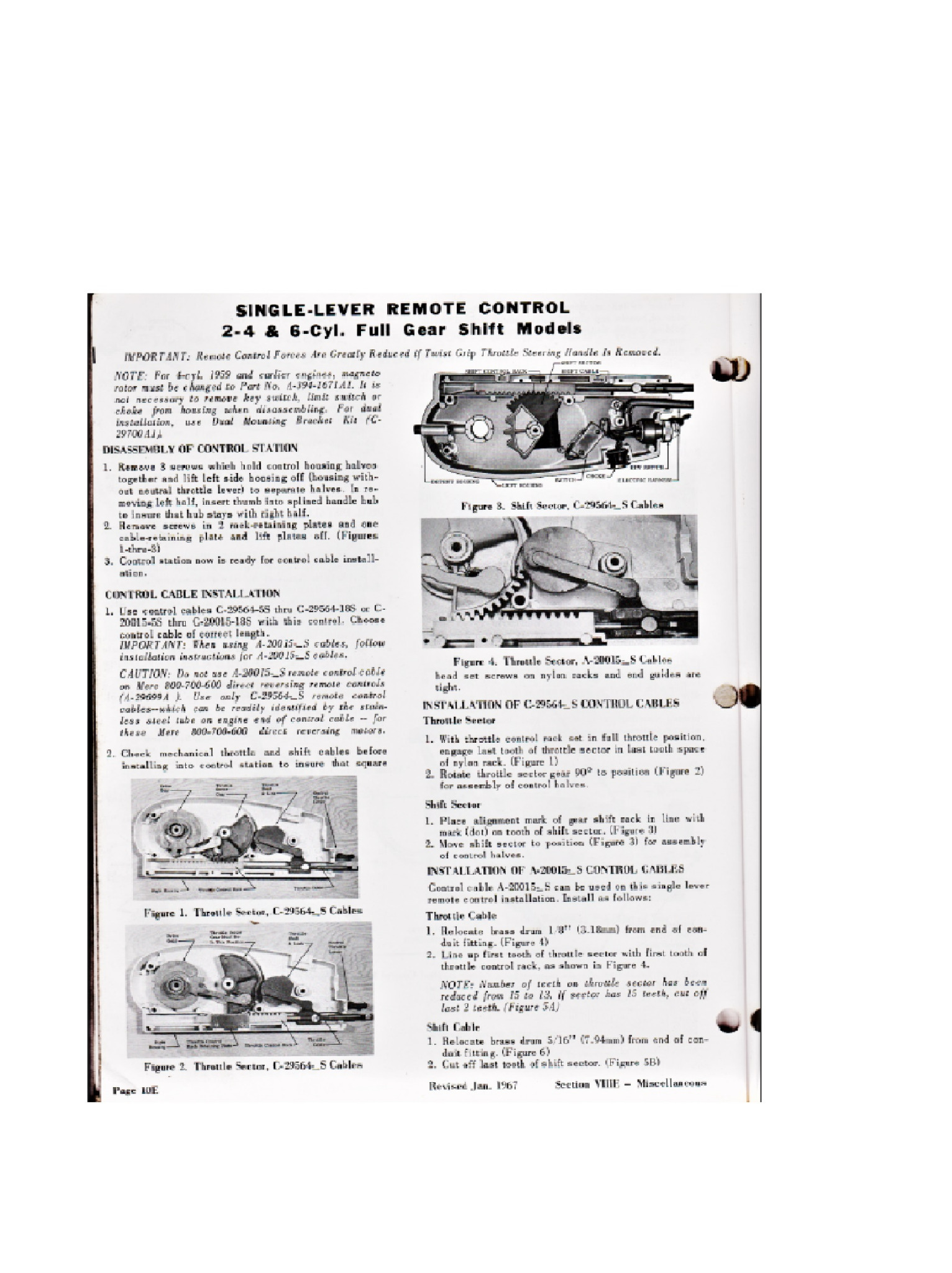

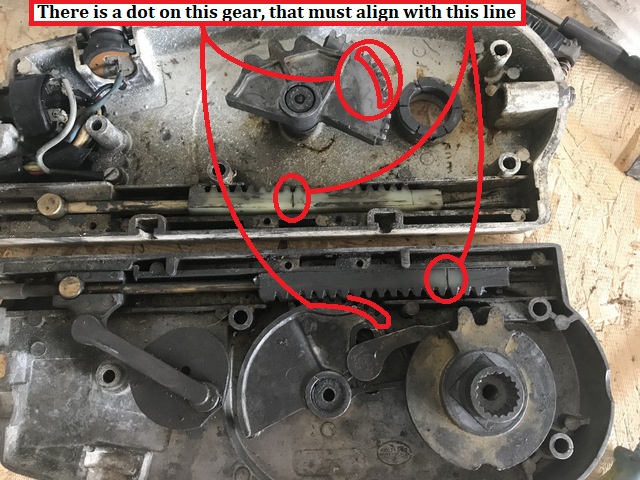

Dr_Frankenmerc Offline Contributing Member Posts: 1433 Karma: 185 Thank you received: 44	See attached pictures. doc Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Merccooper Topic Author Offline Senior Boarder Posts: 180 Karma: 6 Thank you received: 2	Thanks Doc! You always come through for us amatures! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.
