TOPIC: Repainting my '65 E-rude

Repainting my '65 E-rude 10 years 11 months ago #85690

Jim L
Topic Author
Offline
Platinum Boarder
Posts: 1426
Karma: 60
Thank you received: 2

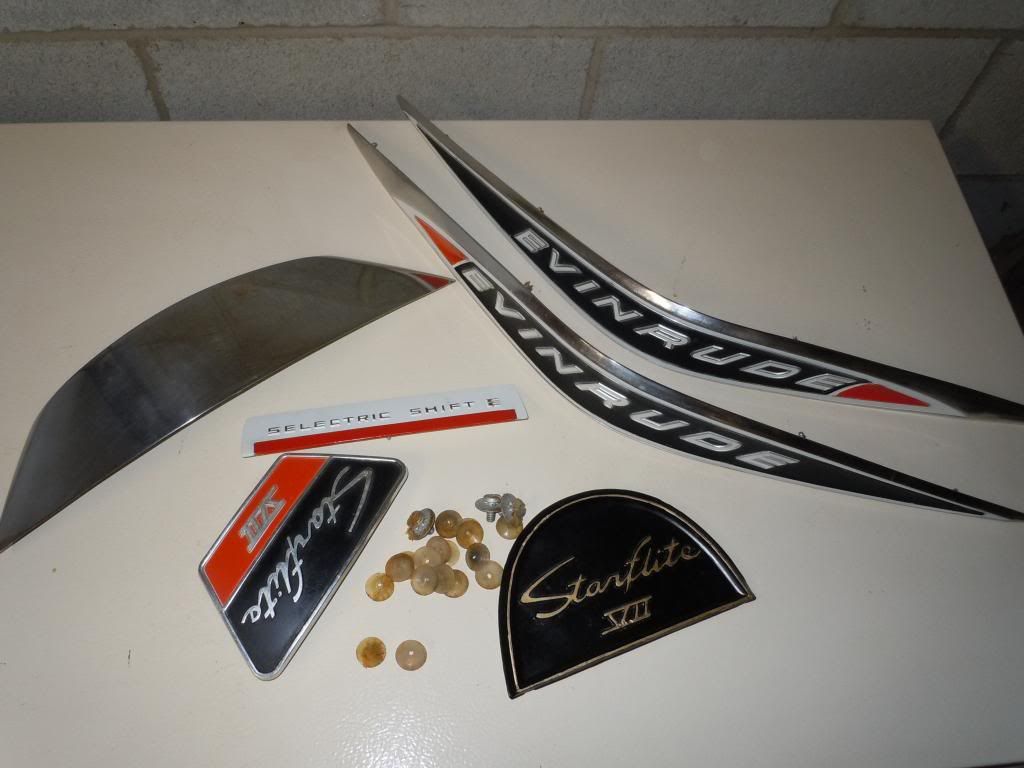

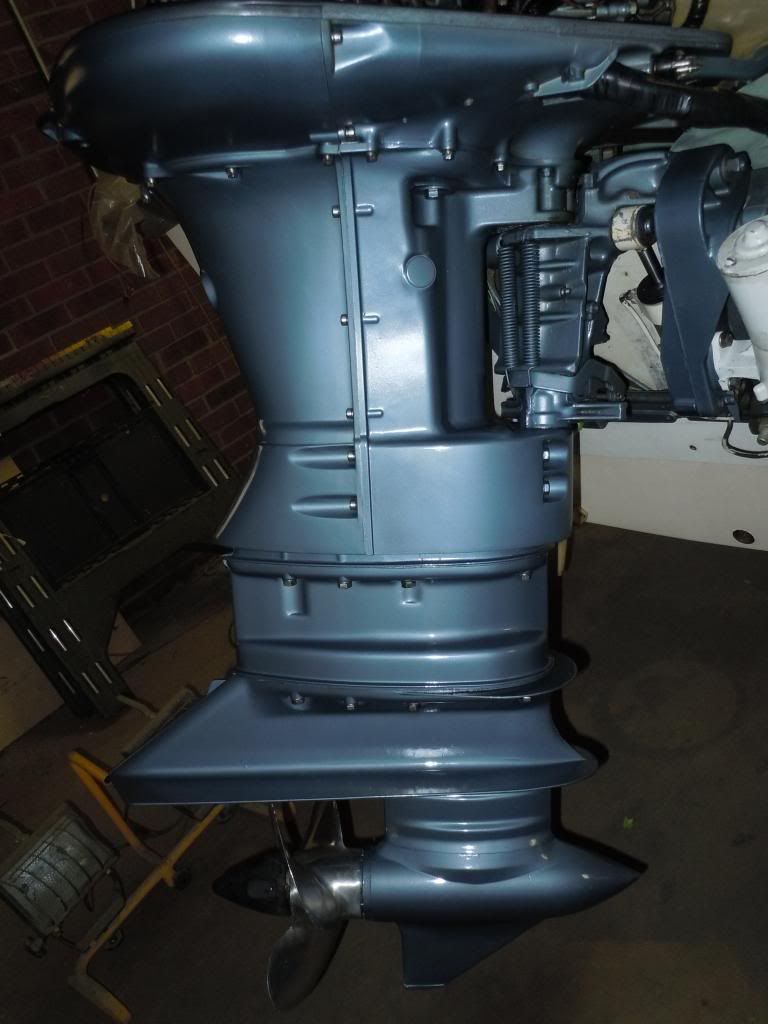

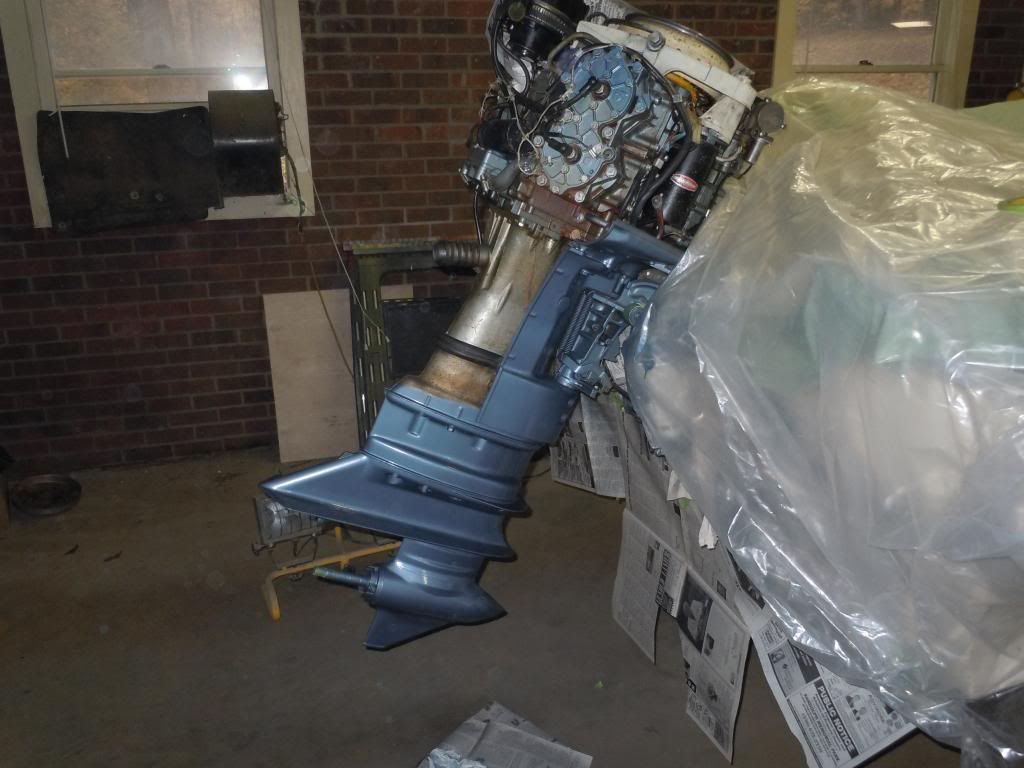

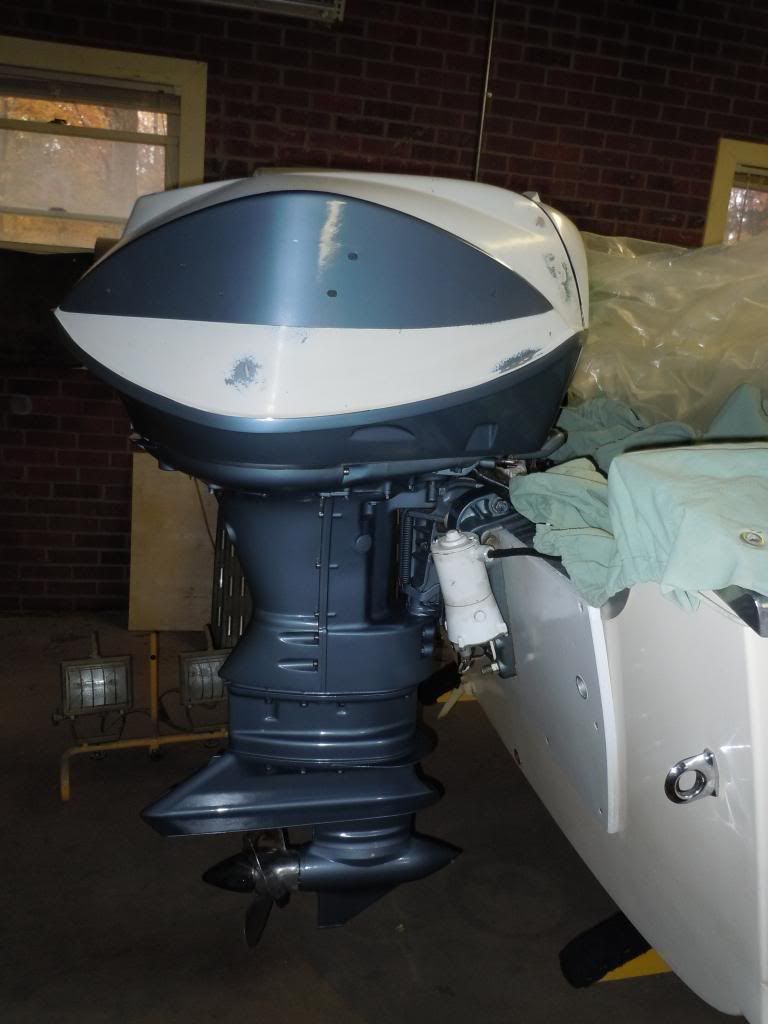

After seeing Bob's(waterwings) beautiful job he did on his Evinrude, I decided I needed to do a little sprucing up on mine. I got a couple OEM BRP polychromatic blue spray cans off Da-bay and some rustoleum white from Lowes to do the hood.Just got done with the blue,will let it cure out for a while before I do the white. I did a couple things different on the trim. I stripped the paint off of the stainless bolts and screws and buffed them and the lift handle too.Hopefully,that will give the motor a little more "bling".

Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 11 months ago #85691

MarkS Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	Lookin' good Jim ! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Repainting my '65 E-rude 10 years 11 months ago #85704

Waterwings Offline Contributing Member Posts: 4887 Karma: 107 Thank you received: 100	Excellent Jim, it's looking great!!!! Bob Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 10 months ago #85896

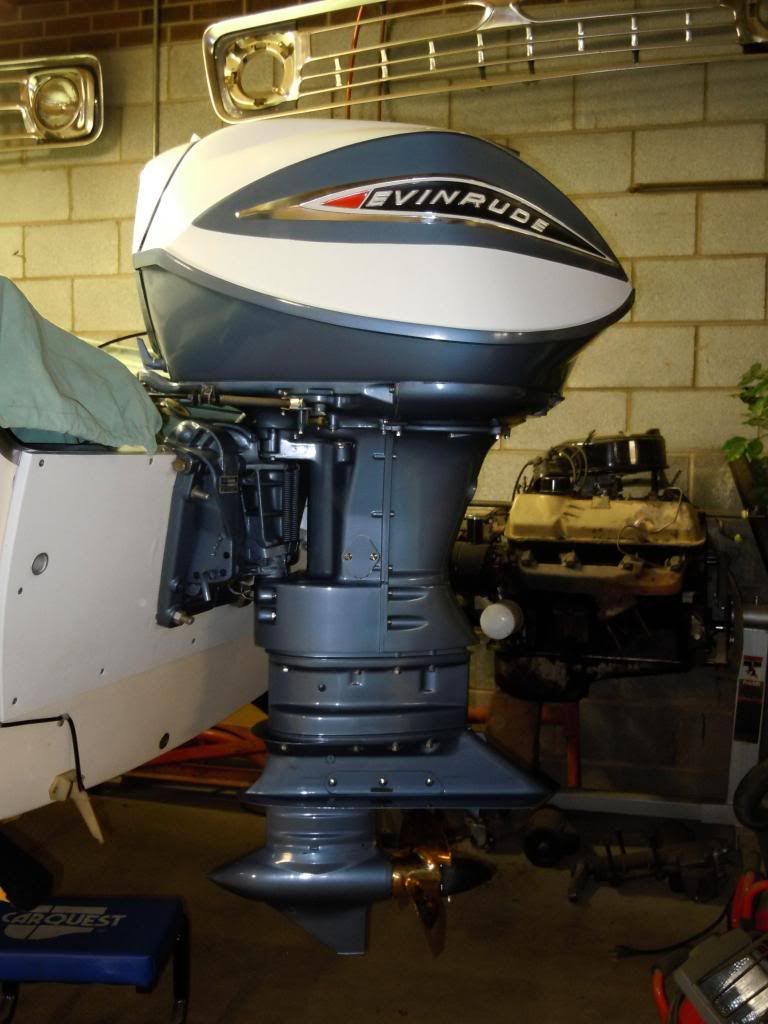

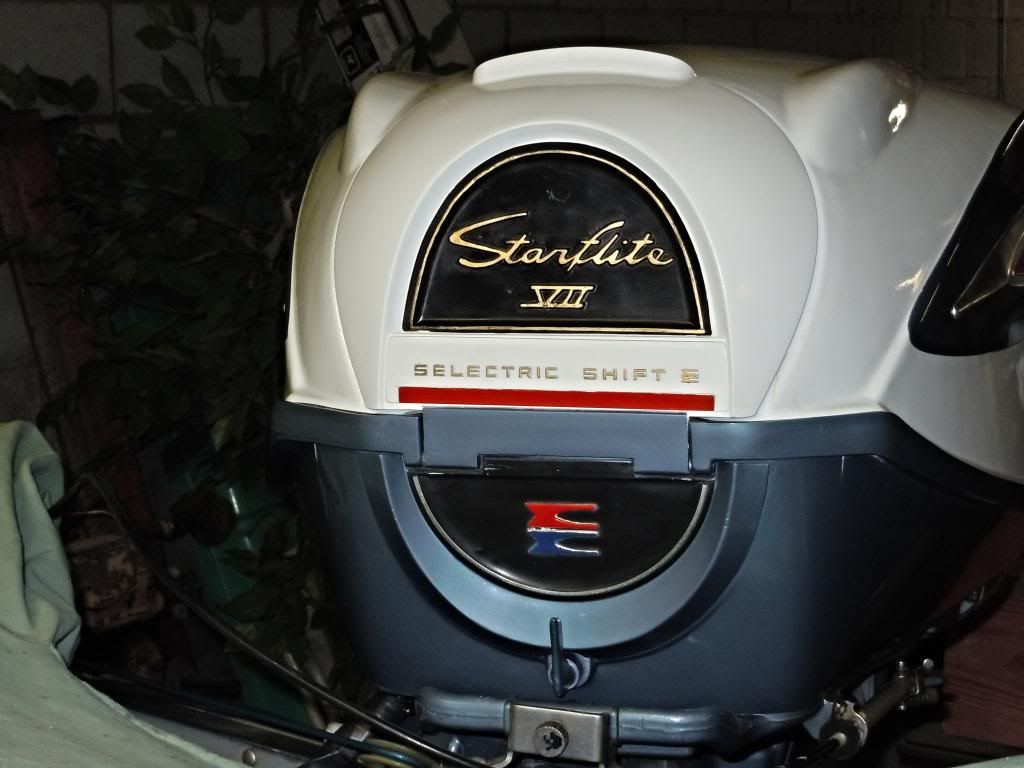

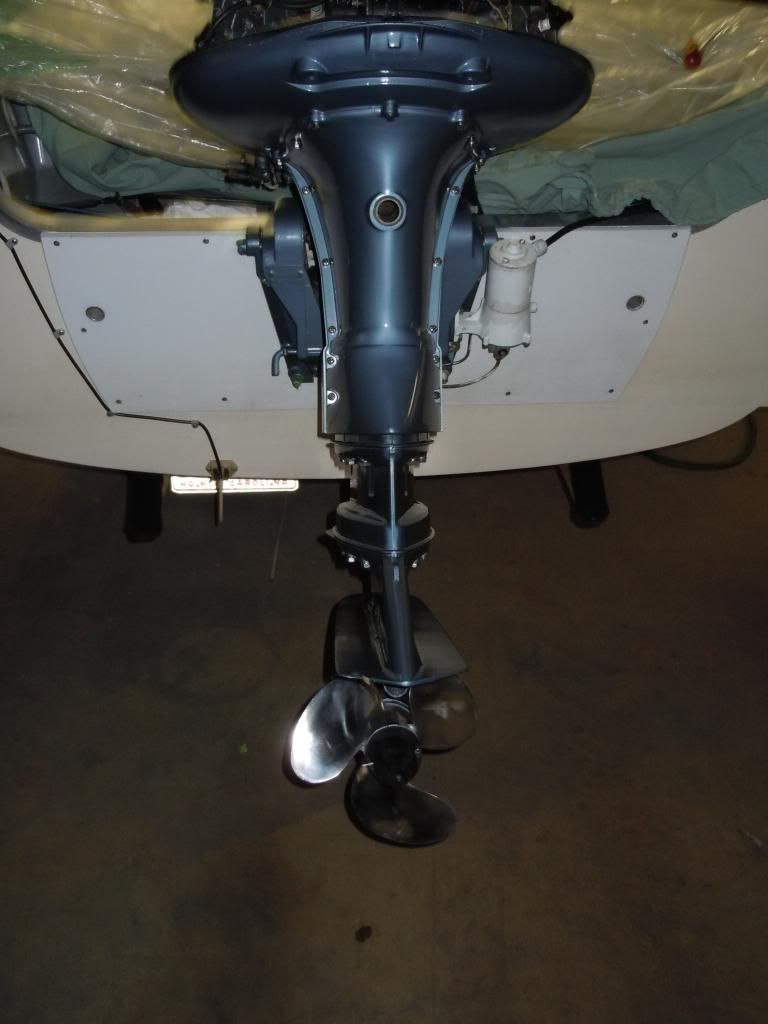

Jim L Topic Author Offline Platinum Boarder Posts: 1426 Karma: 60 Thank you received: 2	Well,I wrapped it up today. Turned out decent. Thought I'd pop a couple pics. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 10 months ago #85903

Waterwings Offline Contributing Member Posts: 4887 Karma: 107 Thank you received: 100	Outstanding Jim!!!!!!!!!!!!!!!!!! Bob Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 9 months ago #87688

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Looks brand spankin' new. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 8 months ago #88921

gfgarland
Offline
Expert Boarder
Posts: 363
Karma: 47
Thank you received: 3

Looks spectacular, especially for a rattle can job, but did you remember to prime with zinc chromate first on any bare aluminum? Paint has an awful time sticking to bare aluminum without etching primer first, especially underwater. A coat of epoxy primer over that is also recommended to seal out the water.

Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 8 months ago #88934

thompsonboat Offline Platinum Boarder Posts: 1418 Karma: 188 Thank you received: 19	Great job. Well done. Andreas Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 8 months ago #88983

curse Offline Contributing Member Posts: 445 Karma: 5 Thank you received: 2	Just curious on what type of prep (to remove any grease, dirt, etc) you did on the motor before painting. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. 1960 slickcraft catalina 1963 g-w invader ski-bird 1972 g-w invader drag & ski 14 Portage Michigan

Re:Repainting my '65 E-rude 10 years 6 months ago #91326

Jim L
Topic Author
Offline
Platinum Boarder
Posts: 1426
Karma: 60
Thank you received: 2

Thanks guys. Honestly, I had forgotten all about this thread oops. I washed it down with engine degreaser a couple times and primed over the bare metal with zinc primer,let it cure out a few days and scuffed it before I painted it. I goofed on the white. I picked up semi gloss instead of gloss at the store and didn't catch it until after I shot it lol,but took 2000 grit and water sanded and used 3M finesse it compound and give it a mirror finish. Did the same on the blue after I saw how good it did on the white. The beauty of this is I can easily touch it up when i need to.

Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 6 months ago #91328

frog Offline Platinum Boarder Posts: 1431 Karma: 59 Thank you received: 3	jim , it looks very good, you should be proud. frog Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 6 months ago #91329

Jim L Topic Author Offline Platinum Boarder Posts: 1426 Karma: 60 Thank you received: 2	Thanks Greg, I'm satisfied with it. I didn't want to get that involved with it by taking it off the boat and stripping it down to bare metal like I did with the Johnson years ago and get custom matched urethane paint mixed for it. jim Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 6 months ago #91331

satx78247 Offline Contributing Member Posts: 2688 Karma: 66 Thank you received: 3	Jim L, That's just downright PURTY! yours, satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Resistance to tyrants is obedience to Almighty God. Thomas Jefferson, 1803

Re:Repainting my '65 E-rude 10 years 6 months ago #91333

Jim L Topic Author Offline Platinum Boarder Posts: 1426 Karma: 60 Thank you received: 2	satx78247 wrote: Jim L, That's just downright PURTY! yours, satx Tanks,satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 6 months ago #91348

1960RedG-3 Offline Gold Boarder Posts: 564 Karma: 33 Thank you received: 2	Jim: Hey buddy,...you did a BEAUTIFUL job on that motor!! I must have missed this thread at the time you started it. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Repainting my '65 E-rude 10 years 6 months ago #91349

Jim L Topic Author Offline Platinum Boarder Posts: 1426 Karma: 60 Thank you received: 2	Thanks John, I about forgot it myself Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
