TOPIC: 1964 Johnson deluxe restoration project for 2021

Thank you
I took your idea and put the search on E bay. If nothing shows up I'll try to make on from the 16 hole square transom seal.
Walt

I think that may work, but the ring (regardless of which shape) "snaps" into the molded rolled outer edge. You would be lacking that "snap" feature. Maybe adding additional screws would be a good idea in that case?

When I did my Sportsman, I did a trial fit of a 16 hole simply to see if it would clear the upper transom strip & it did. My round seal is good, so for now that is what I used. I also have 3 more good used ones.

If you have the nearly square transom seal (not used on OMC built boats), the 16 hole won't cover the cutout. I don't know about the 22 hole seals, maybe they would cover the cutout.

Why so many different seals anyway? I get the need for the round style for small or irregular shaped (not flat) transoms. It's a bitch to remove or install the engine because of the tilt clutch. Of course, OMC was only installing the engine.

On this note, after removing the engine/intermediate as an assembly, I separated the 2 (another bitch after 53 years of dried grease on the splines). It required removing the lower cross mount & working the flywheel bolts out with a deep offset 5/8 wrench 1/6th turn at a time. The intermediate went back in 1st then the engine was installed. Much easier & the splices have new Molylube, good for another 53 years.

The 16 hole makes removal & installation easier as well as replacing the tilt motor on a boat with poor interior access.

Why the bigger nearly square style? Didn't anyone ever explain to the engineers & designers that cutouts should have round corners to reduce stress/cracks?

The larger 22 hole came last, it allowed more clearance to avoid pinching when using power trim.

I take advantage of my post to put some pictures of a friend’s sea sport.

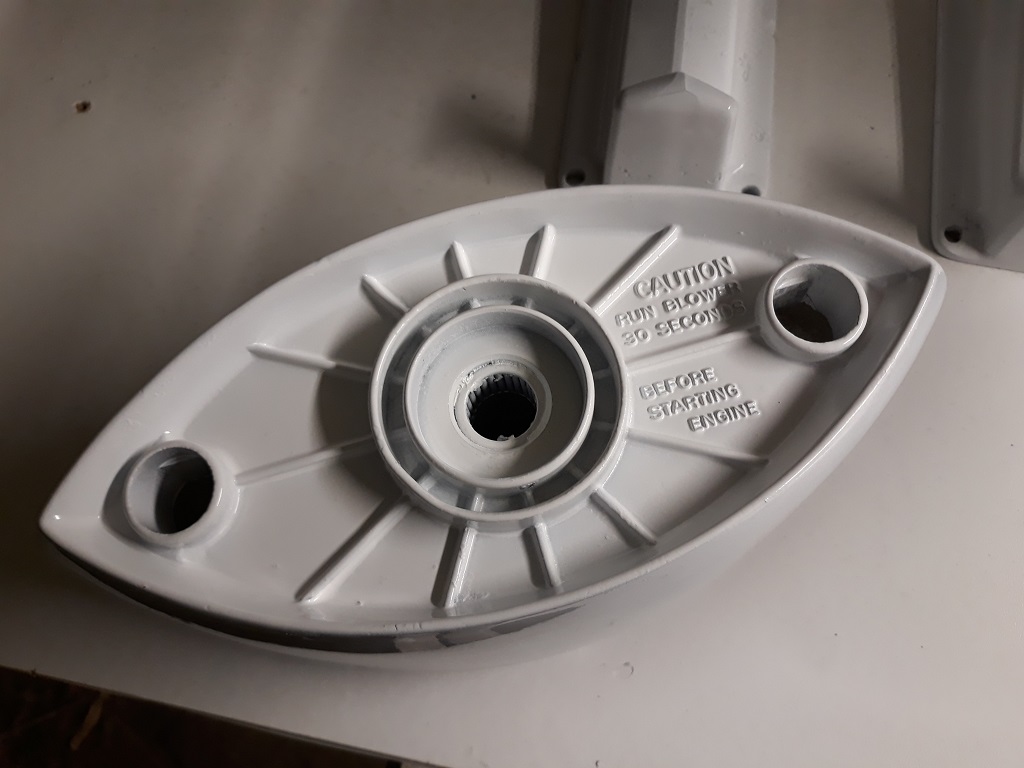

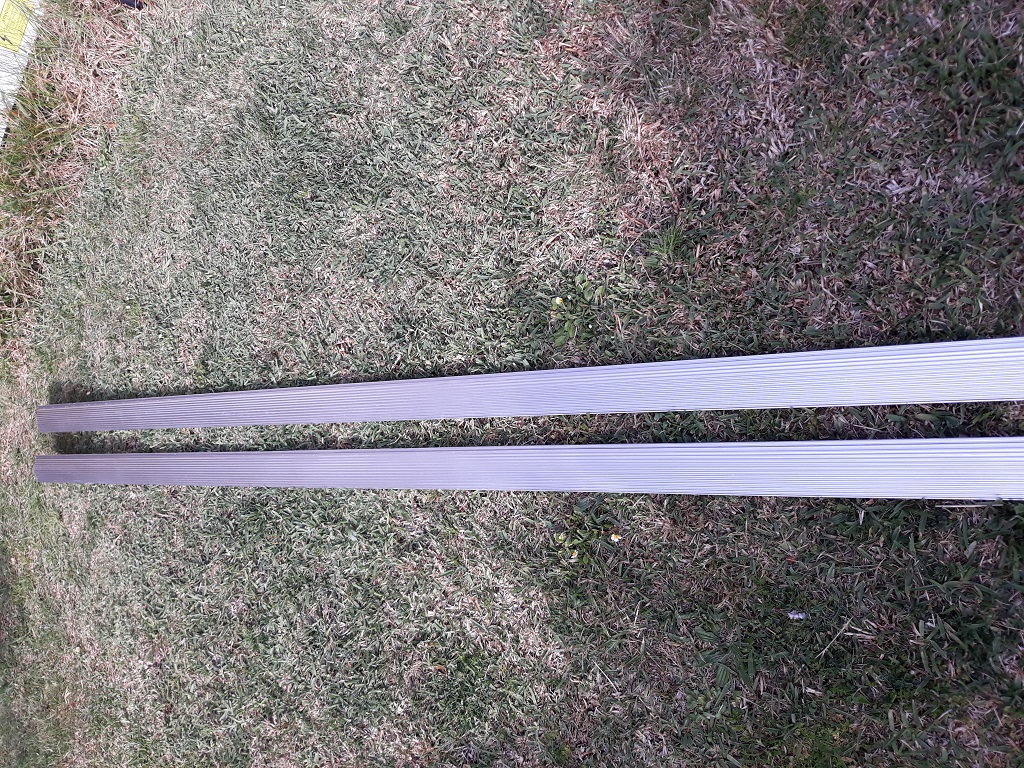

Just a few small painting jobs.....

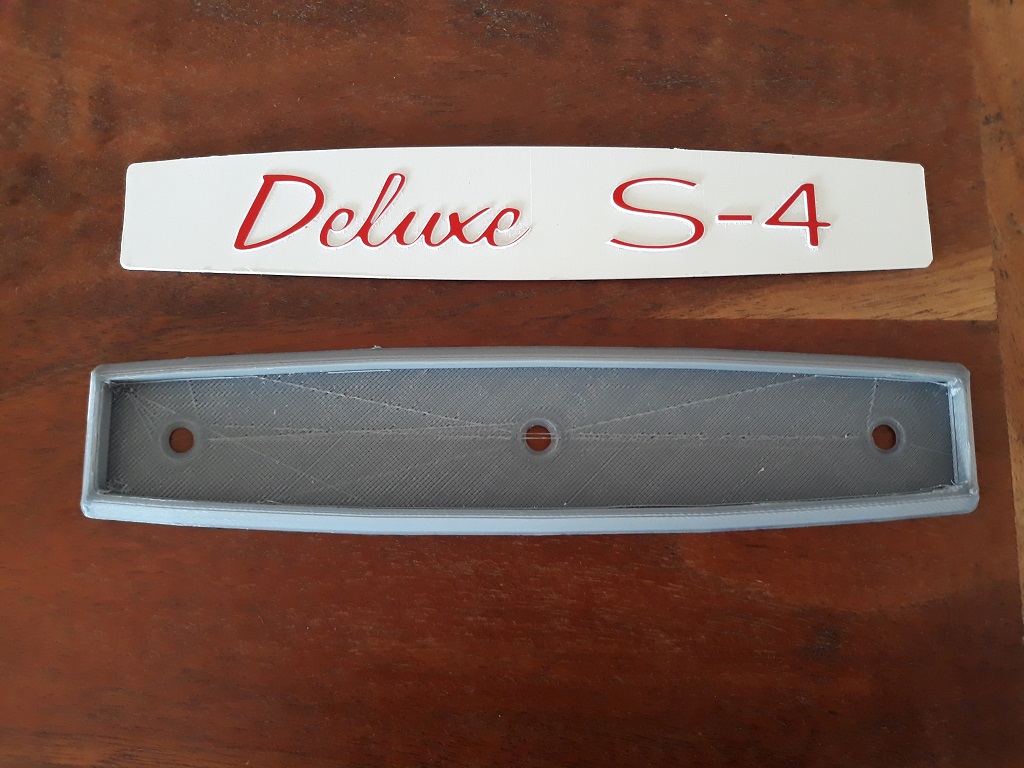

In the process of finishing. Made with a 3d printer by a friend. It must achieve the same with the acronym v6
I will see which one I put according to the engine I will install

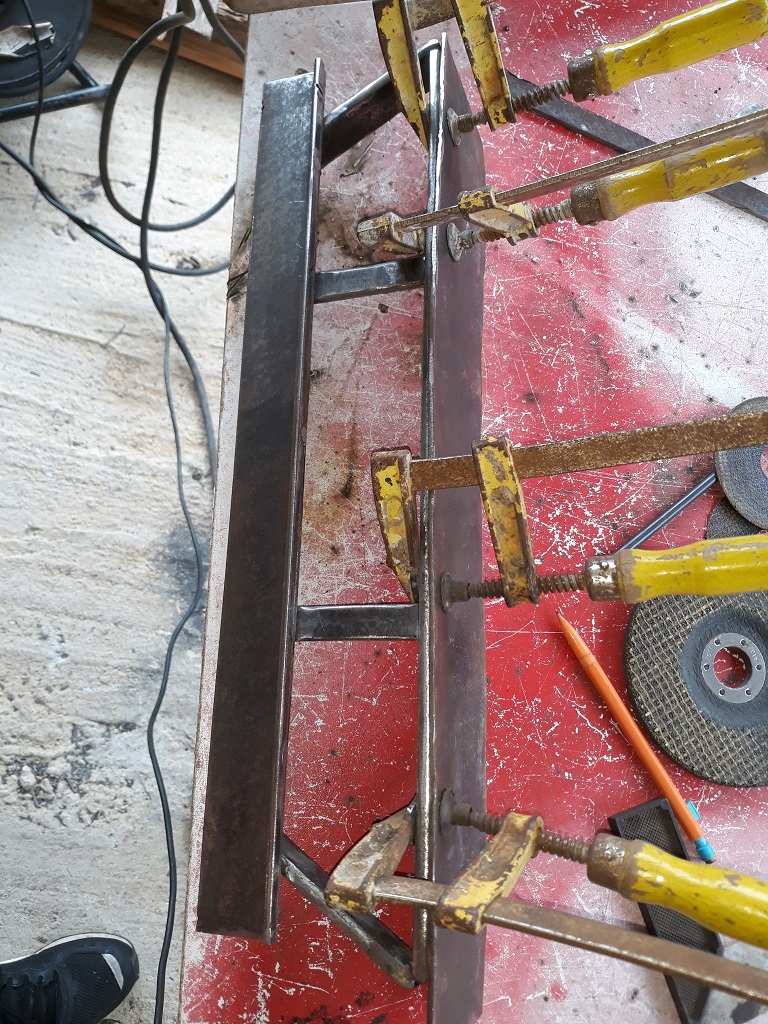

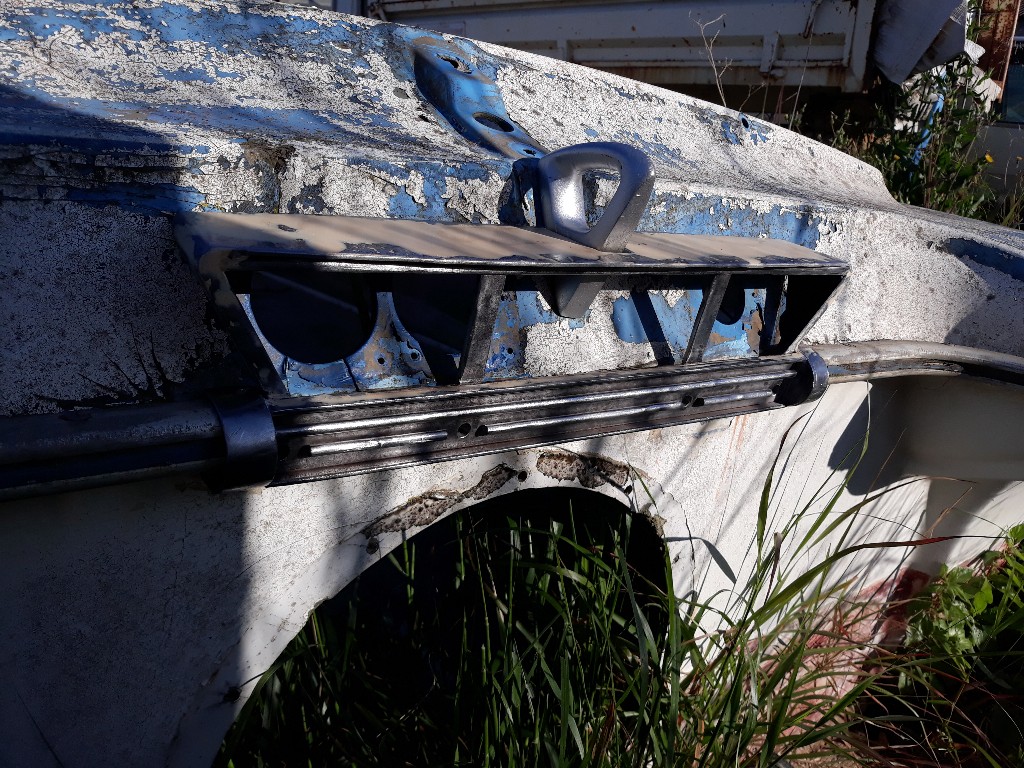

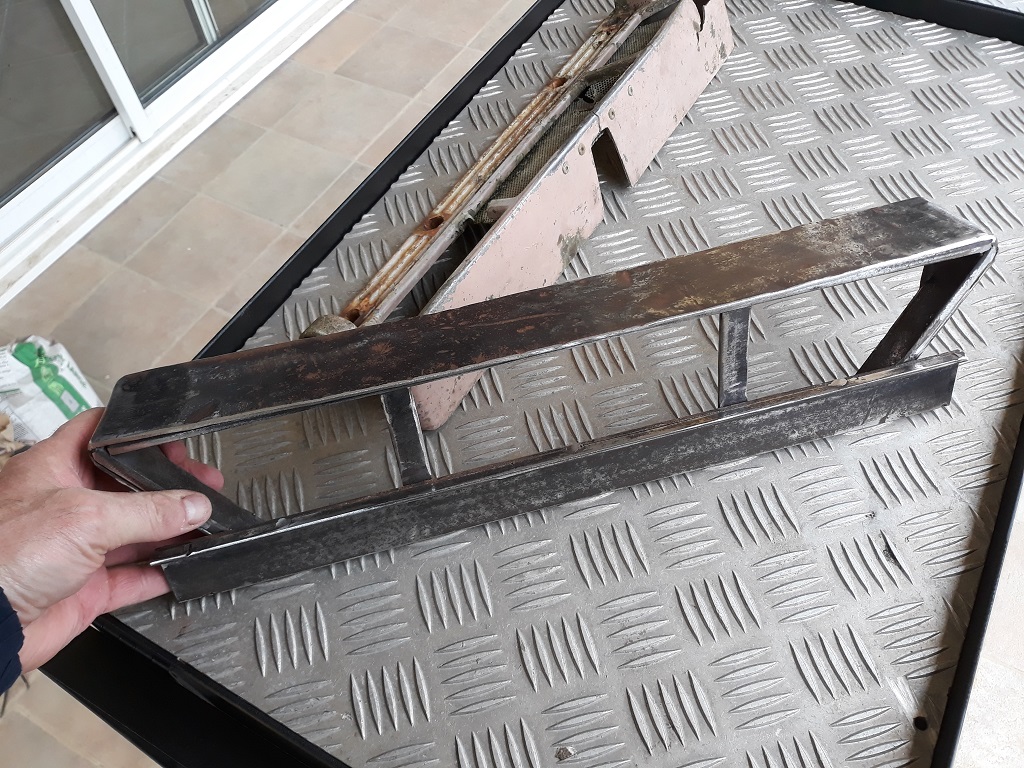

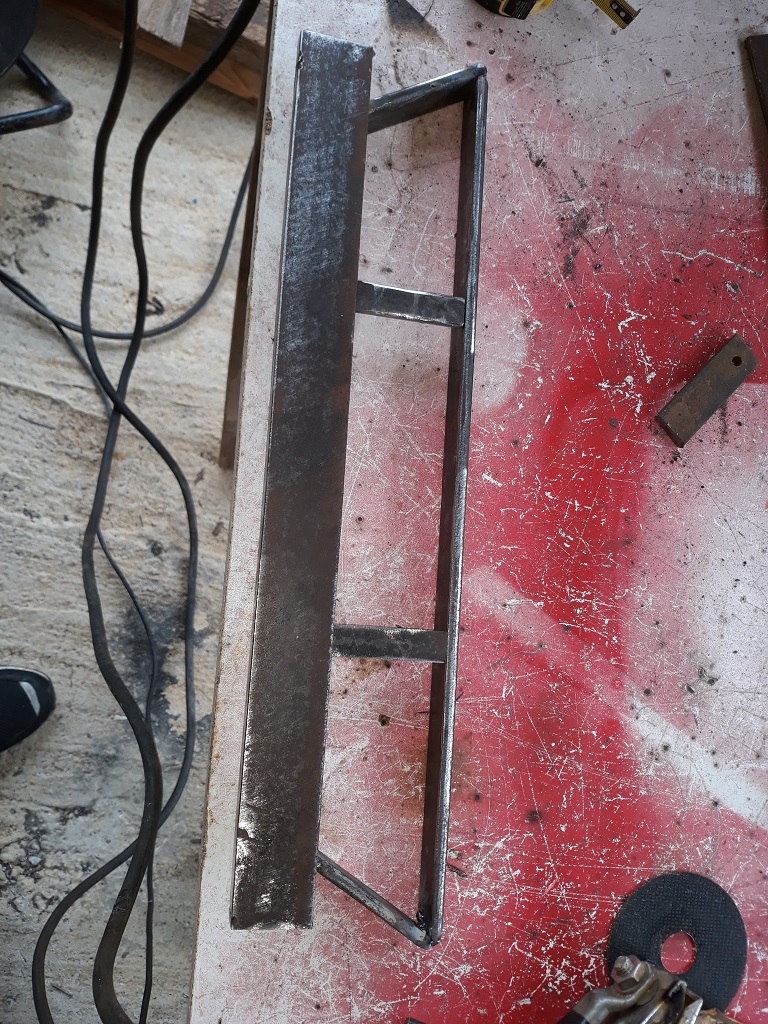

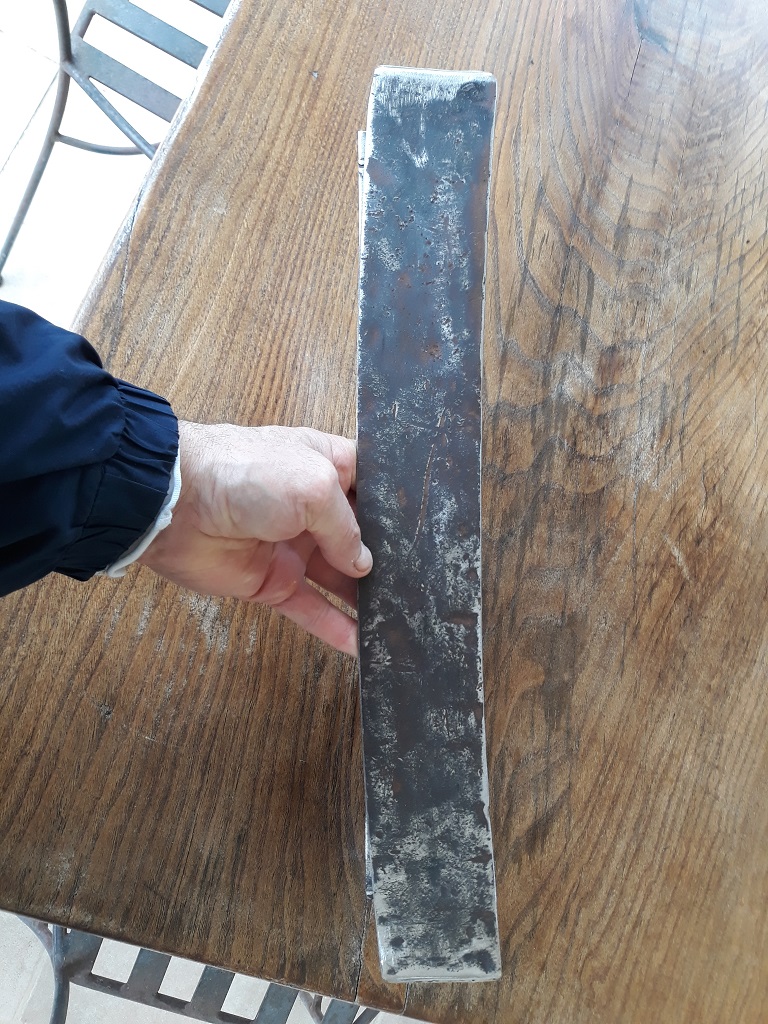

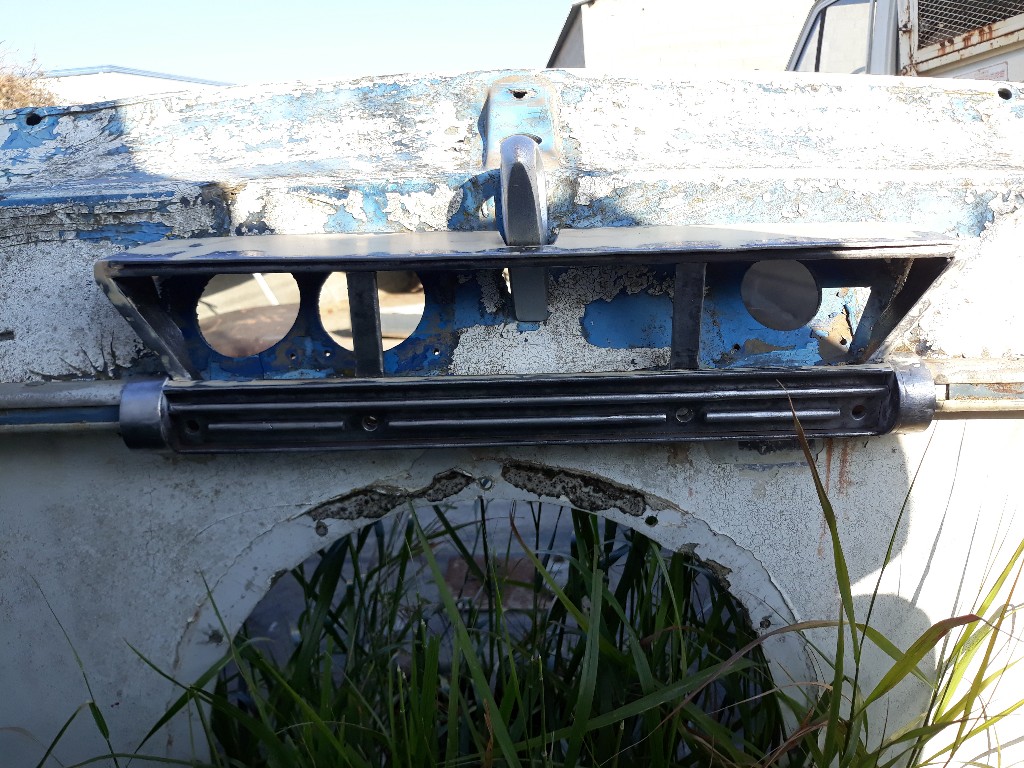

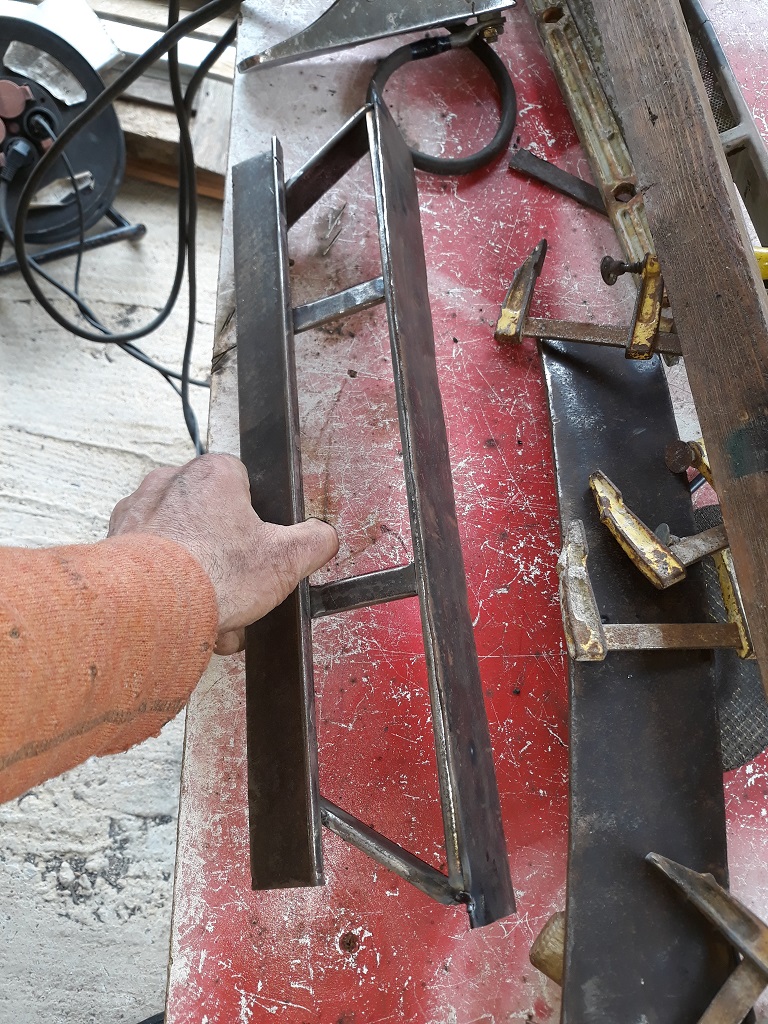

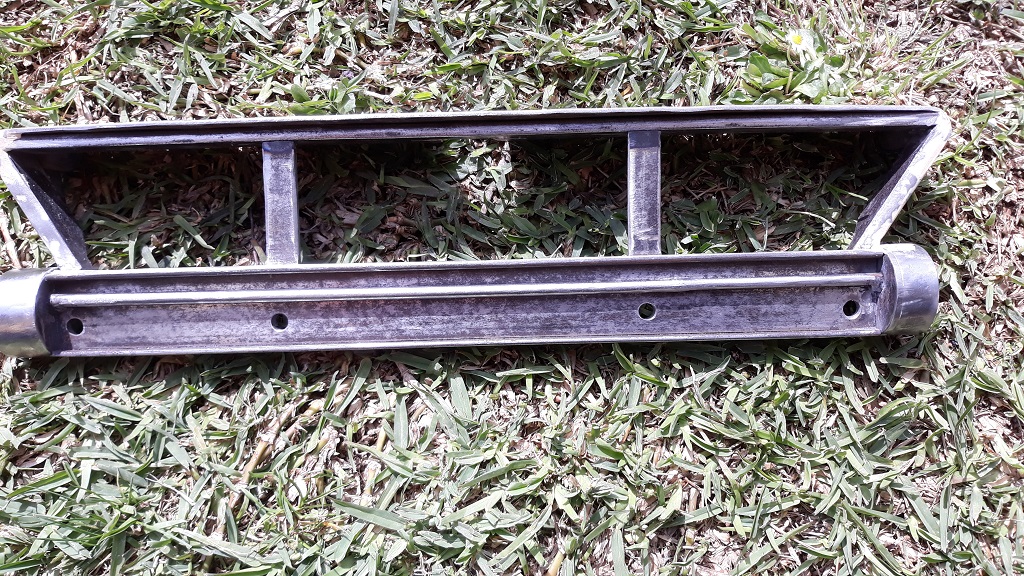

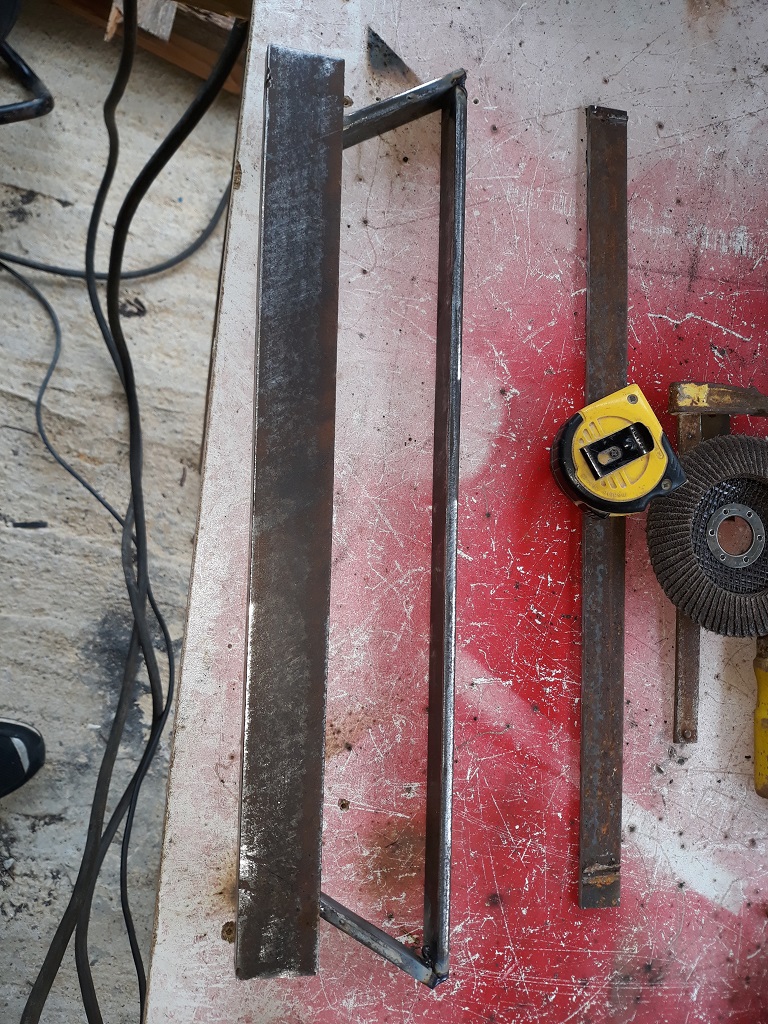

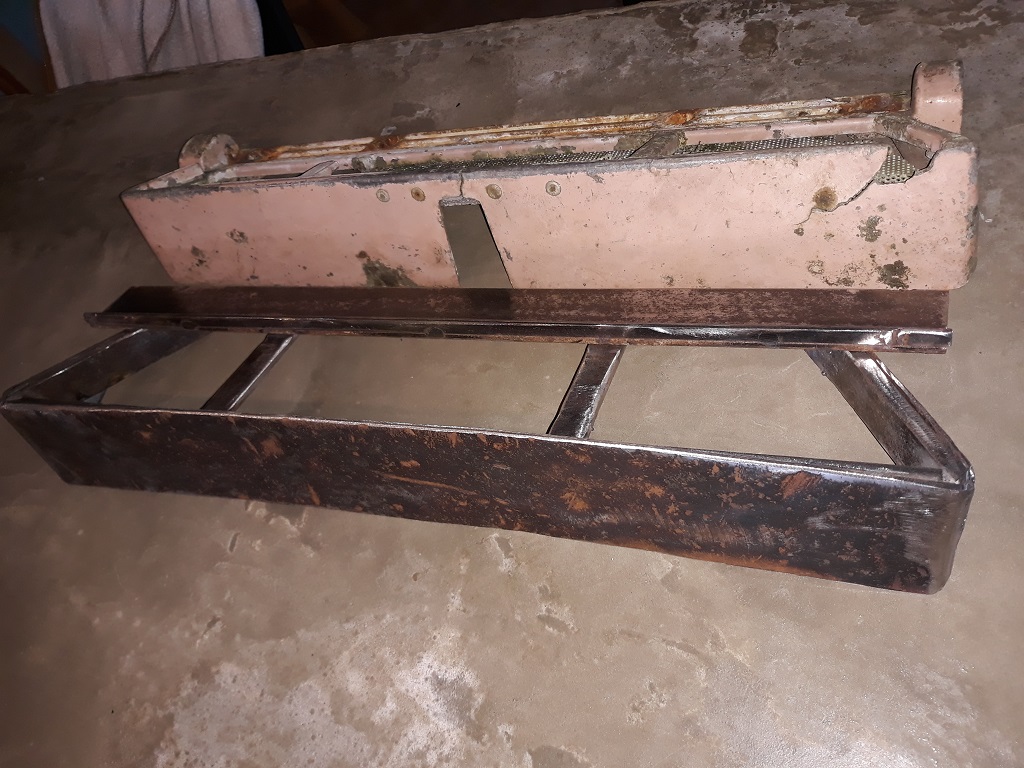

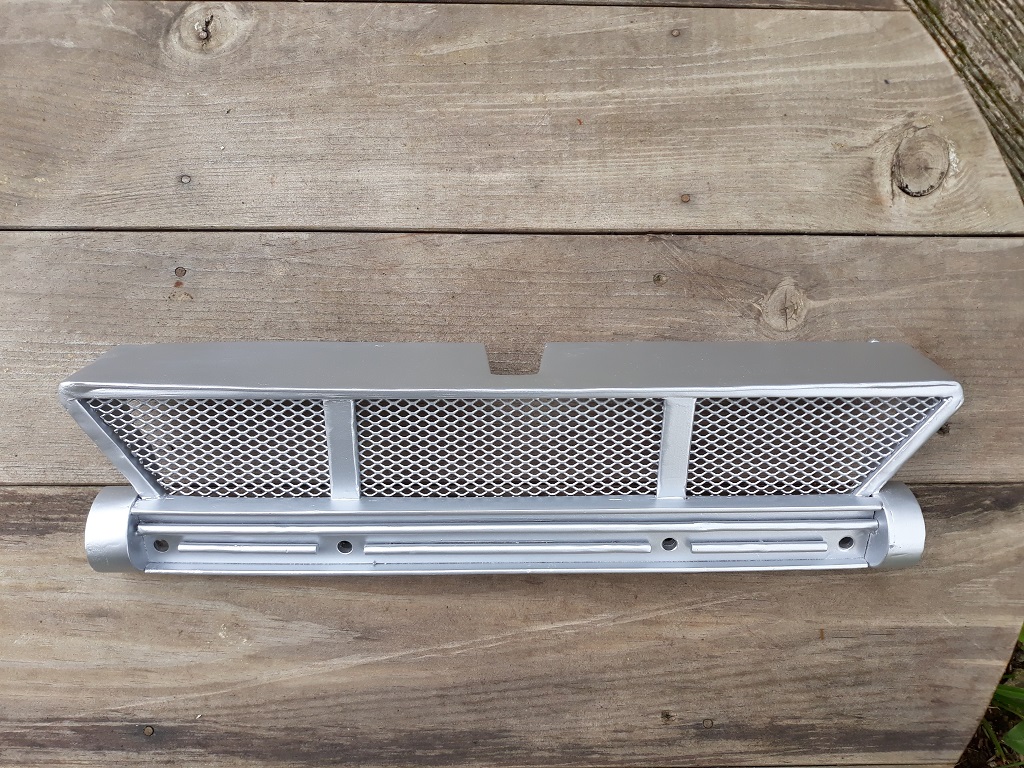

Having a little time right now I had fun with scrap metal to reproduce the back part of my deluxe. A friend who picked up an old deluxe gave me his that is very damaged so I can have a model. Now i have to see if it fits well on the hull. Not having it at home I will see this weekend. There are still some finishes to be done but it looks pretty good !

Nice... that is some serious talent and hard work. Pretty cool!

Dr.Go! wrote: Nice... that is some serious talent and hard work. Pretty cool!

Thanks

seattle.craigslist.org/kit/boa/d/port-orchard-classic-vintage-1966/7302736203.html
a similar one for sale in the PNW
doc

Tanks for your message but i live in France !

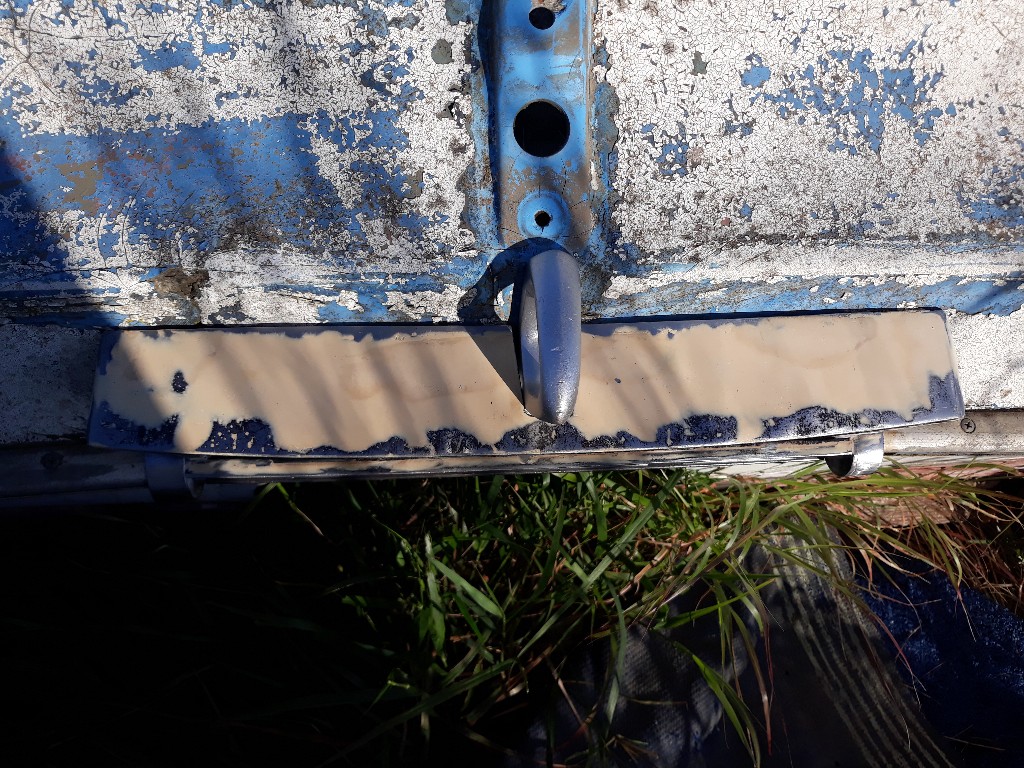

I went to try the part on the hull, and it fits well. remains to finish !

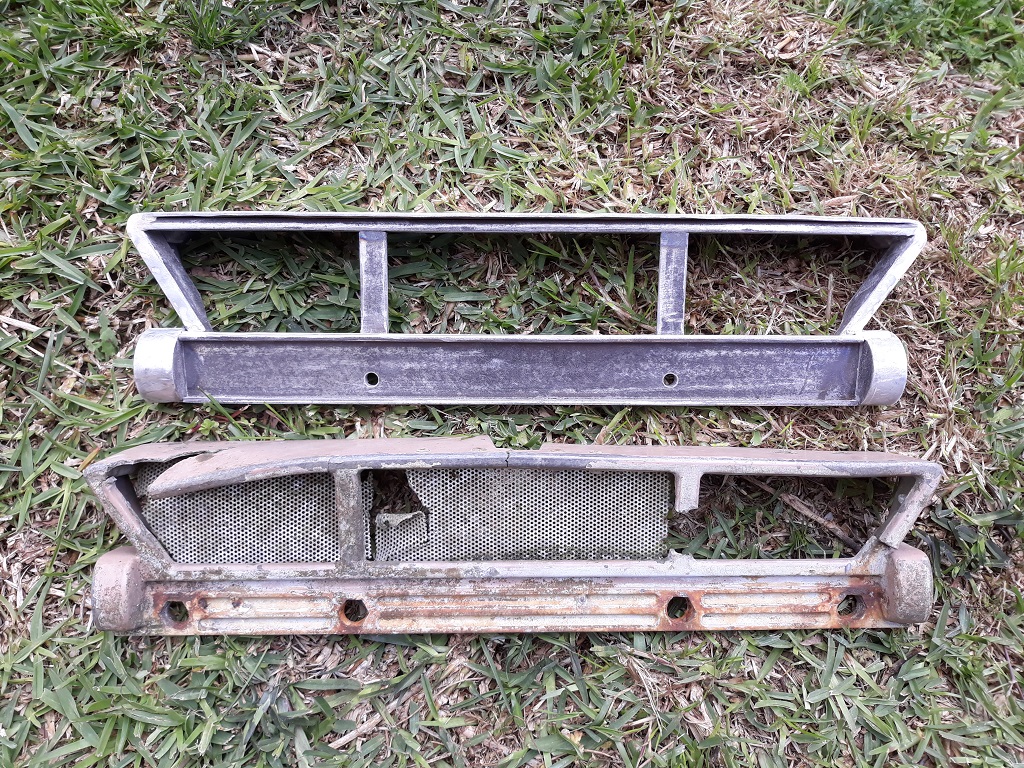

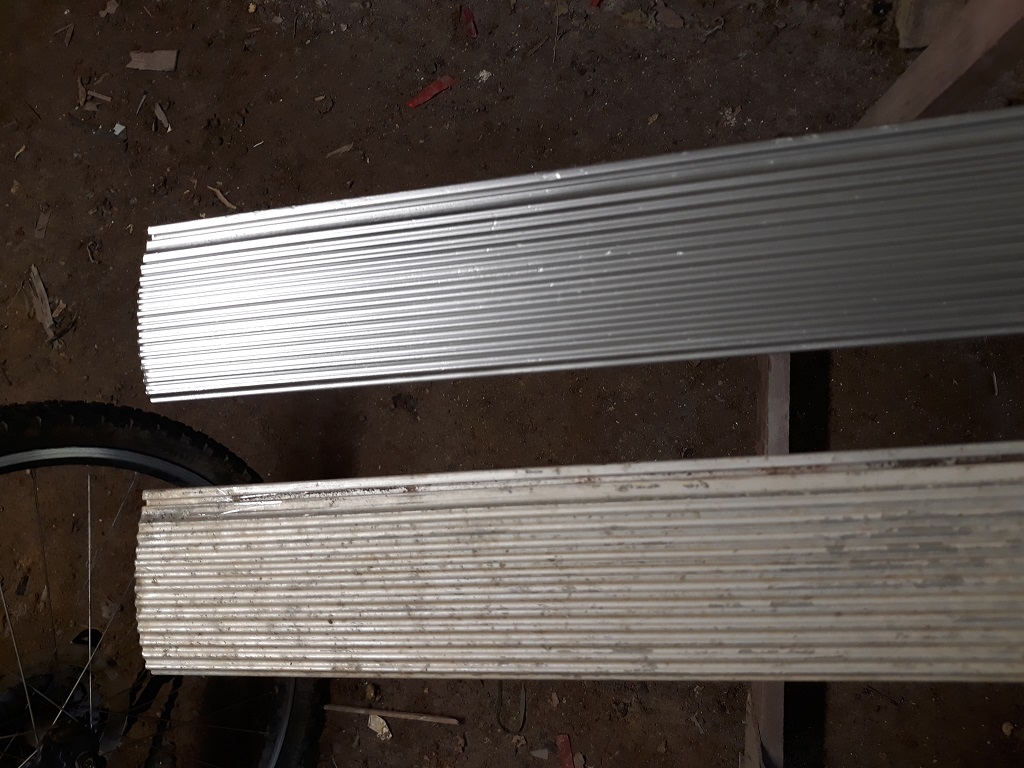

Restoration of the plates of the small interior shelves....

Before......





After....

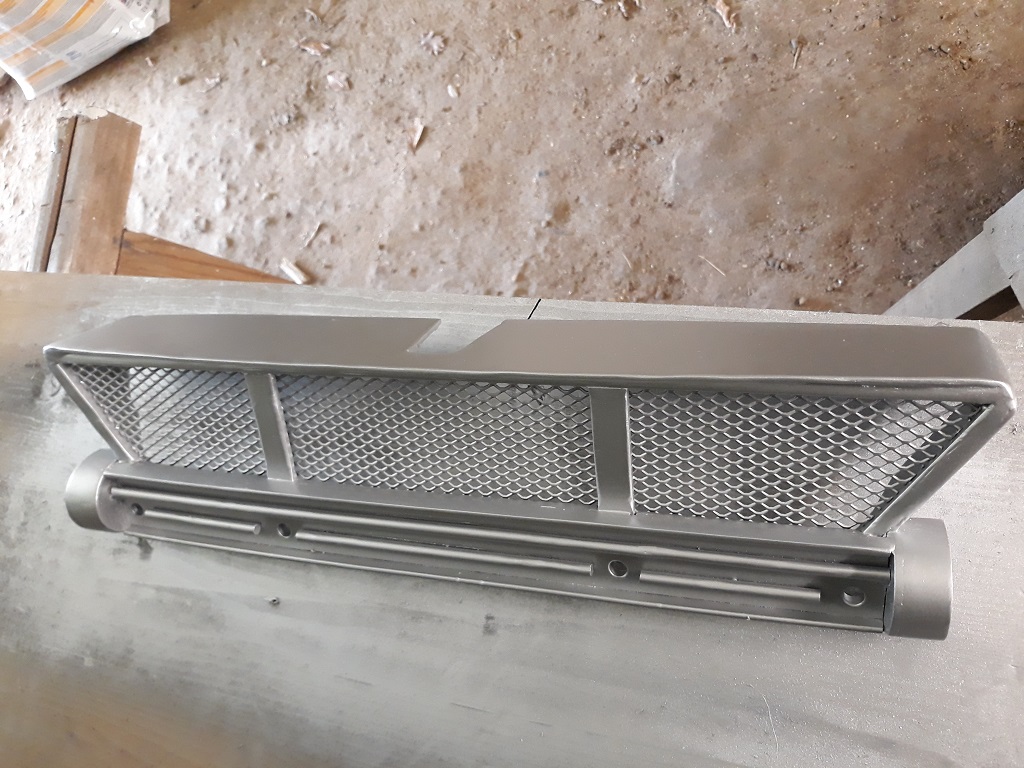

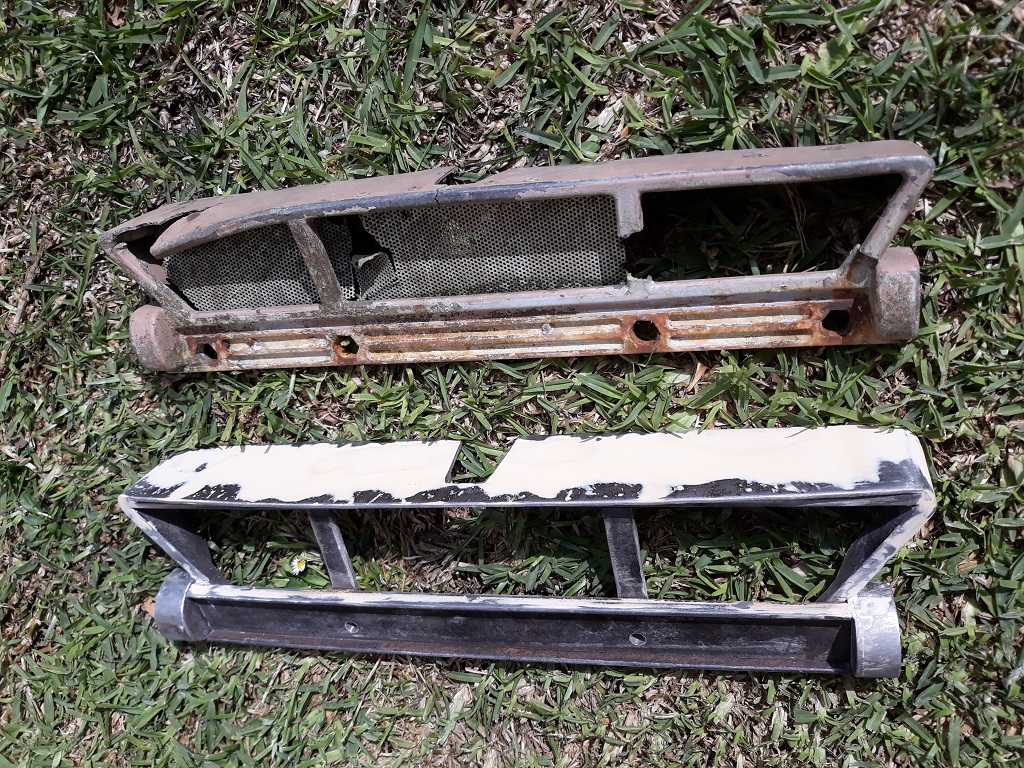

Back part completed. Unfortunately not having for the moment the possibility to work on the hull I continue the restoration of small interior parts....

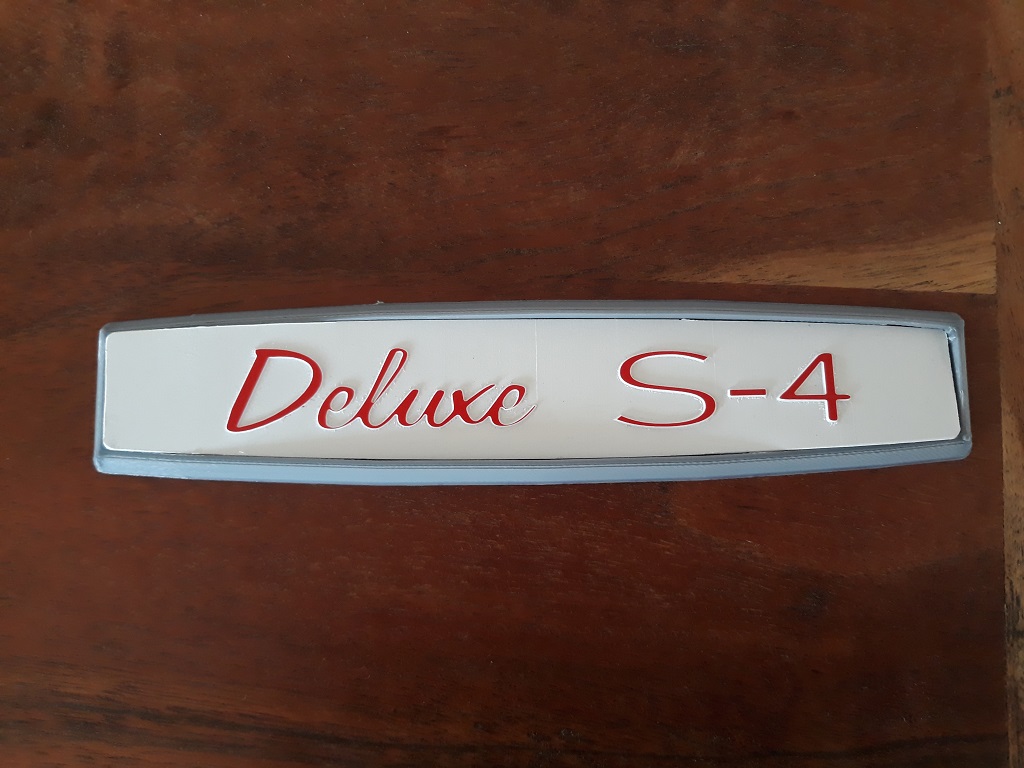

A little extra thing in fact !

Excellent, came out great!!!

Bob

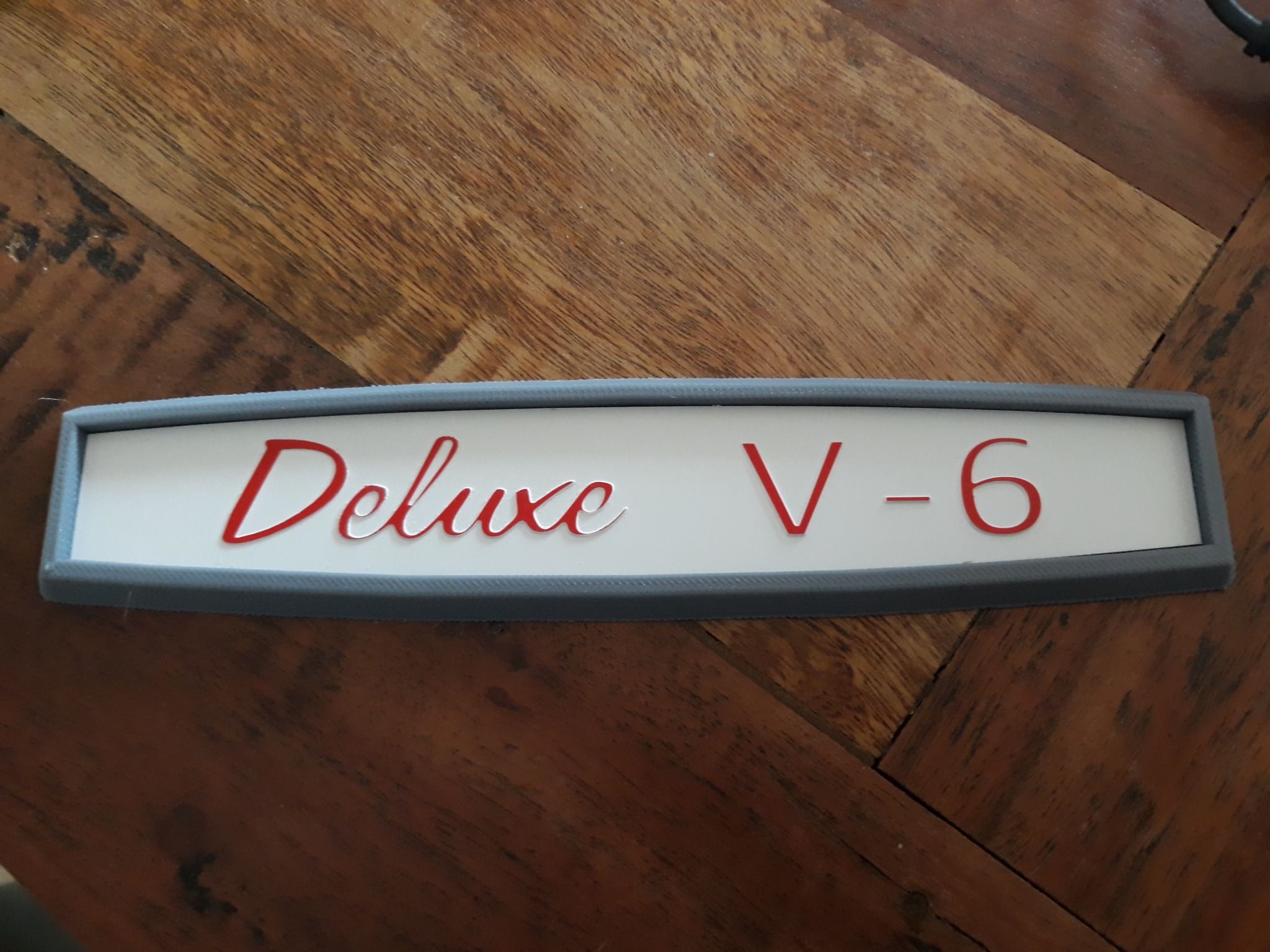

Made with 3 d printer. I was inspired by this one. I will achieve the same with V6

Waterwings wrote: Excellent, came out great!!!

Bob

Yes not bad, thank you;)

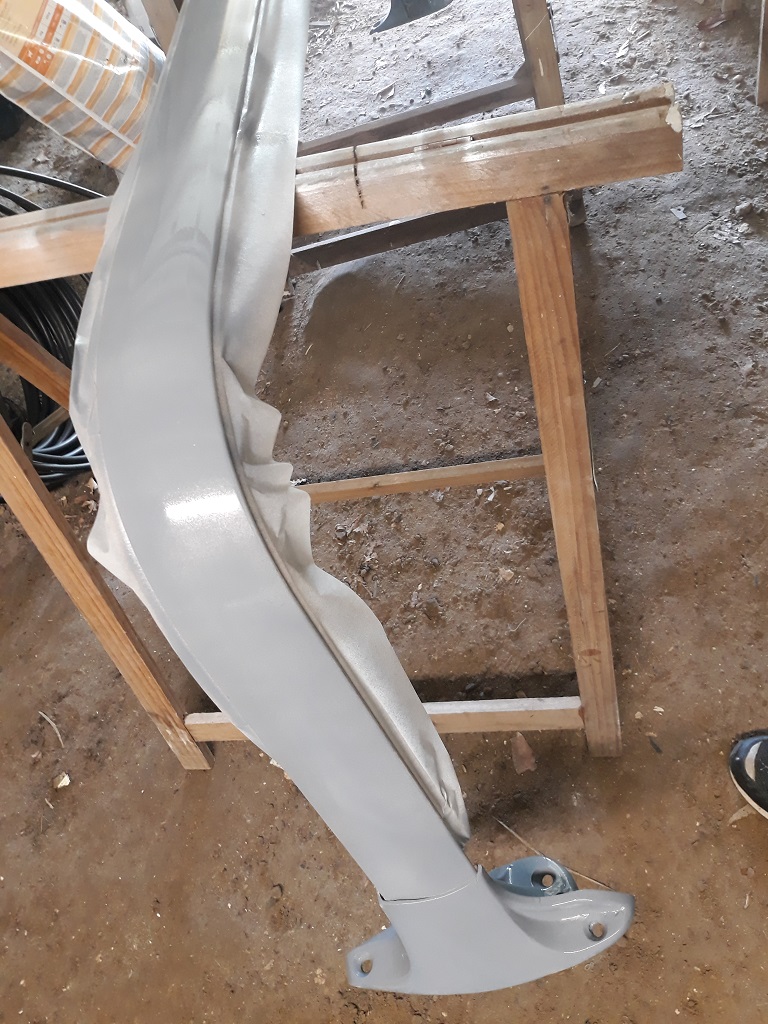

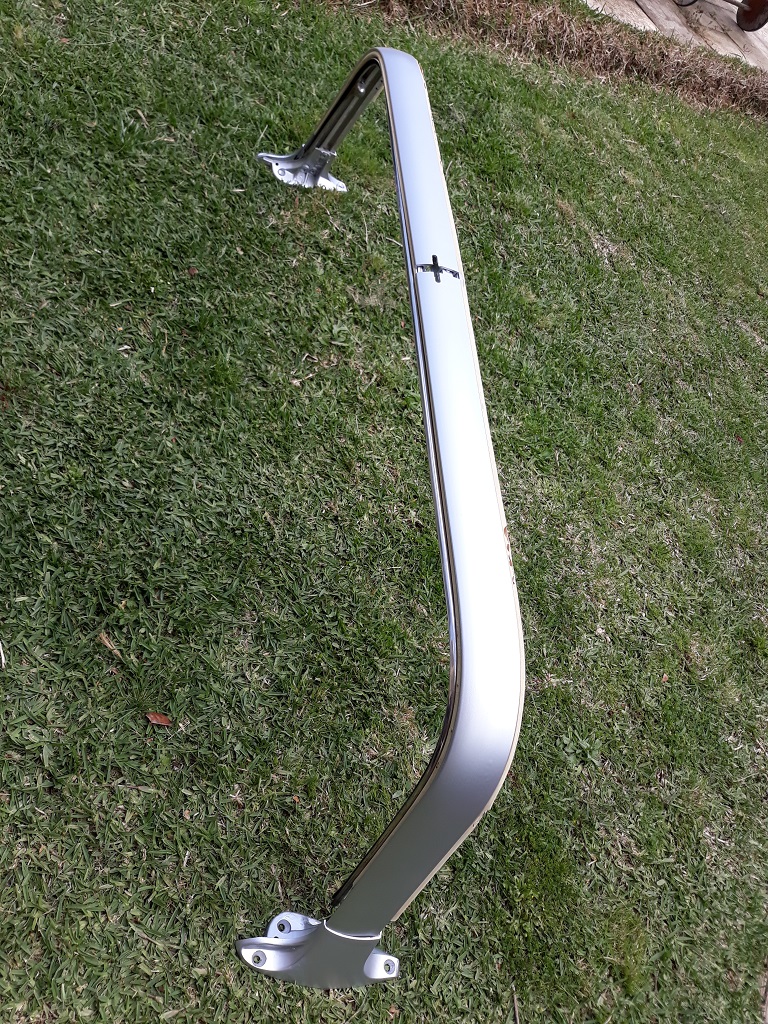

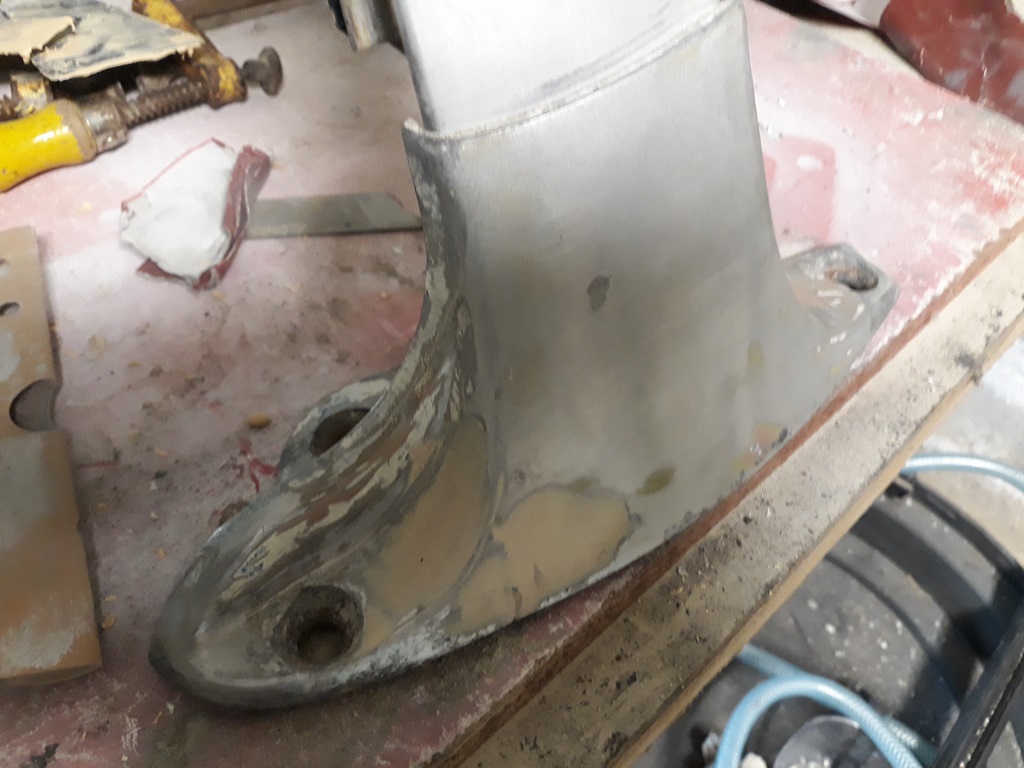

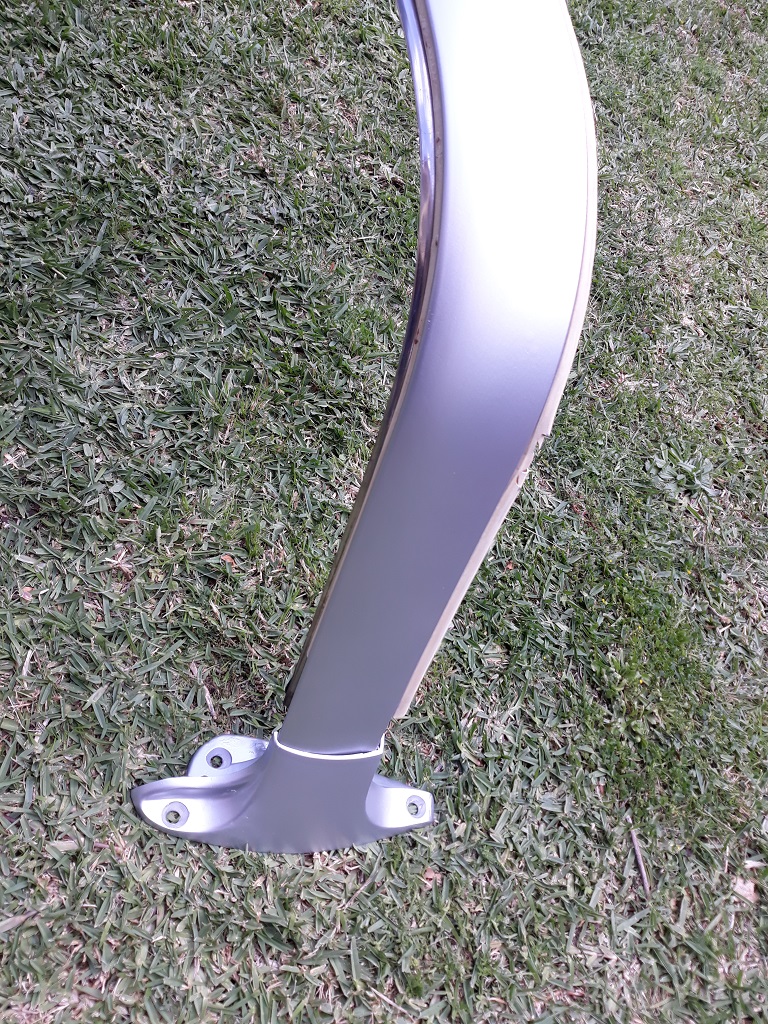

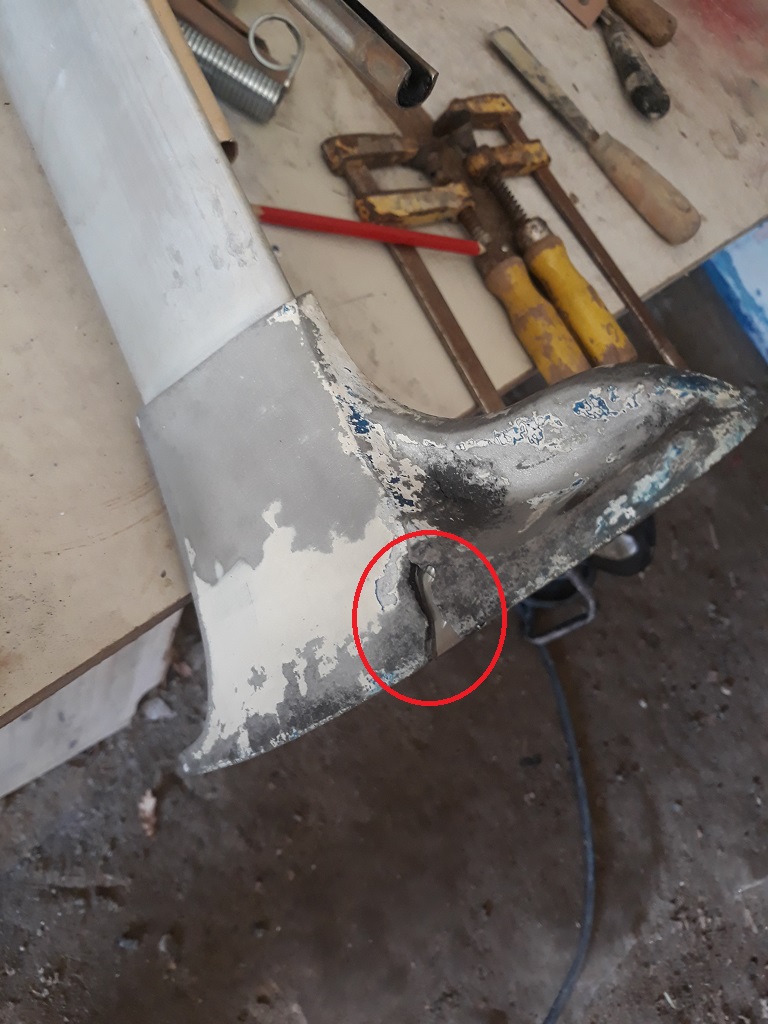

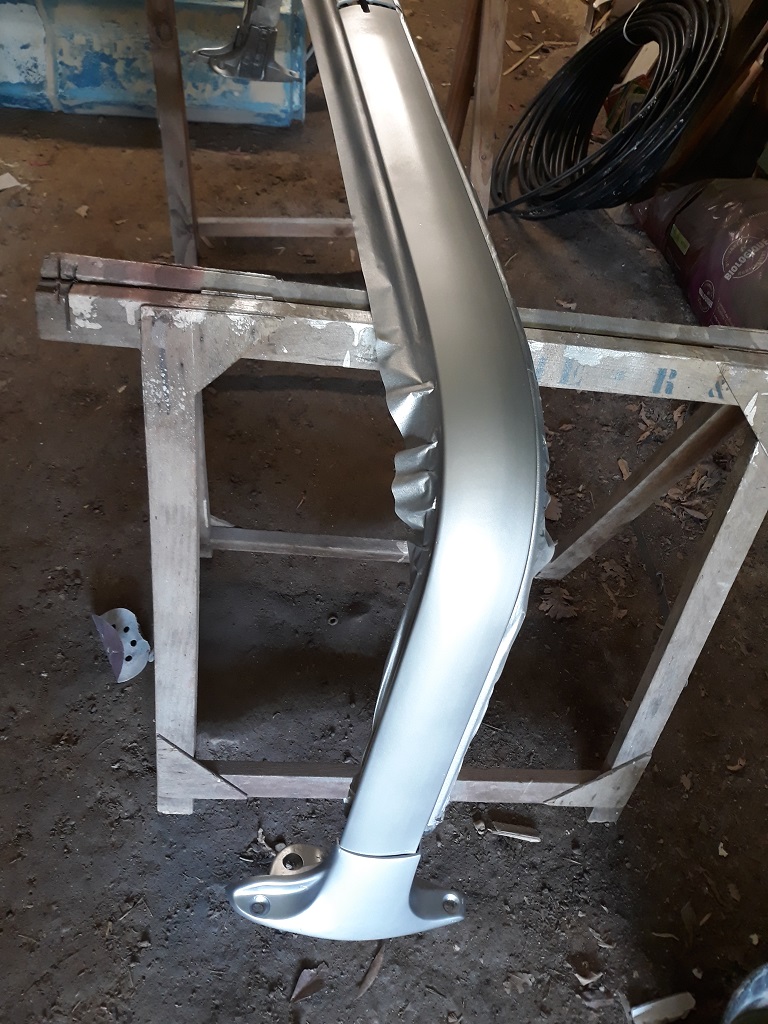

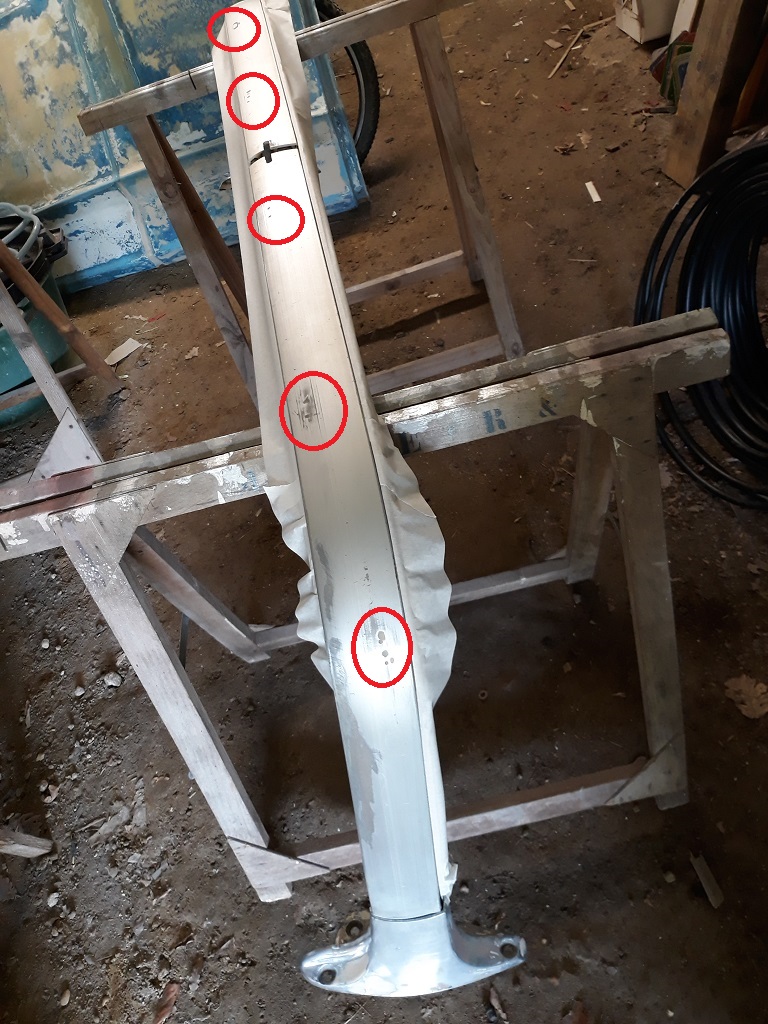

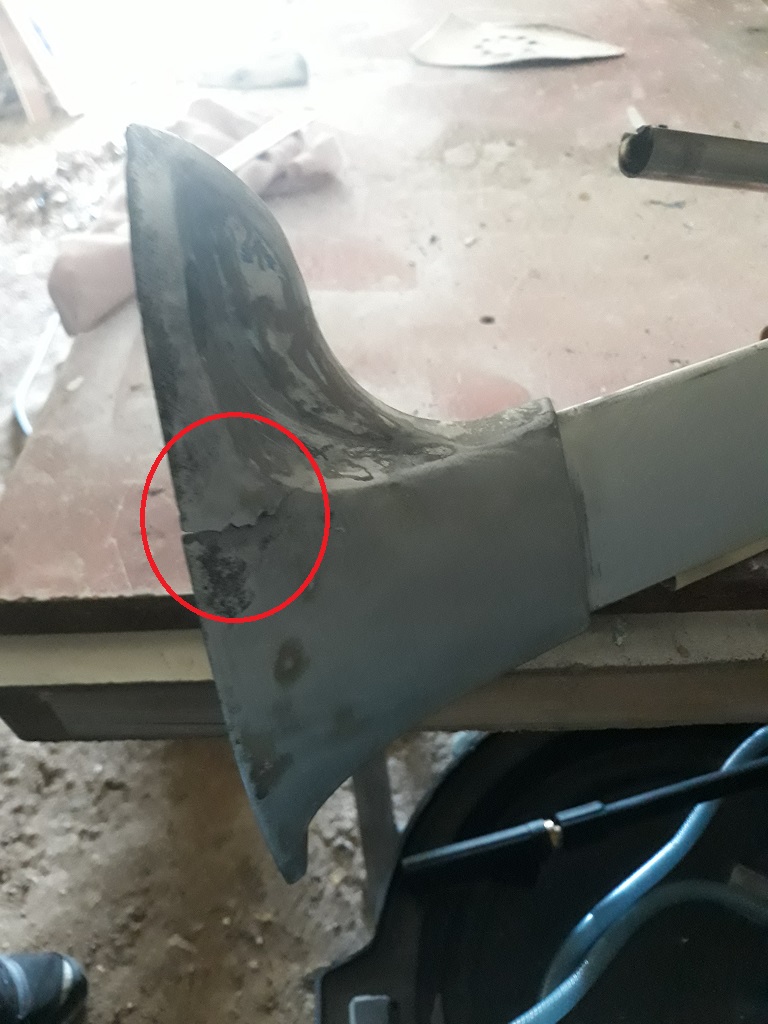

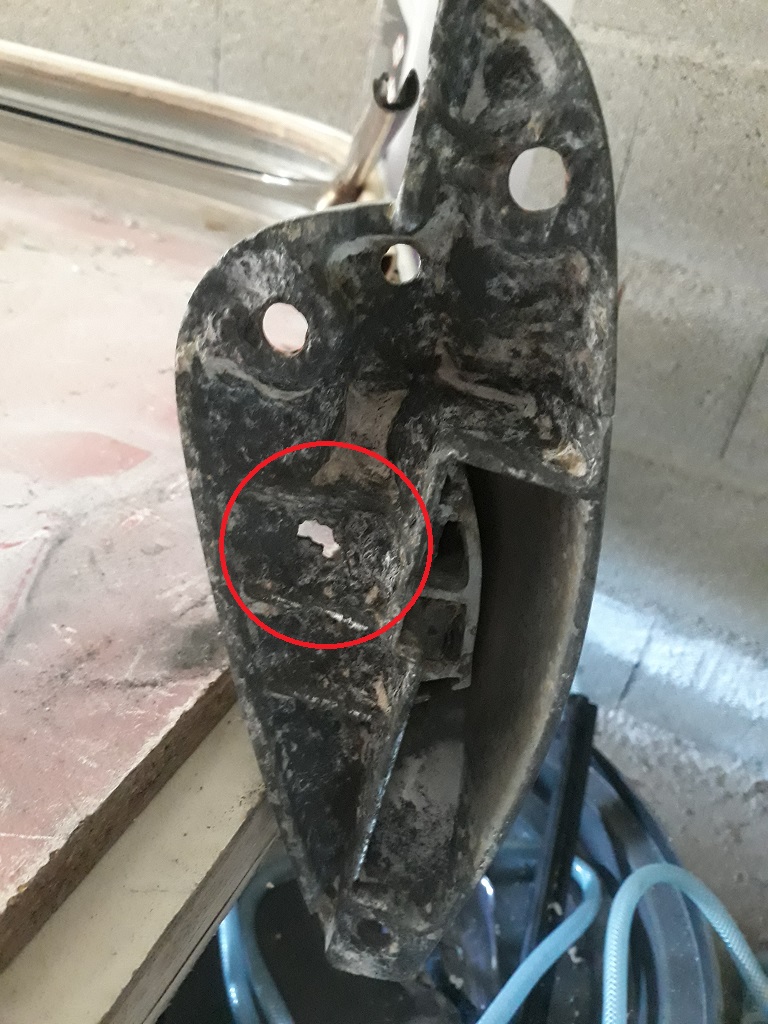

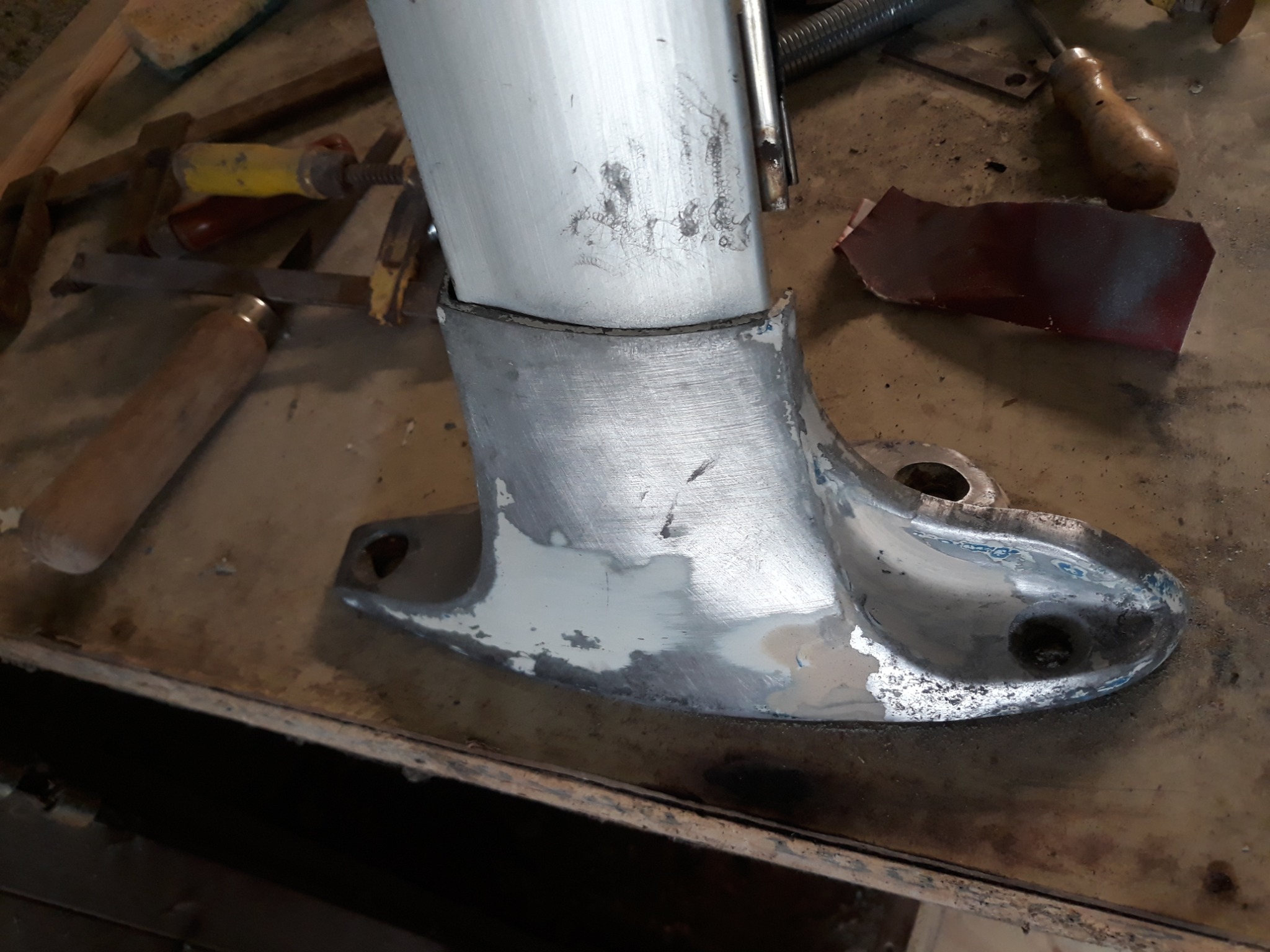

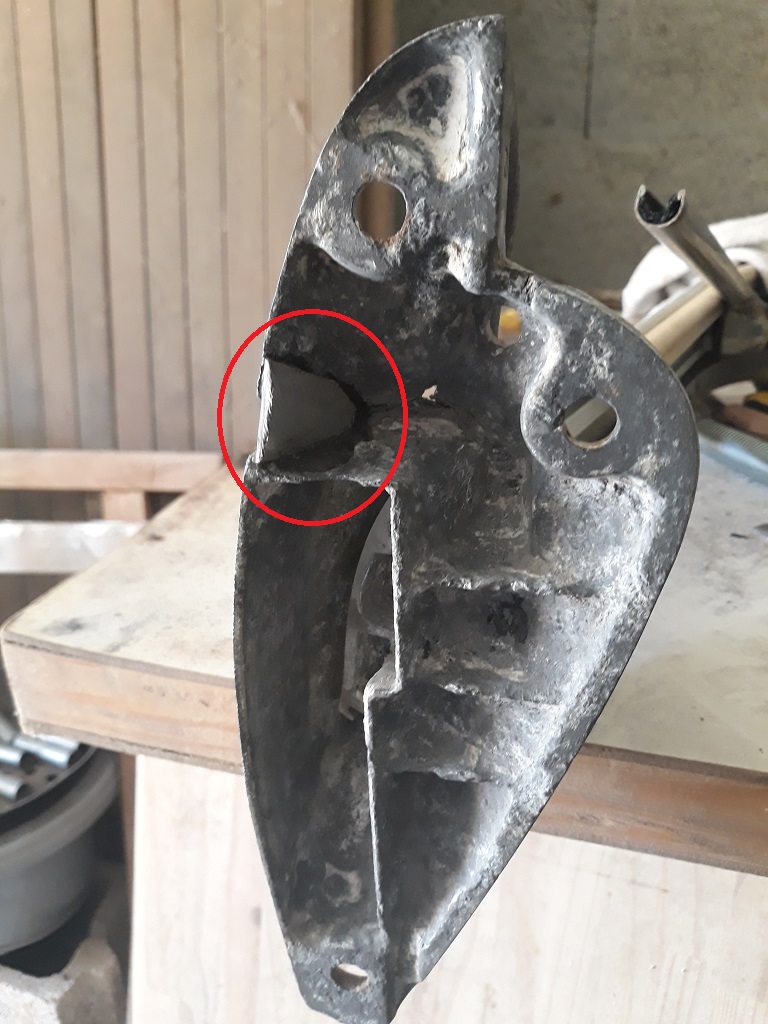

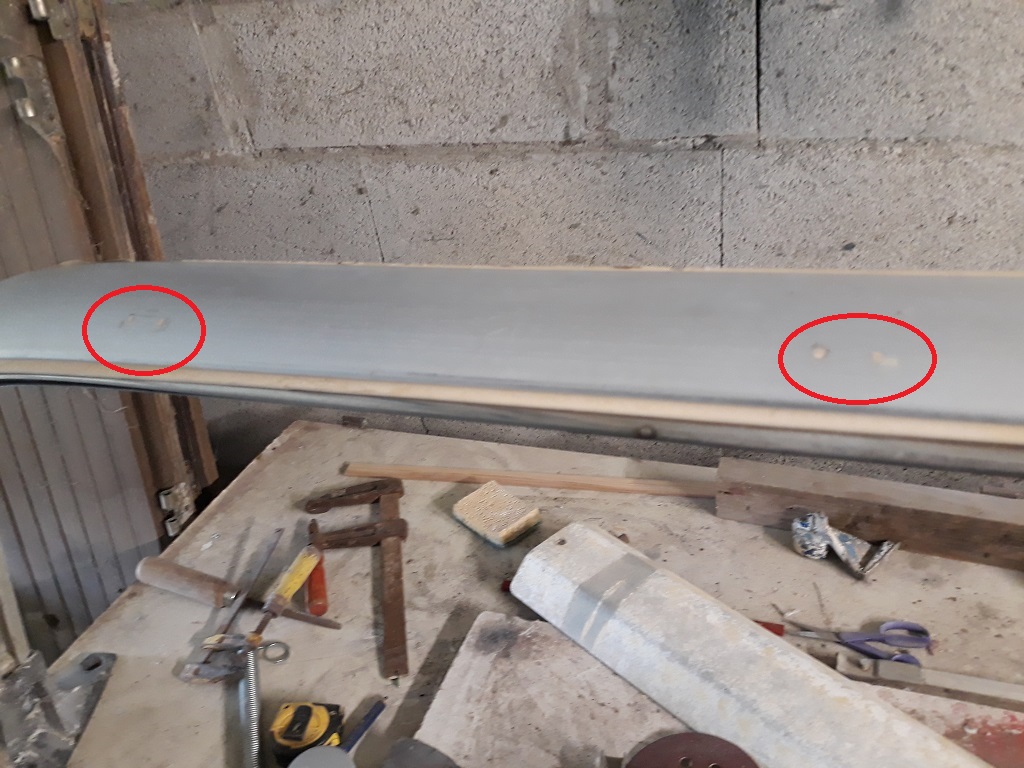

Repairof the windshield pillar. Installation of small plates glued with epoxy to reinforce the breaks. Filling of the holes, coating afterwards and painting.

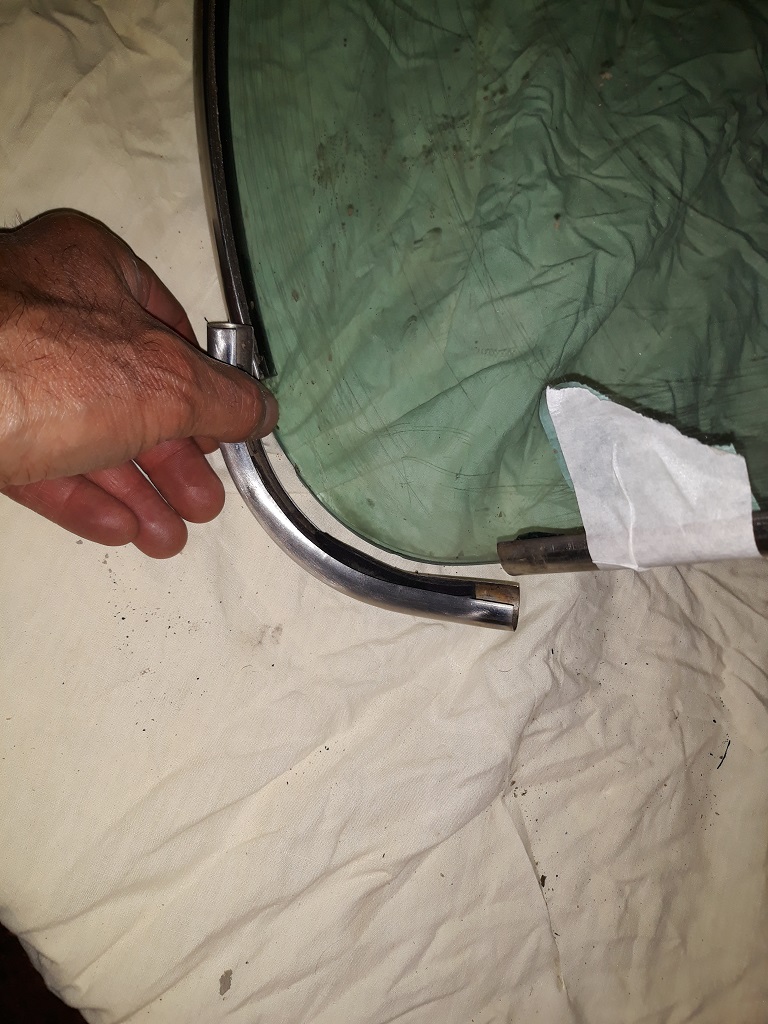

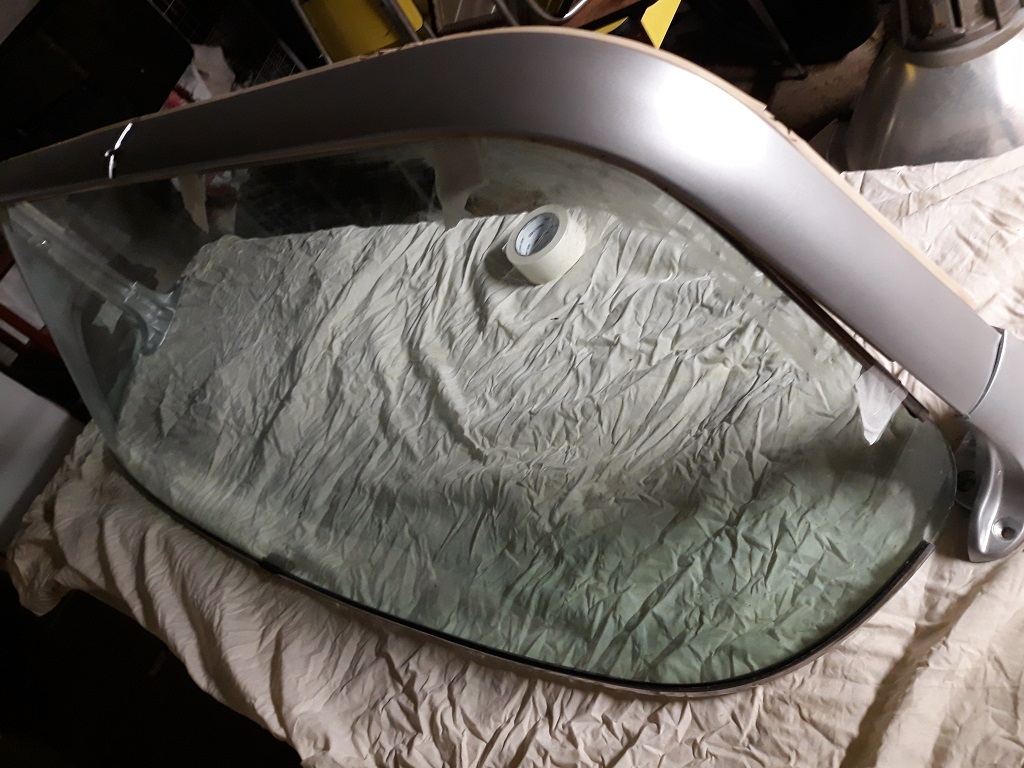

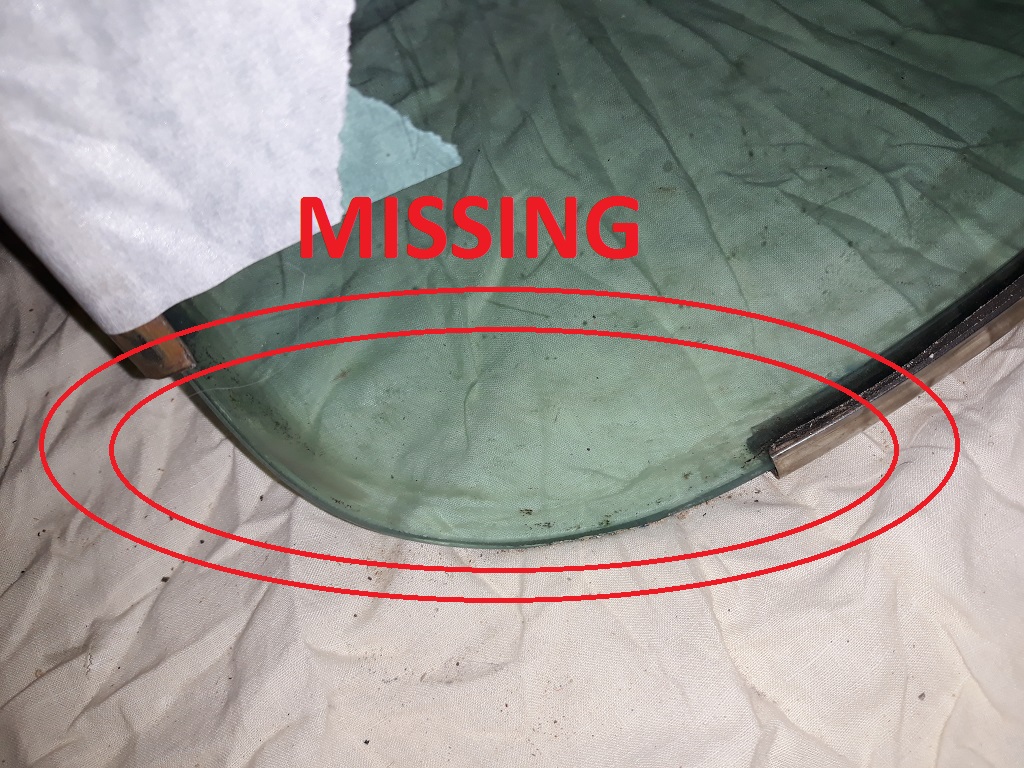

Glass adjustment. I'm missing a metal angle, if anyone has one to help me out







This is the right that I miss

V6 version !

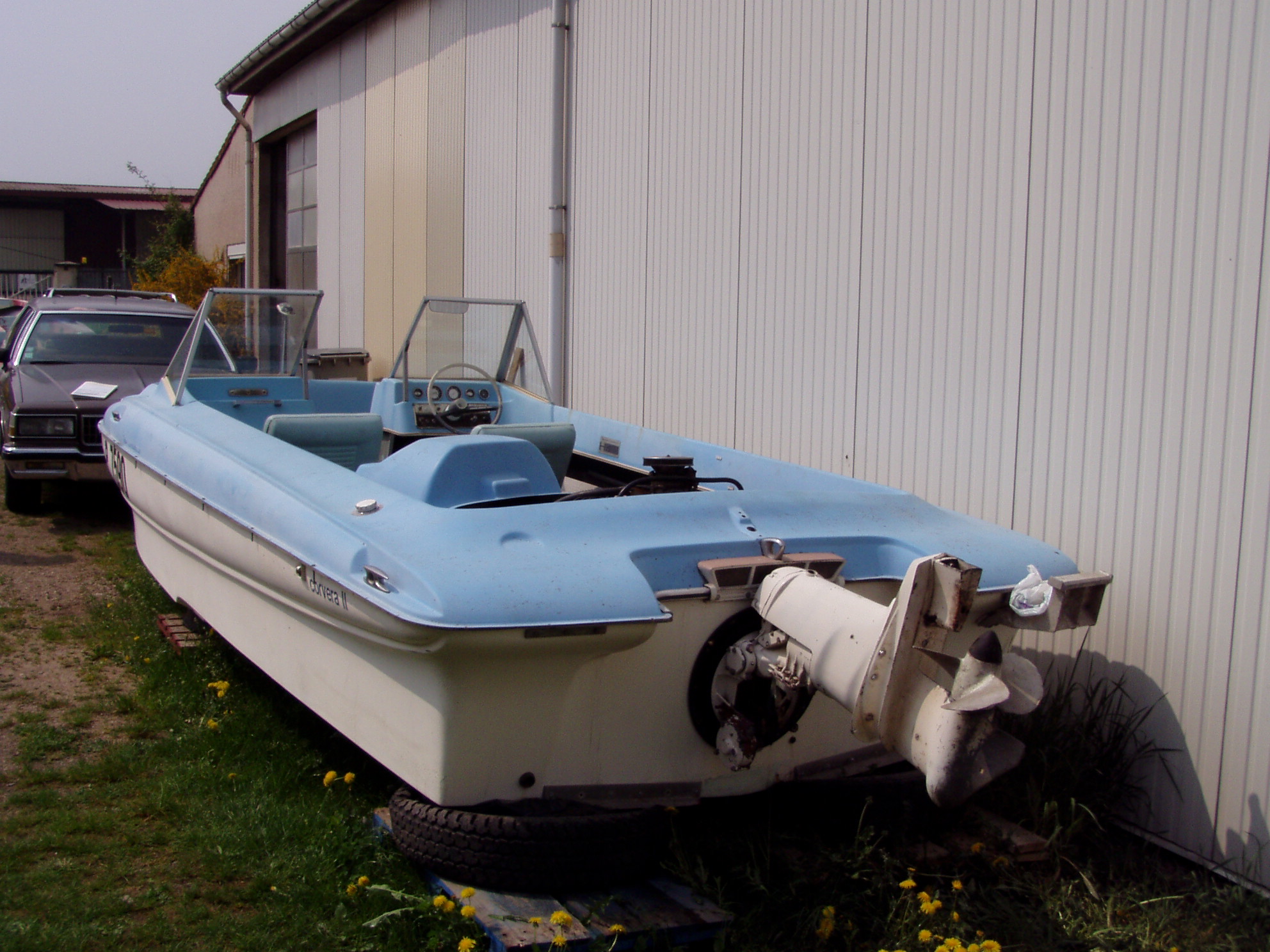

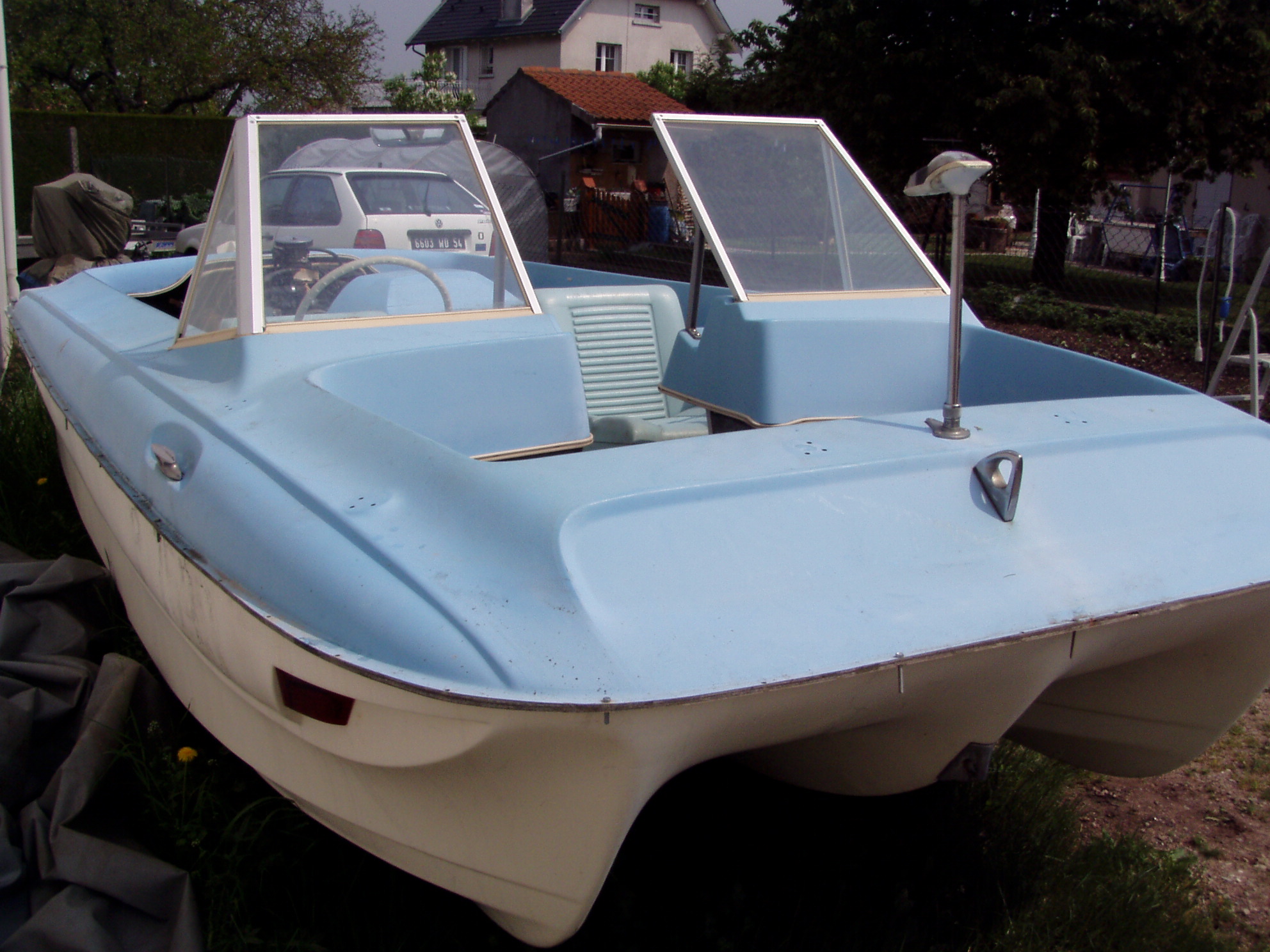

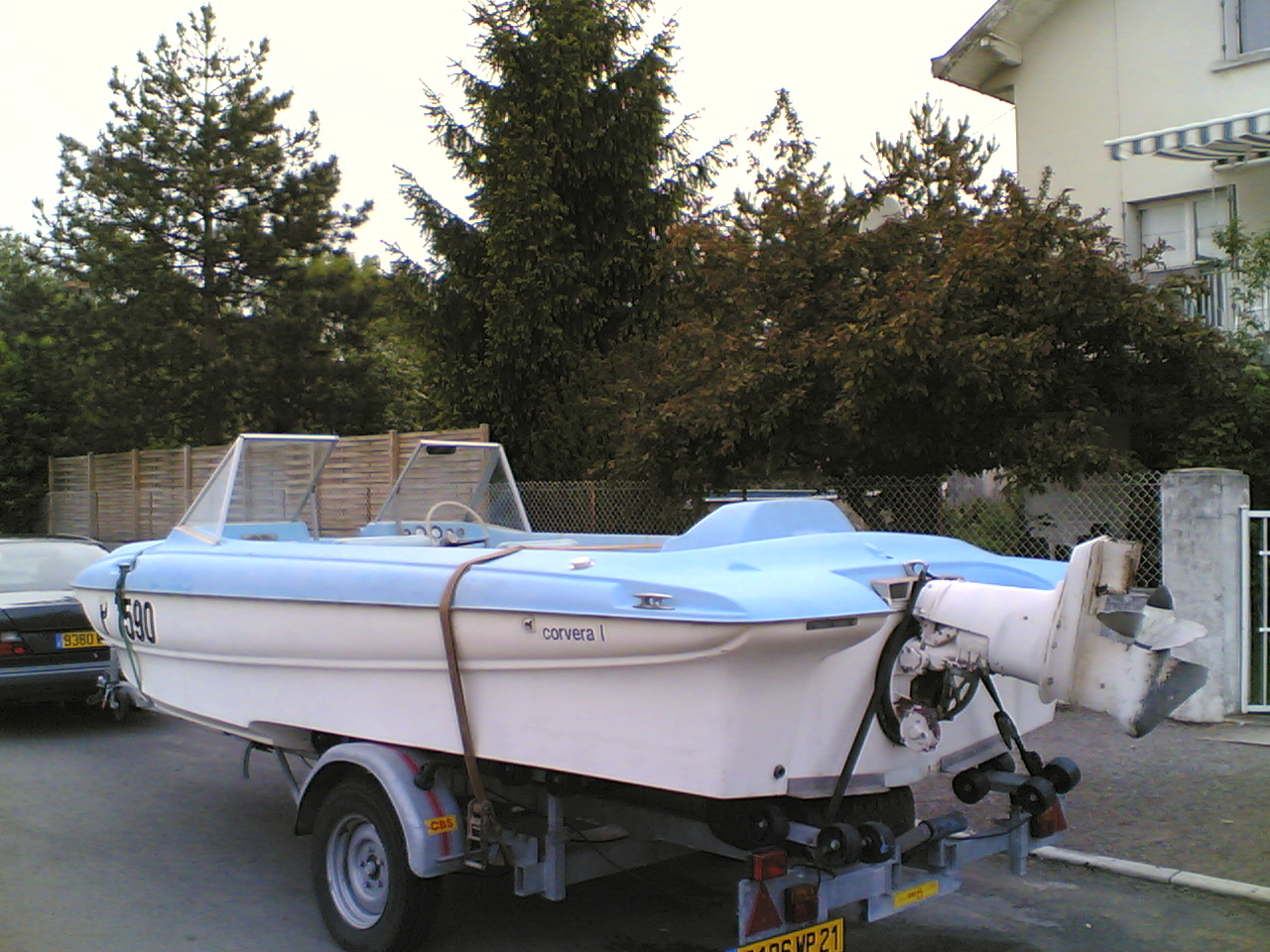

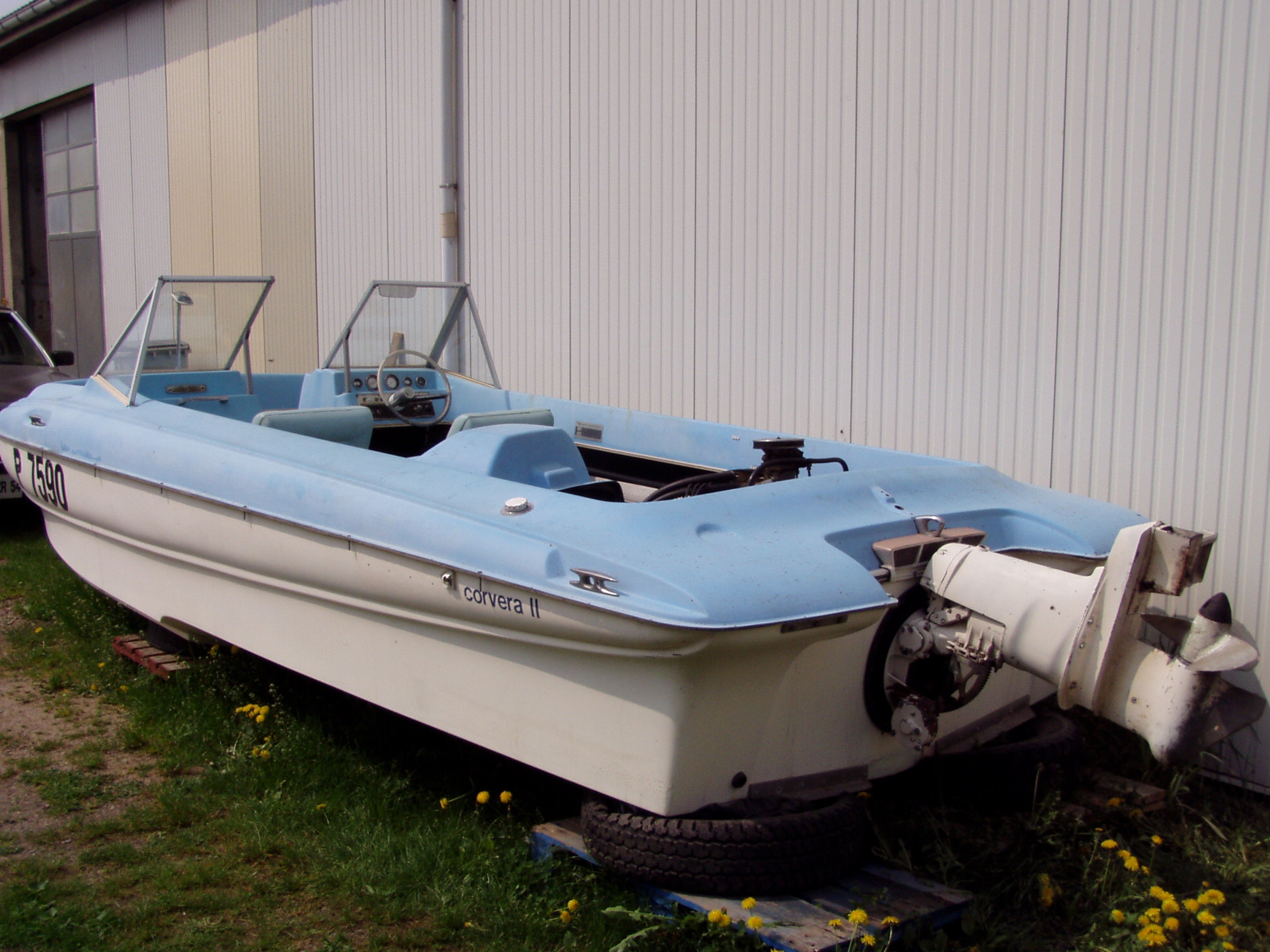

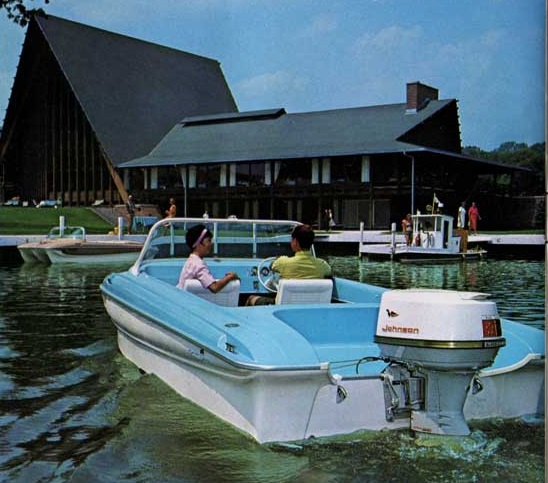

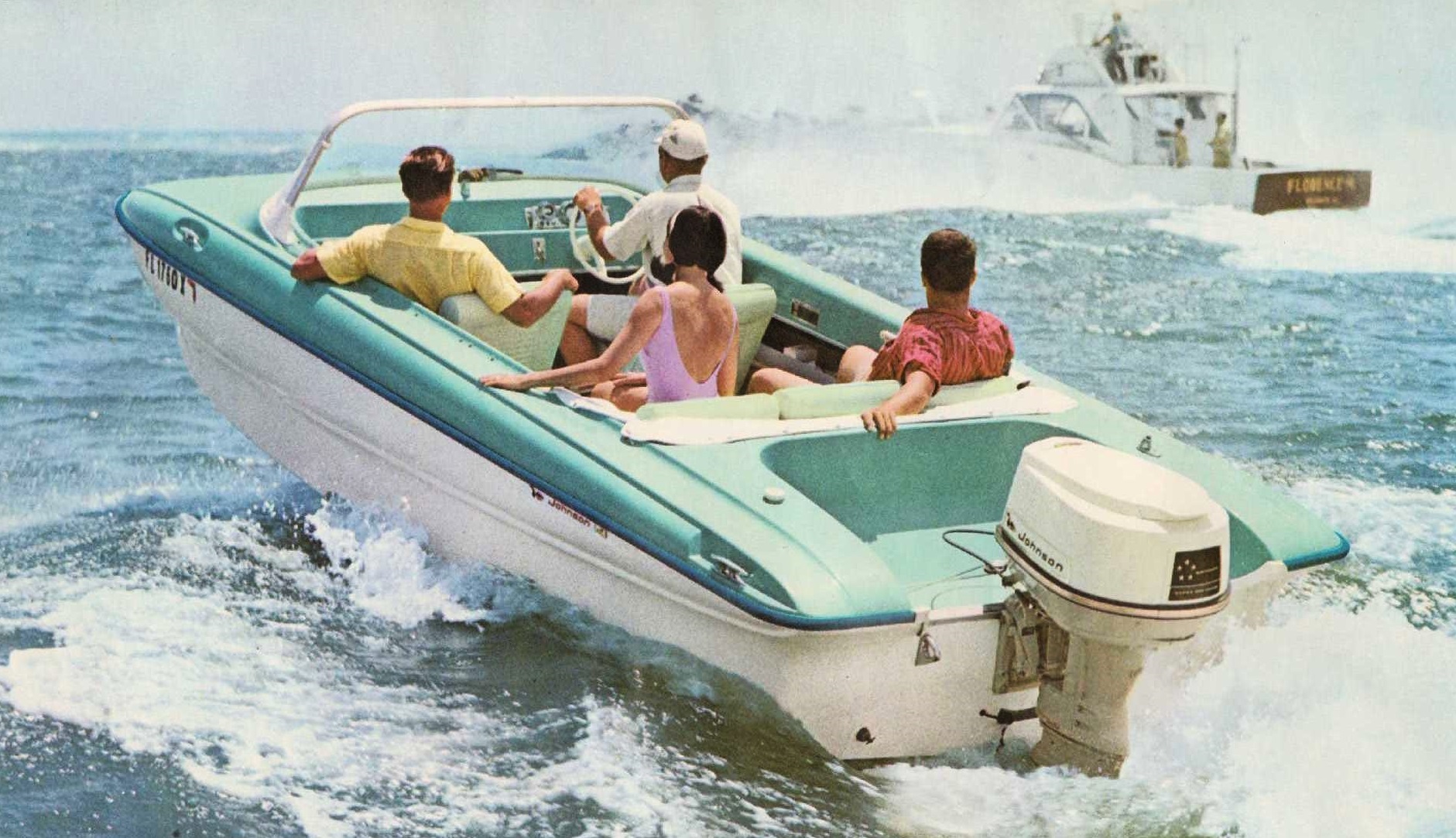

Hello, I’m starting to think about the organization of the deluxe restoration. For practical reasons concerning the engine I plan to switch the inboard engine to outboard . Has anyone ever done this on a deluxe? I am a data or photo taker. I would like to get closer to the original, like the one in the photo. Thank you.

1964 Johnson deluxe restoration project i was looking for the solution for the topic and that's what I was looking I got it to thank you all friends I am new here thank you for inviting me here
