TOPIC: 1959 Evinrude 35hp Lark

1959 Evinrude 35hp Lark 8 years 3 months ago #126934

59Larsonplayboy
Offline
Fresh Boarder
Posts: 15
Thank you received: 0

does anybody on here have a pic or diagram of how the linkage runs under the armature plate and hooks into the shift rod on a 1959 Evinrude 35hp Lark? Its the small linkage that connects to the carb and runs back. Also I am in dire need of an armature plate also. Obsolete part and ran across what I thought was one on Ebay (advertised as such), ordered and is not the correct part. Please help, anybody. Desperate here!!

Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #126939

59Larsonplayboy Offline Fresh Boarder Posts: 15 Thank you received: 0	Armature plate problem solved. All I need is a pic or diagram of how that linkage connects and I'm good to go. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #126940

16Again Offline Senior Boarder Posts: 176 Karma: 4 Thank you received: 0	Tried to send you copy of service manual, pics didn't come across email me a This email address is being protected from spambots. You need JavaScript enabled to view it. and I will email them back to you. Jack Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #126942

59Larsonplayboy Offline Fresh Boarder Posts: 15 Thank you received: 0	Email sent. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #126959

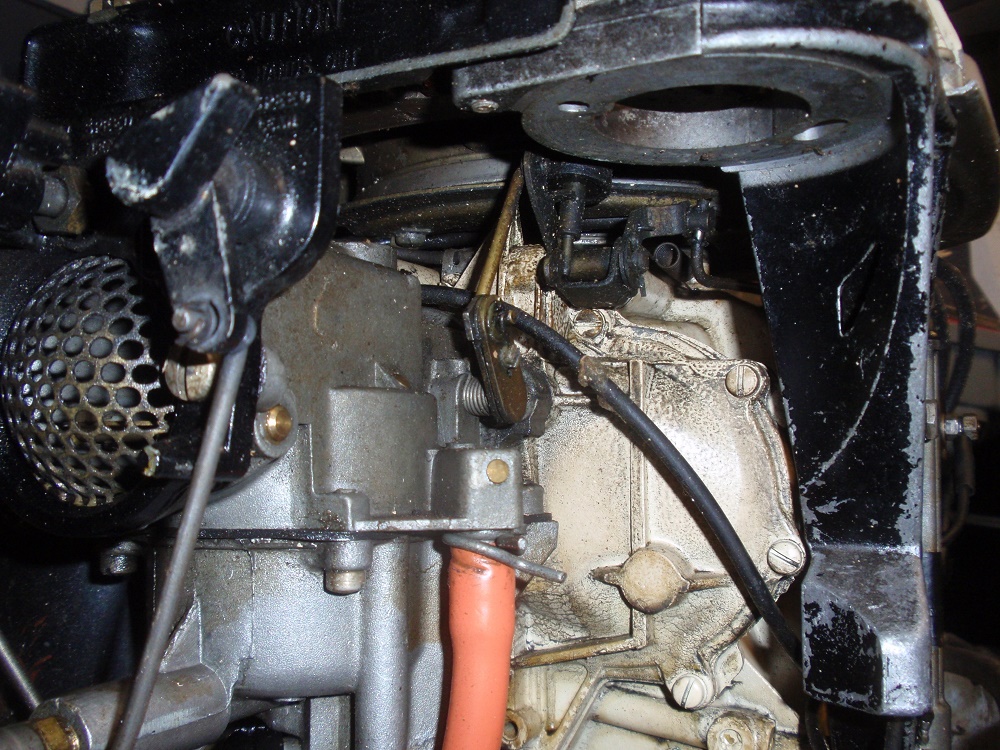

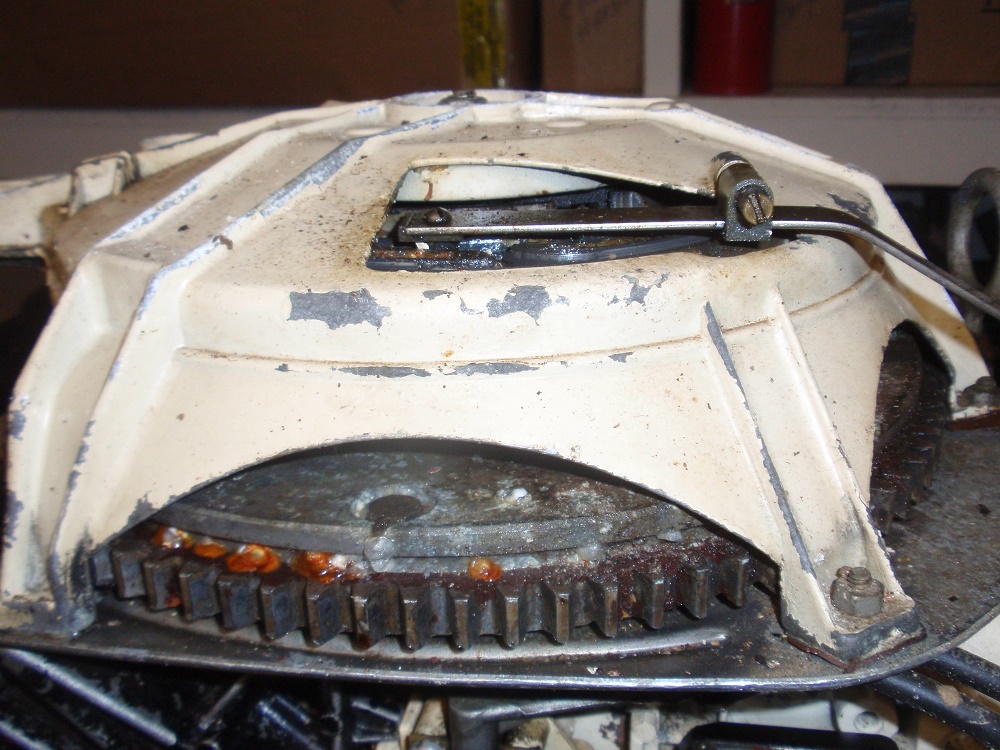

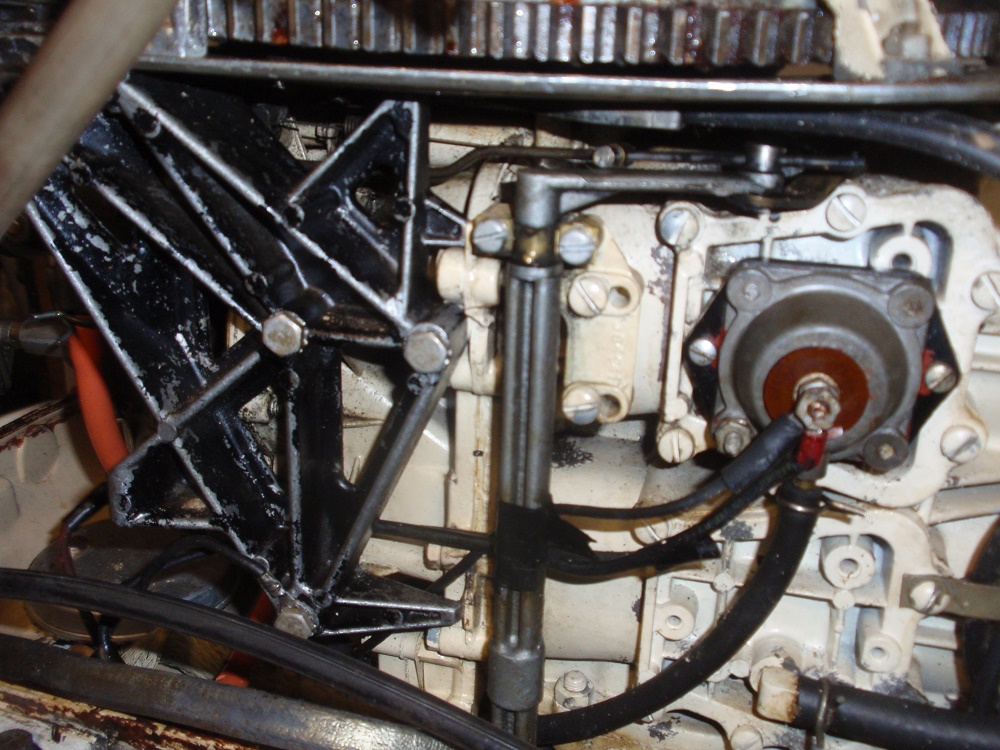

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Here are some pics from a '57 Johnson rds20 but I strongly think it would be very similar. Best I could do for now. Pictures are from a motor before it was taken apart for cleanup. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #126963

59Larsonplayboy Offline Fresh Boarder Posts: 15 Thank you received: 0	Awesome!! Just what I needed! Thanks! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #127098

59Larsonplayboy Offline Fresh Boarder Posts: 15 Thank you received: 0	Can anybody tell me what you set the points at on these year model engines? Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1959 Evinrude 35hp Lark 8 years 3 months ago #127102

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	.020. Right here on fiberglassics info pages. fiberglassics.com/library/File:Evinrudem59021.jpg Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.
