Super Seahorse 35 9 years 7 months ago #109312

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

Where do you look for the model number on this motor? I found the serial number in a welch plug (1935435), but haven't found any other info yet.

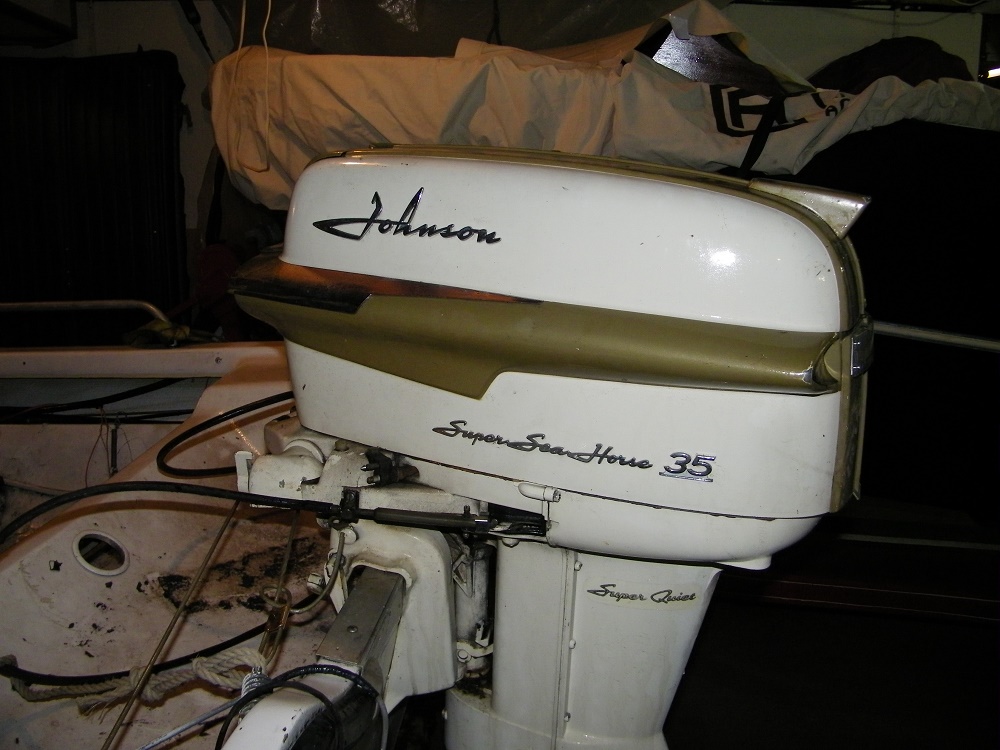

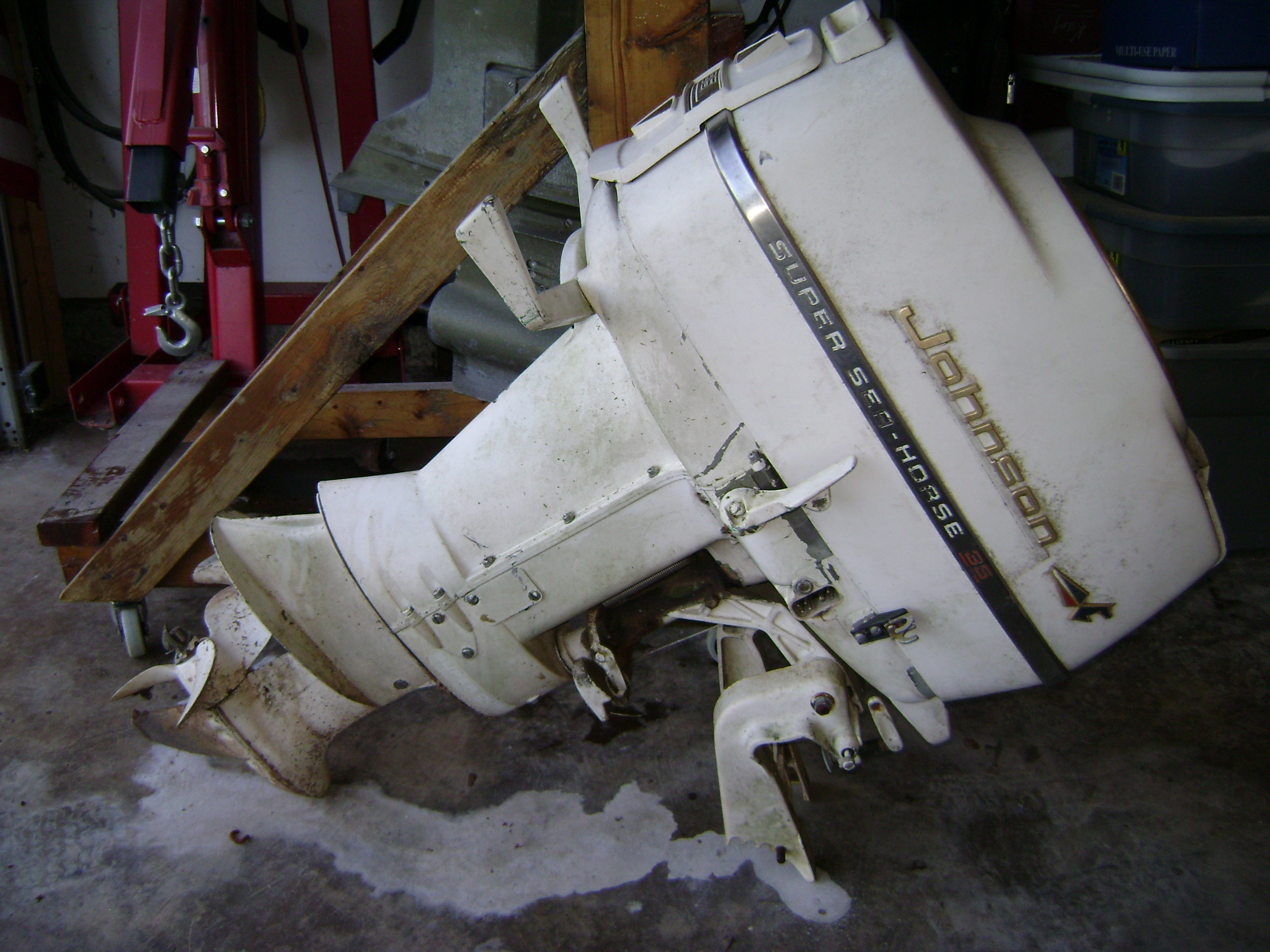

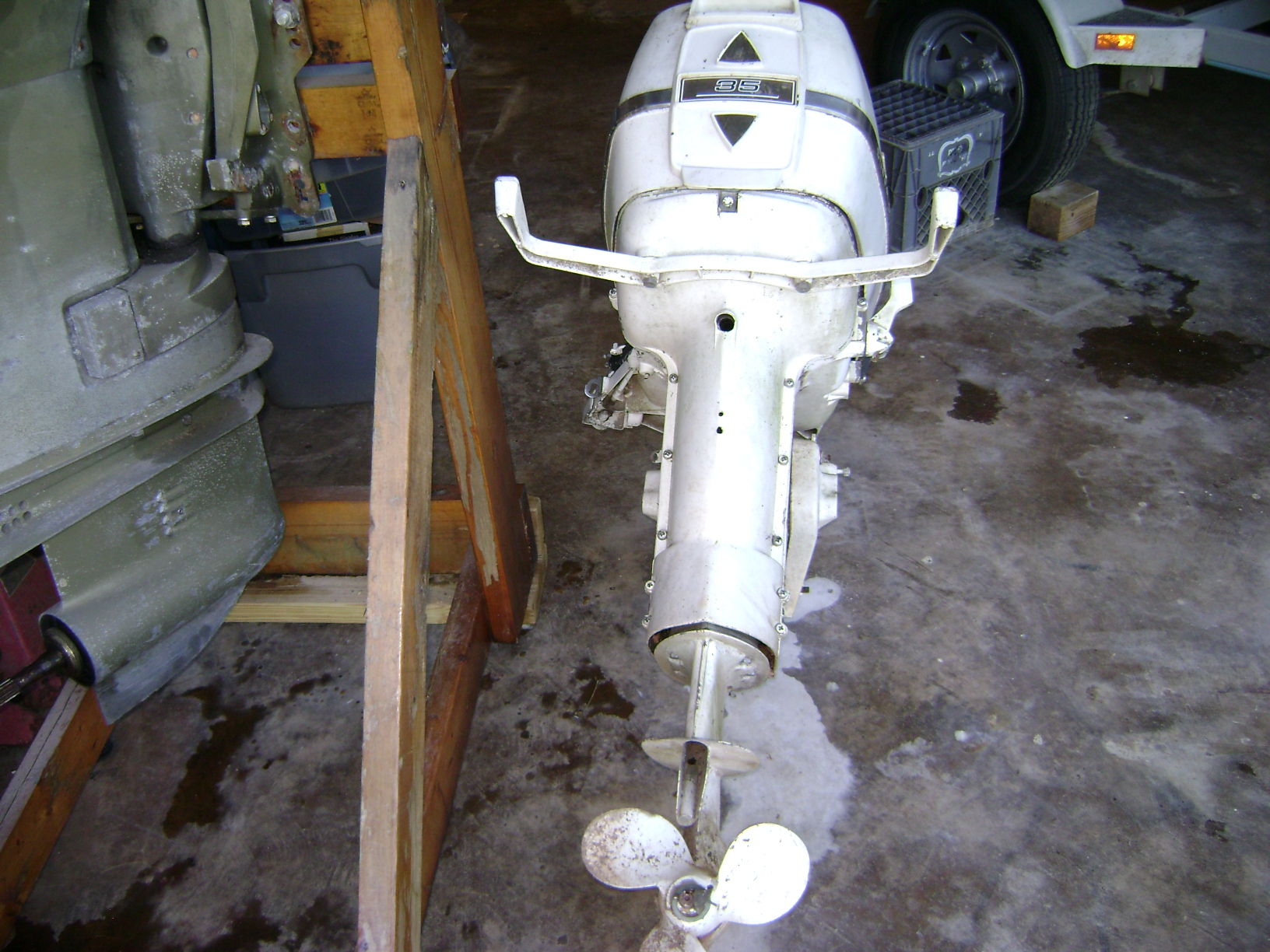

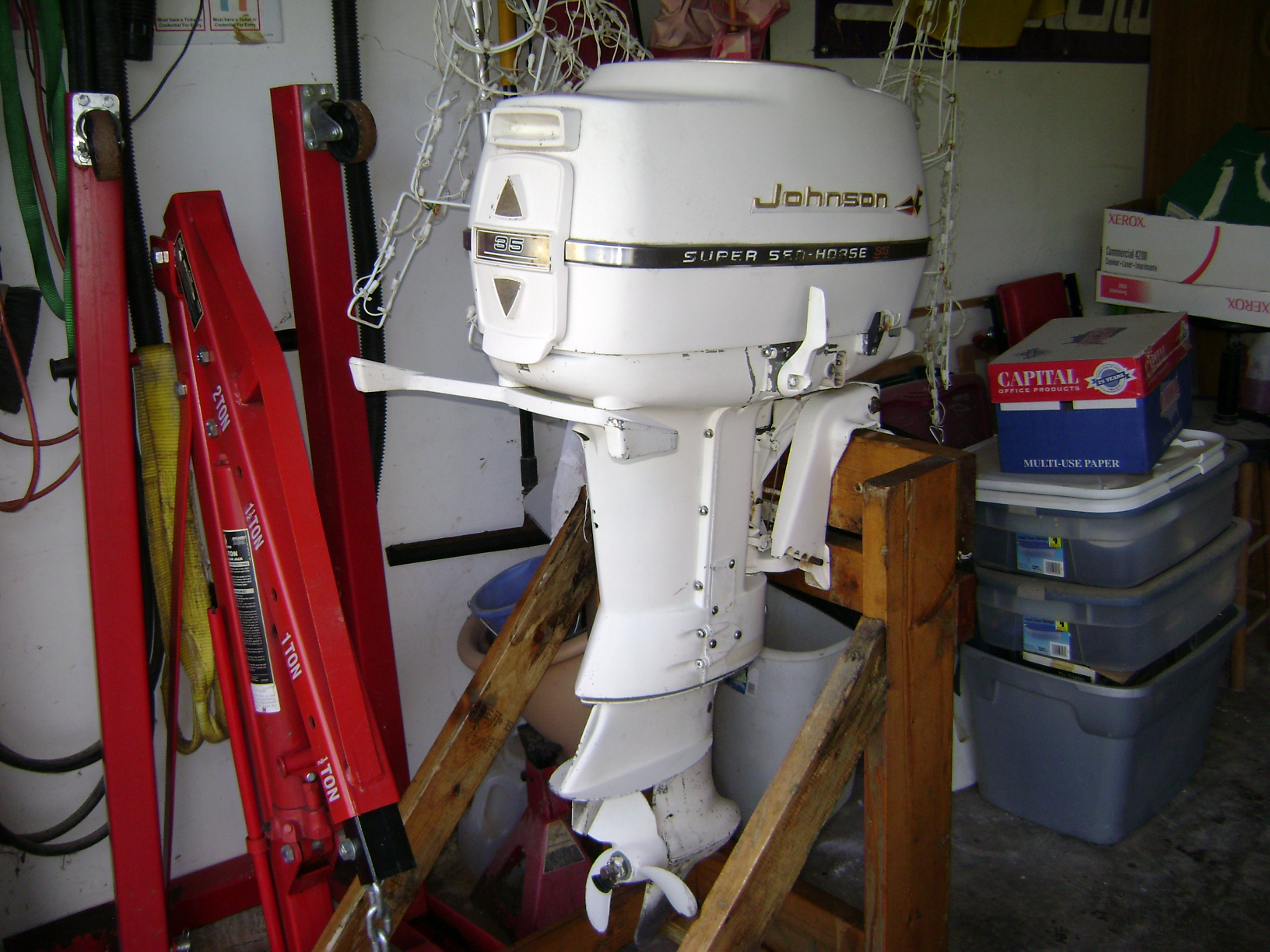

She looks fairly clean and well cared for, gotta get her up on the stand and check it out more fully. I know my way around the 1970's OMC motors fairly well, but this one is uncharted territory for me! Bonus - I found an extra prop (looks pristine) in the boat she came on.

Attachments:

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 7 months ago #109320

al lockhart
Offline
Expert Boarder
Posts: 398
Karma: 43
Thank you received: 0

The ID tag should be located in between the transom brackets just under the clip that latches the hood down. The model # is RDS-21 and it's a 1959 model. The coils are located under the flywheel like all 50's OMC's and the ignition is super easy to work on. 59 was the only year for the spark plug access door in the back of the hood and the last year for 35hp as 1960 introduced the 40hp models. This model has a thermostat which opens at 140f so the water coming out the telltale doesn't start spewing right away more of a mist until it's warmed up just keep your fingers out of it as it can become hot fast!
Al

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109323

frog Offline Platinum Boarder Posts: 1431 Karma: 59 Thank you received: 3	did not noticed the access door, good eye Al. frog Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109345

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

Thanks Al, I've got to get her up on the motor stand and check her out fully. She turns over freely, and as you can see is pretty clean and appears to be well cared for. Normal (for me) fuel line replacements, carb and fuel pump kits, ign tune up, etc. will be in order after a compression test.

I see a compression release on the recoil starter, so I guess I'll have to get the battery cables replaced and the switch box serviced, as they have seen their better days. (Cables insulation broken down and corroded, and the box was lying in the muck on the floor.

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 7 months ago #109360

Kerry Offline Gold Boarder Posts: 675 Karma: 51 Thank you received: 2	Don't forget the water pump impeller, Mark. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109368

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	Thanks Kerry, don't want to forget that! I've got to read over the manual and check on some of the older posts on how to go about the tasks at hand. She cleaned up pretty nice. RDS-21 B Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 7 months ago #109374

al lockhart Offline Expert Boarder Posts: 398 Karma: 43 Thank you received: 0	That is one nice looking original motor, I'm sure that after a tune up and some fiddling it will be a great runner. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109382

frog Offline Platinum Boarder Posts: 1431 Karma: 59 Thank you received: 3	wow, your motor sure cleaned up nice. looks like new and it will run like new also with a little work. frog Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109472

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	Is it possible to change this motor over to push/pull cable steering? It was originally rigged with the pulley cable system, I may see about changing it over if possible. (I'll have a complete pulley cable system for sale if this can be done.) Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 7 months ago #109484

ed-mc
Offline
Platinum Boarder
Posts: 1412
Karma: 232
Thank you received: 117

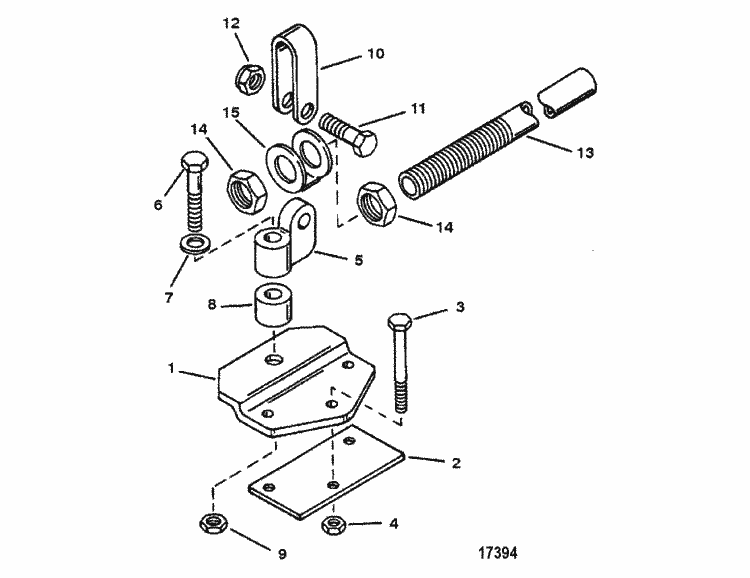

Mercury makes a kit to transom-mount a ride-guide-style steering cable. P/N 73770A 1

www.marineengine.com/newparts/part_details.php?pnum=MER73770A+1

Other mfr's have made various adapters over the years, you might be able to find something that'll work on eBay.

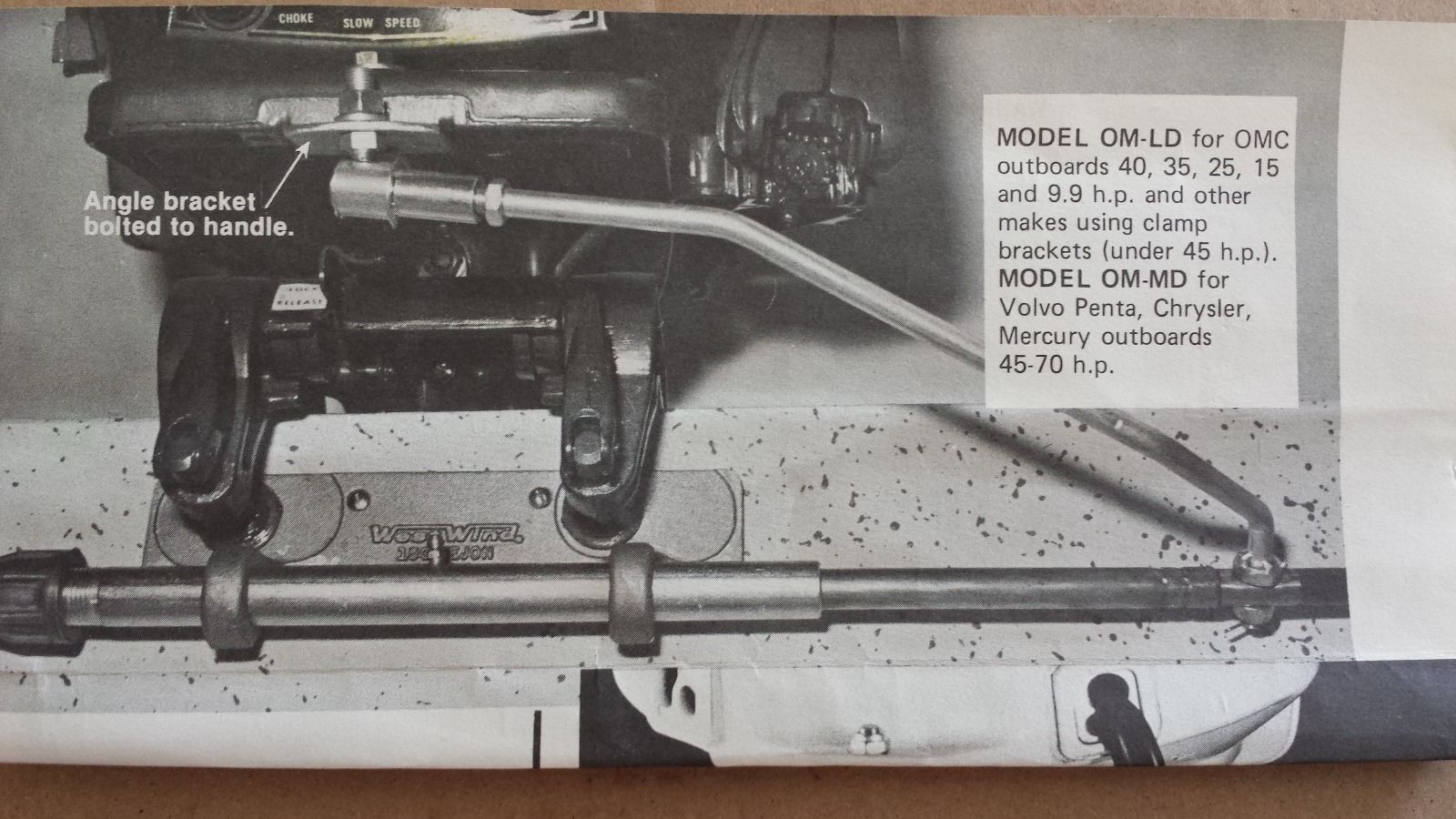

One style that probably would work on yours, has a flat plate that goes under (and is held in place by) the transom clamp screws; the tube to mount the ride-guide cable is attached to that plate.

Edit: found one on eBay!

And here's an excellent deal on the Merc kit, about half-price:

HTH..........ed

Attachments:

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109493

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Looks like a sweet motor Mark, any mouse damage? Should be a good runner. How 'bout a contest who can get their 35 sea horse running first. All I know about mine is it turns over with the puller, No time to look at it yet. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109495

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

Thanks Ed, maybe an option for me there. As always, I appreciate the help!

Good looking motor Cal, what year is it? Mine had just a little "bedding" under the cowl, but no sign of damage yet. (Maybe just started, I believe it was properly stored before the last owner got his hands on it.)

I haven't had a chance to check mine out either, just pulled it over with the rope a little to make sure it wasn't locked up. Guess I'd better get the horse back in front of the cart and make sure she's going to be a runner before worrying about the steering system.

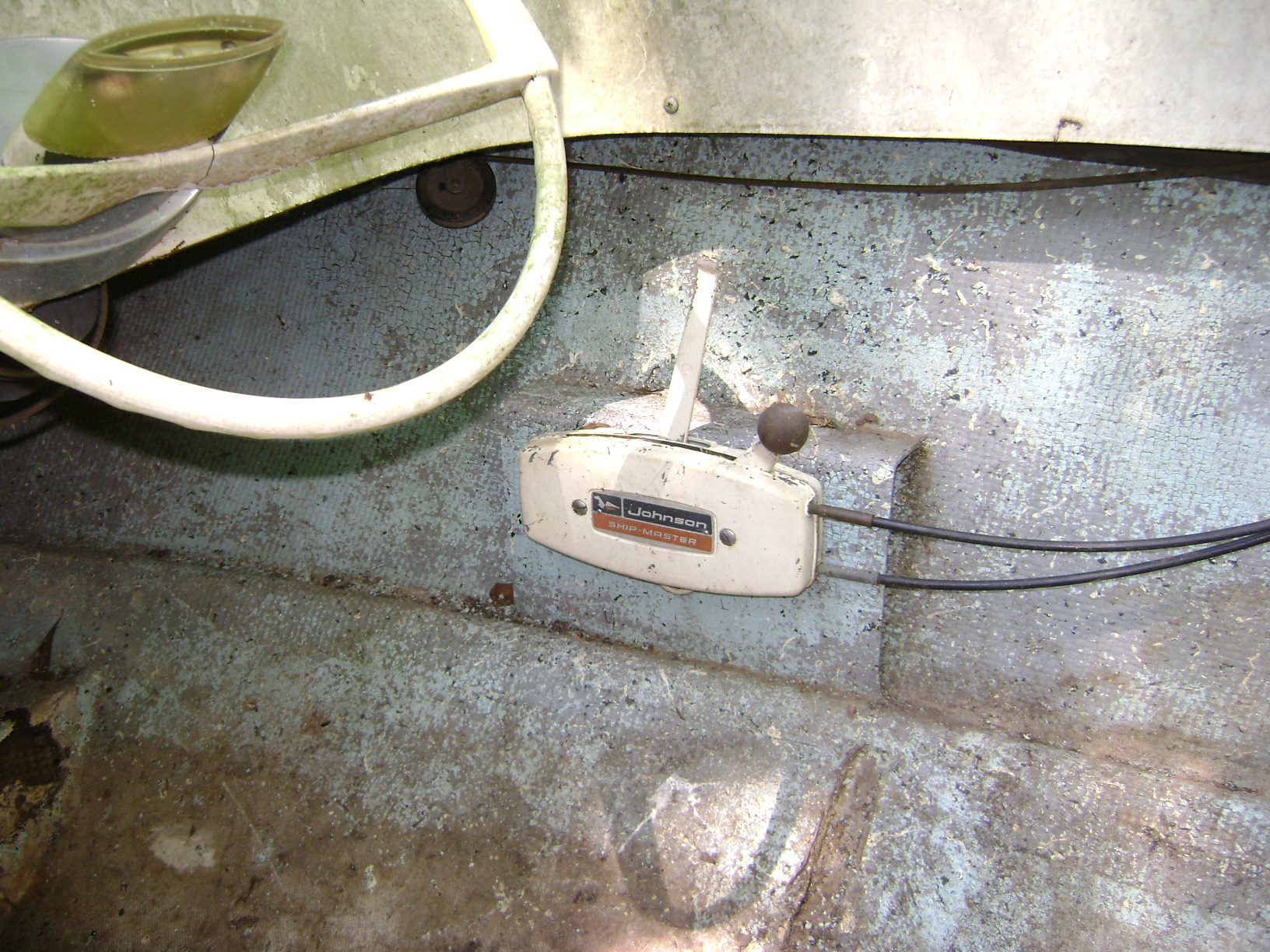

More immediate problems would be the "frozen" control box with a broken handle, and the electrical box that was laying in the muck garden in the floor of the boat. The relays, wiring coming out to the battery, etc. are in pretty bad shape.

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 7 months ago #109499

Waterwings
Offline
Contributing Member
Posts: 4887
Karma: 107
Thank you received: 100

Great looking motor Mark, it should be a good runner once you're done. The electrical box for that 75hp I got was trash also. Everything was corroded, thank goodness I didn't need it since I used the 80hp to put inside the housing. Greta wheel to by the way, of course I'm partial since that's the same one as I have.

Bob

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109502

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	Thanks Bob, the electrical stuff shouldn't be a problem, I can still read the diagram on the inside of the cover! (We have all the relays and stuff at work - I think.) I'm still on the fence about keeping everything original on this one, plenty of time to decide...... Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 7 months ago #109504

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Those things are about as simple as you can get. This one was at least rusty screwed to the transom but without a cover. They clean up easy and the solenoids are readily available at auto parts stores (older Ford) Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109510

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	That's the one Cal, I've got the solenoid in my lunch sack to take home tonight. My fuses are missing and the battery cables are shot, no big deal. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 7 months ago #109512

Waterwings Offline Contributing Member Posts: 4887 Karma: 107 Thank you received: 100	Same as on my '59 Fat fifty that was on the Wagemaker, mine didn't have any fuses in it either. Don't really need them if I remember right, everything worked as connected so.... I replaced my battery cables and away I went. Bob Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109519

barnickelbill Offline Expert Boarder Posts: 335 Karma: 24 Thank you received: 15	The fuses are only used with the generator option, as are the 10 ga green & brown wires. Cheers Bill Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109520

Jim L
Offline
Platinum Boarder
Posts: 1426
Karma: 60
Thank you received: 2

MarkS wrote:

Thanks Ed, maybe an option for me there. As always, I appreciate the help!

Good looking motor Cal, what year is it? Mine had just a little "bedding" under the cowl, but no sign of damage yet. (Maybe just started, I believe it was properly stored before the last owner got his hands on it.)

I haven't had a chance to check mine out either, just pulled it over with the rope a little to make sure it wasn't locked up. Guess I'd better get the horse back in front of the cart and make sure she's going to be a runner before worrying about the steering system.

More immediate problems would be the "frozen" control box with a broken handle, and the electrical box that was laying in the muck garden in the floor of the boat. The relays, wiring coming out to the battery, etc. are in pretty bad shape.

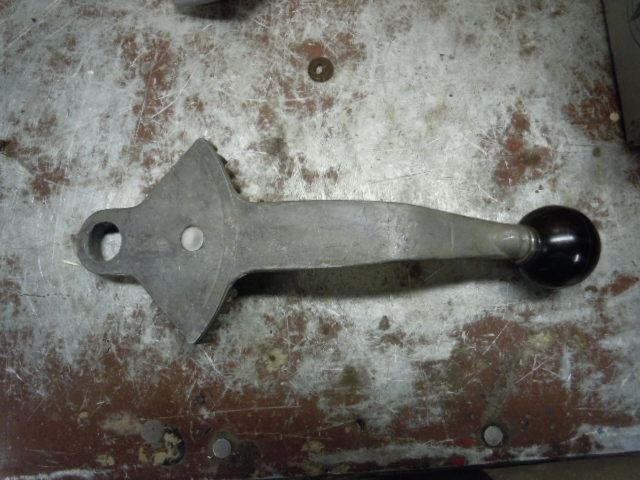

Mark, I have a handle I got with some other parts that if it's what you need and you can use it,it's yours. Jim

Attachments:

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109534

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

'Preciate the info Bob, and Bill. I wondered about those two wires as they don't seem to have anything hooked up on the other side of the connection block they're terminated on.

Thanks Jim, but I think it's the other lever I need. (Unless they're interchangeable, I haven't pulled the control box apart yet.)

If your lever will work I'd be glad to have it! We'll work out something for shipping, etc..

Attachments:

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 7 months ago #109537

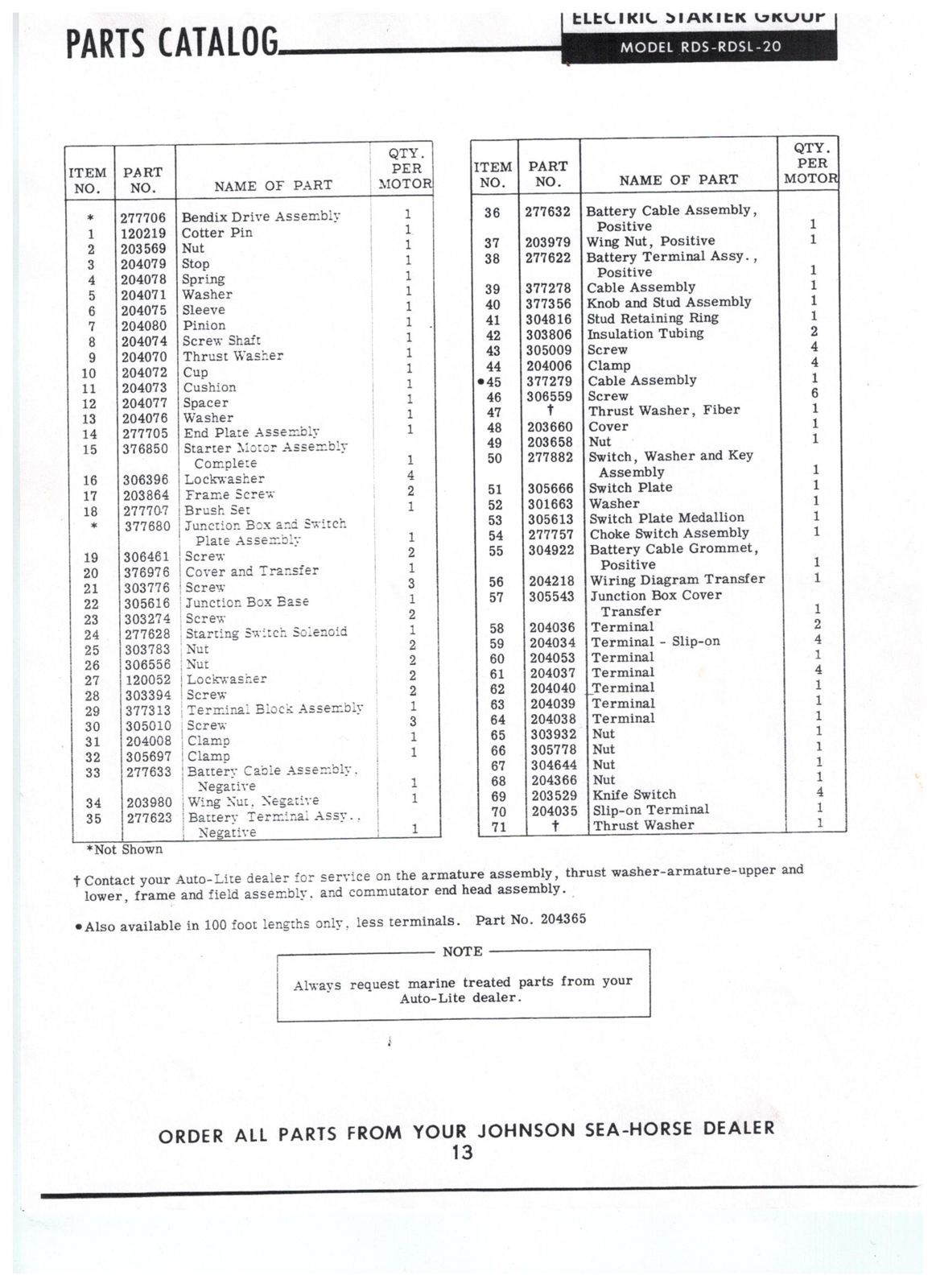

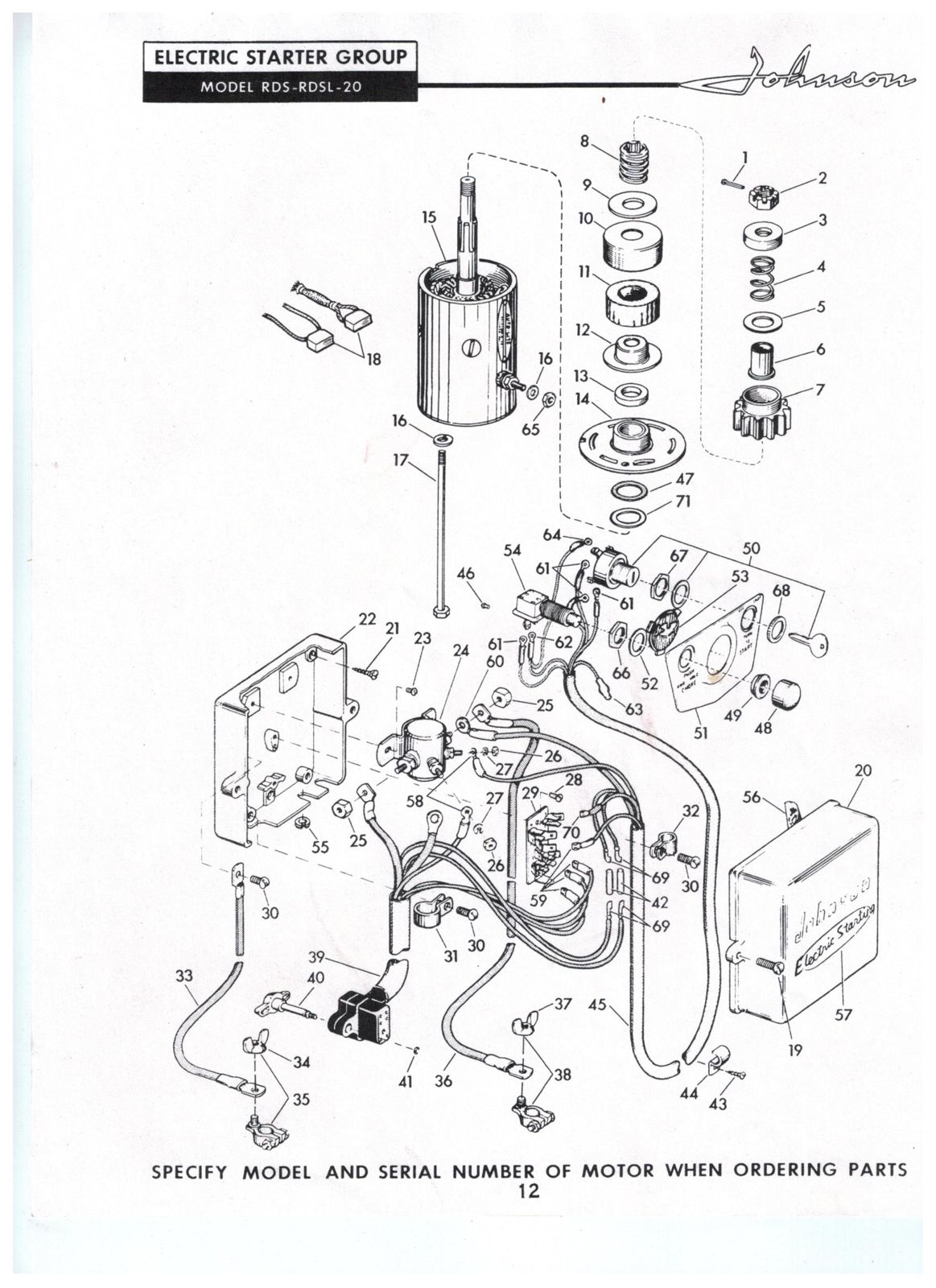

barnickelbill Offline Expert Boarder Posts: 335 Karma: 24 Thank you received: 15	Here's a couple scans you might find helpful. I have a complete service manual for your motor ( covers many) if you or anyone else needs more info. The latter applies to 58 RDS- 20, but is probably the same as yours Cheers Bill Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109538

barnickelbill
Offline
Expert Boarder
Posts: 335
Karma: 24
Thank you received: 15

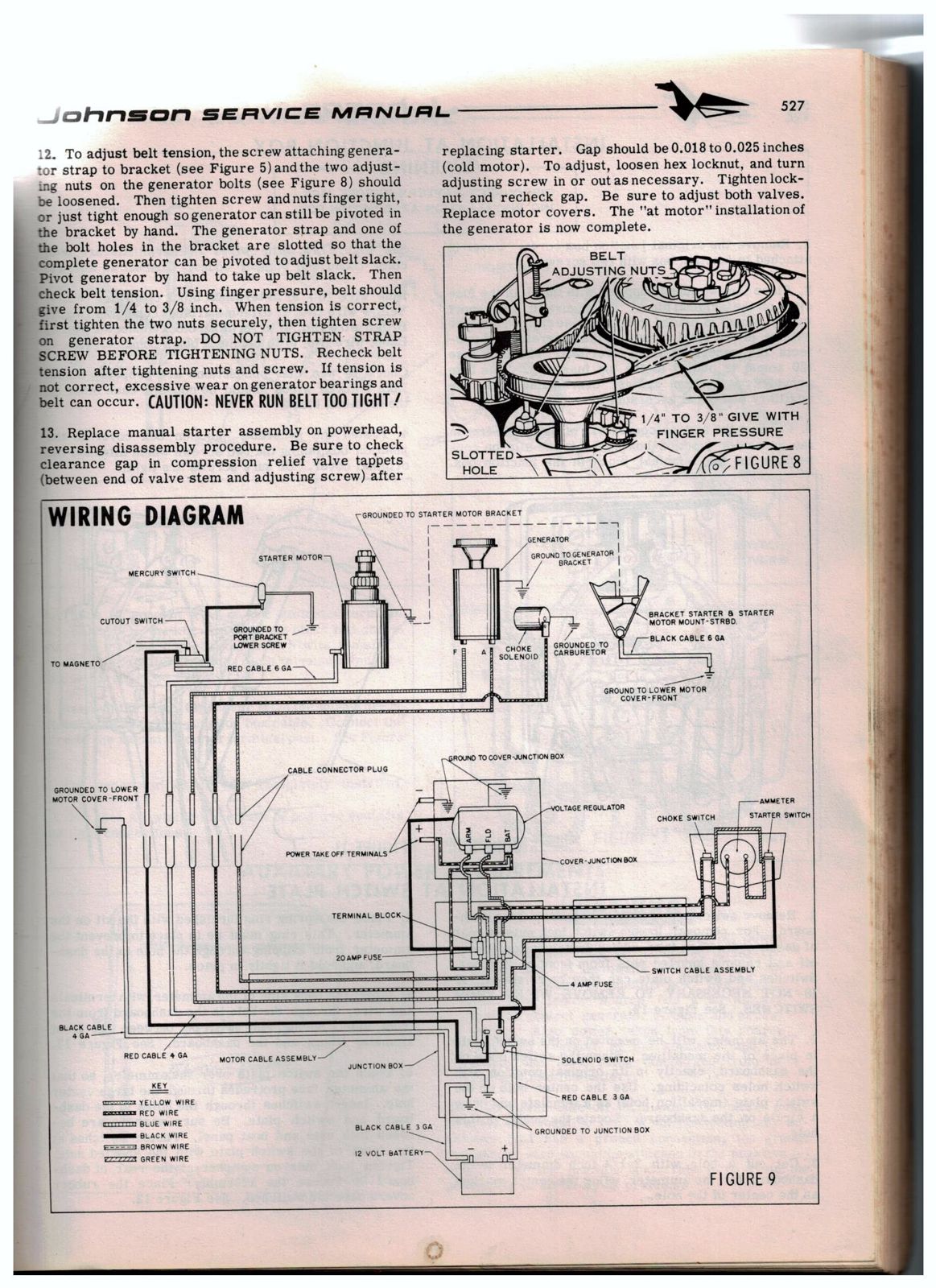

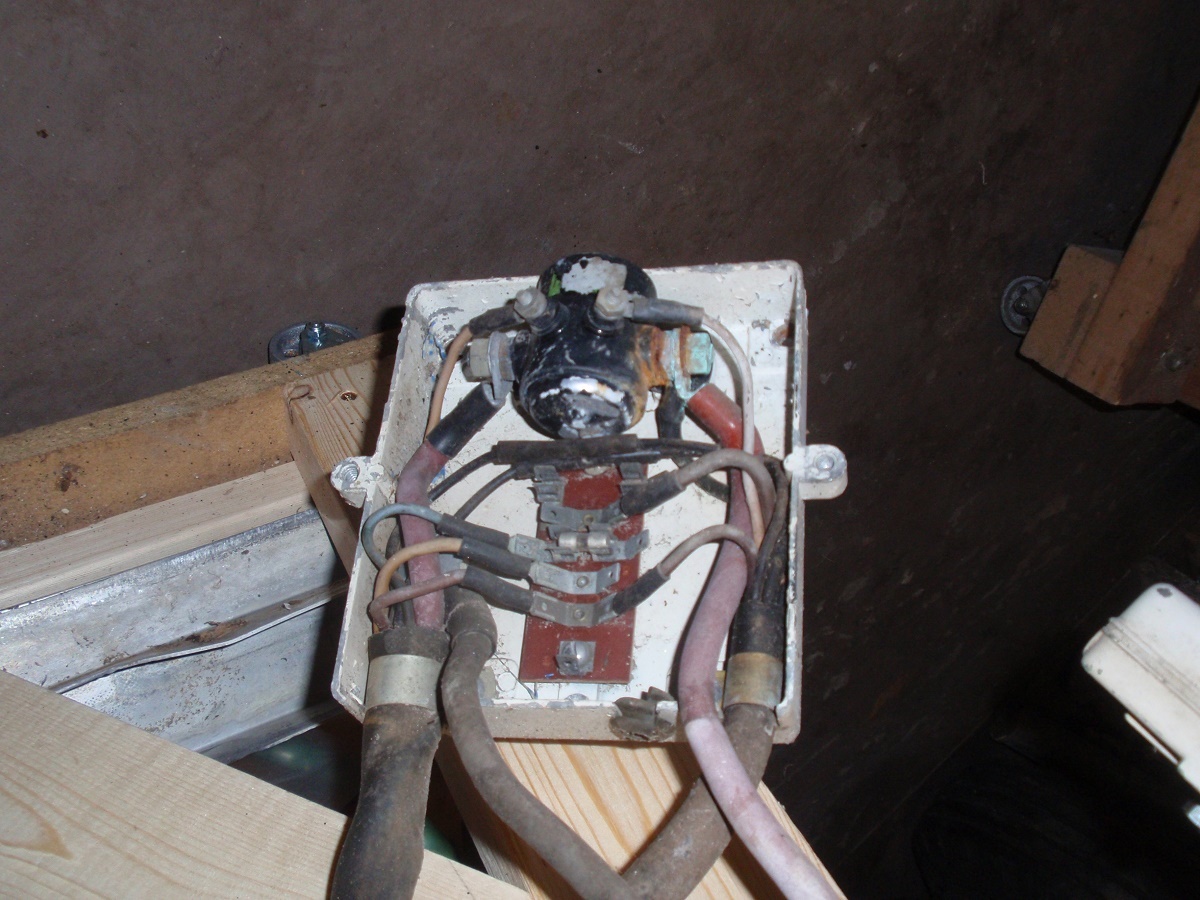

I'll be wiring mine up in the next few weeks & will post some pics

Mark, I would encourage you to retain the cable steering. I understand if you upgrade you will not be able to use the Attwood wheel you have, which I think is pretty desirable. I don't think there's anything wrong with cable steering as long as it is maintained. Many aircraft rely on cables for control.

Cheers

Bill

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109545

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Bill, thanks for the posting of pictures, I printed them off for future use. Mark, I had a smidgeon of mousie nest also. Check out the lower plug wire. I think I need a new wire, en-so? Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109553

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

Thanks Bill, good info. I have to get a manual when the budget permits, I appreciate the assist in the mean time! The more I think about it, the more I lean toward keeping the cable steering. Thanks for the input.

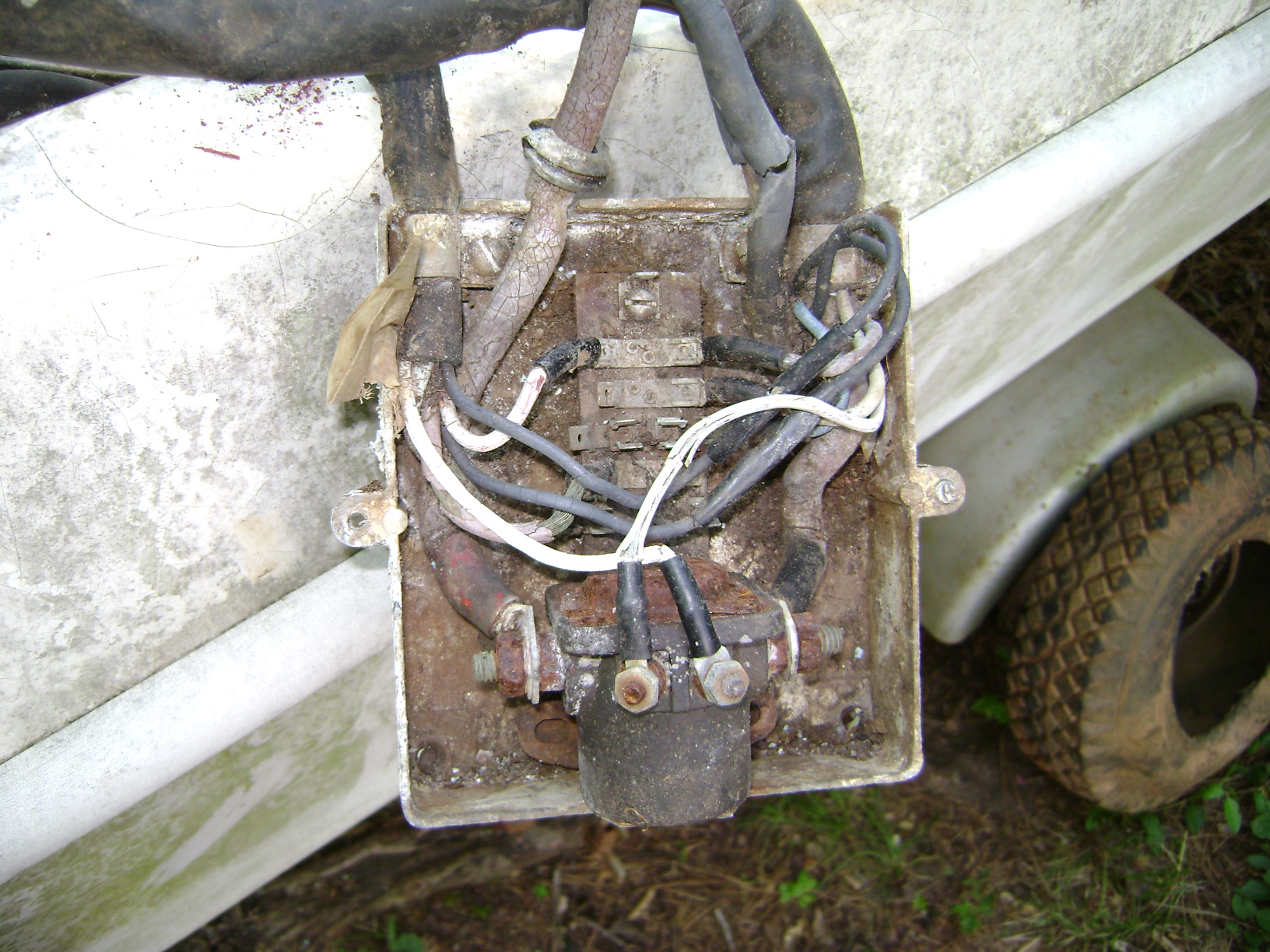

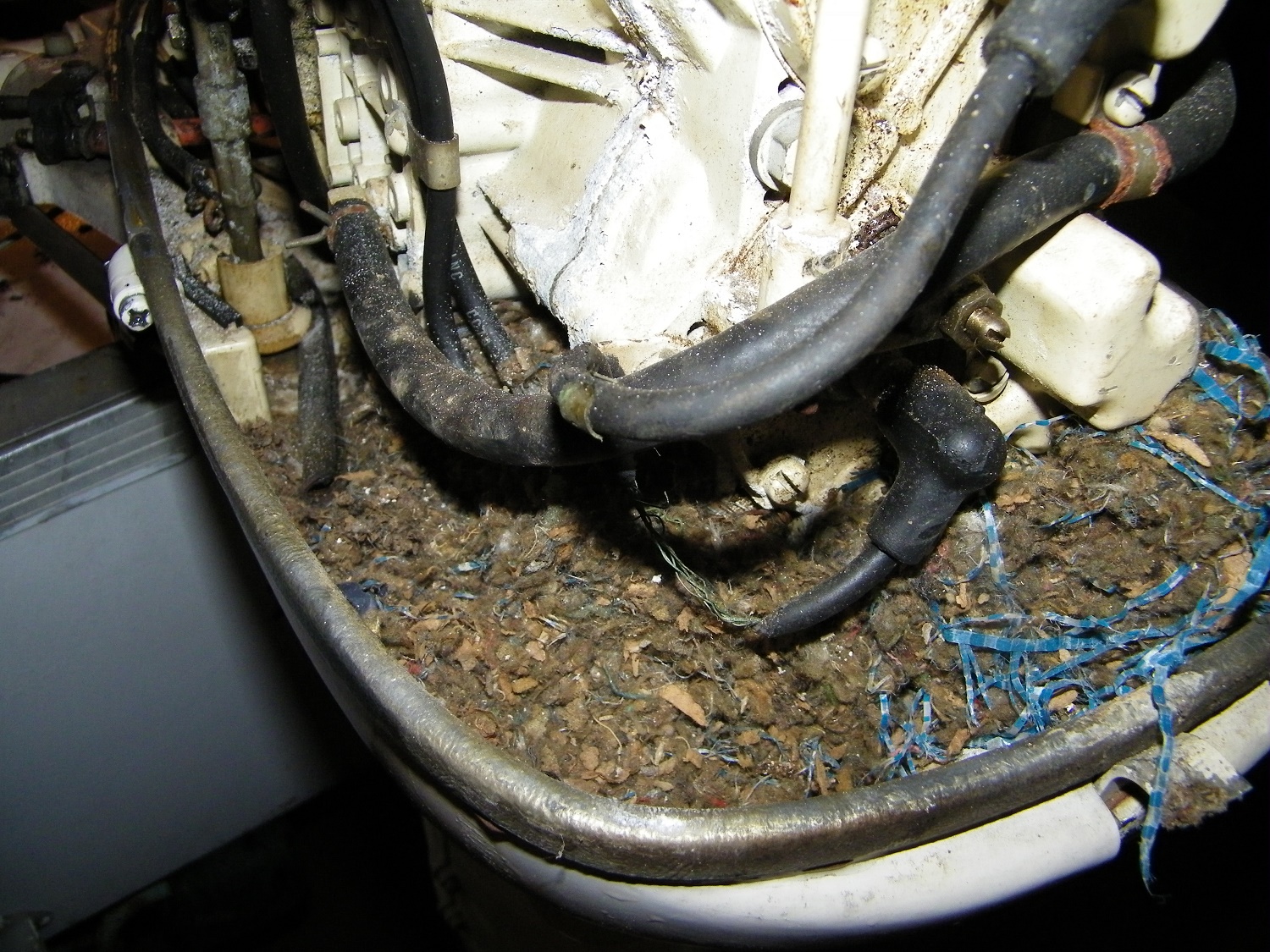

Gee Whiz Cal, you DID have some infestation there! Wire insulation must be like candy to those little buggers.

Can someone please explain the "cut off valve" function to me? (I realize it appears to ground out the ignition, but for what purpose?)

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 7 months ago #109570

satx78247 Offline Contributing Member Posts: 2688 Karma: 66 Thank you received: 3	MarkS, Check www.ebay.com for a fellow who sells the old factory OMC repair & service manuals on CD. - I paid 5.00 for mine at auction a couple of years ago. yours, satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Resistance to tyrants is obedience to Almighty God. Thomas Jefferson, 1803

Re:Super Seahorse 35 9 years 7 months ago #109587

63 Sabre
Offline
Contributing Member
Posts: 4676
Karma: 147
Thank you received: 167

Mark, the ign key gods were with me today. I actually found one that fits the ign for the rds-20, hooked up a battery and the thing turned over, starter is excellent, even the rusty old solenoid.
Any idea what the compression is supposed to be on the '58 sea horse??
I got around 70ish on both cylinders and a lot of carbon. I flooded both cylinders with fogging oil before turning over and also while spinning it. Even got spark off the one plug that the mice ate

The other one was dead.
Now that I know it is usable it's time to tear it down and replace parts.
Had to take a break from fiberglassing my lone star project

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109593

ed-mc
Offline
Platinum Boarder
Posts: 1412
Karma: 232
Thank you received: 117

MarkS wrote:Can someone please explain the "cut off valve" function to me? (I realize it appears to ground out the ignition, but for what purpose?)[/quote]

It's a safety device that keeps the powerhead from blowing up! Hard to believe, but the old Big Twins had a bad habit of wanting to run-away if you were to rev 'em way up in Neutral, then slam the throttle shut.

You'd think they'd just slow down, but for reasons I don't fully understand they get all ring-ding-y and just keep revving higher & higher and you think the engine's gonna splatter.

The cut-off-valve is vacuum-operated such that if the throttle is slammed shut at higher rpm, the high vacuum in the crankcase actuates the vacuum switch and, if I recall correctly, shorts one set of points to ground. Once that happens, the motor slows down and behaves again.

I'm thinking that the high vaccuum in the crankcase tends to pull a lot of fuel out of the carb, thru various passages, and maybe some of the residual fuel that's pooled in the crankcase, as we all know these Big Twins are so miserly with their petrol!!!

Anyway, that's my limited knowledge of that thing, believe me, if you disconnect it, you will find out what it's for!

Very scary, gotta tell ya!

Cheers.........ed

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109604

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	That's a good find Cal, mine is missing too. I hope to get the electrical stuff pulled out of the boat this weekend, need to get a basic idea of what I'm dealing with as well. Thanks Ed, good to know! I had no idea what that switch was all about, we'll be keeping it functional for sure. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 7 months ago #109605

63 Sabre
Offline
Contributing Member
Posts: 4676
Karma: 147
Thank you received: 167

Mark, didn't mean to hijack your thread but the engines are similar we can work together.

Ed is 100% correct on the cut switch, there was a good explanation on iboats forum sometime back.

I'll try to pull the cap today and snap some pictures of the coil and points for us. Going to dismantle the entire engine sooner or later and replace all the internal wires and fuel lines. Coil is relatively inexpensive and available at NAPA Sierra brand around $20

Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 7 months ago #109627

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	No worries Cal, glad you're doing one too - always happy to have the guidance. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 4 months ago #113275

MarkS
Topic Author
Offline
Moderator
Posts: 5348
Karma: 118
Thank you received: 5

Back to the steering set-up, I am going to upgrade to a single (push-pull) cable. I've got a stand off mount and tube from a donor boat, just need to find the connecting arm/rod and a way to fix it to the motor. Anybody got some spare parts laying around they would part with? (For a fee of course!)

Please Log in or Create an account to join the conversation.

Mark

Re:Super Seahorse 35 9 years 2 months ago #115438

VintageDave Offline Senior Boarder Posts: 212 Karma: 3 Thank you received: 0	Curious about the spark plug access door. Just got an RDS-21-B and couldn't figure how to open the access door. This is what the inside looks like. Owner modified? Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 2 months ago #115445

63 Sabre Offline Contributing Member Posts: 4676 Karma: 147 Thank you received: 167	Wouldn't know what the original should look like but that does not look factory. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Super Seahorse 35 9 years 2 months ago #115458

MarkS Topic Author Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	The clamp is spring loaded Dave, just pull on the handle (sticking up above to lip of the cover in your pic) and it should open. I'll check mine tonight to make sure it looks the same, but that appears to be identical if memory serves me correctly. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

Re:Super Seahorse 35 9 years 2 months ago #115480

VintageDave Offline Senior Boarder Posts: 212 Karma: 3 Thank you received: 0	It will be interesting to see how yours compares. It seems like the flat metal strips on mine should be some type of spring clip. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.
