TOPIC: Twin 55's

Twin 55's 13 years 10 months ago #25394

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0
Anyone running twin engines?
If so what size boat?

Please Log in or Create an account to join the conversation.

Re:Twin 55's 13 years 10 months ago #25399

I hope to be soon Bill. The first late model one is having issues but I did get my early model one purring along thanks to Greg. I will have to figure out if i can switch engine covers to the "George Jetson" style or just find another entire early style engine and get rid of the late model. I love the look of that early hood. Going to try to run a single for a little bit this summer until I get the bugs worked out of the other one. How do they configure the engine controls?

Please Log in or Create an account to join the conversation.

Nick

1961 Uniflite 19' Express, Bearcat 55 powered
1975 Chris Craft 25' Tournament Fisherman, Twin 181 FL inboard

Re:Twin 55's 13 years 10 months ago #25678

i heard ed has a bracket to hook two controls togethet but maybe bill has them as well thought of twins on my 17 skagit but not sure if the ride will suffer?

Please Log in or Create an account to join the conversation.

Re:Twin 55's 13 years 10 months ago #25688

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0
They bolt back to back.
For the Safety Mate style with the ignition switch/horn/red light you need a port and starboard control box bolted back to back.
For the later rectangular Bearcat style control box, same thing.
I'll get a pic later today.

Please Log in or Create an account to join the conversation.

Re:Twin 55's 13 years 10 months ago #25720

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
The late style are reversible, port or stbd. Same control, just remove the handle and flip it 180 degrees and move the shift/throttle cable to the other position provided.

Figured that's what you need for early controls, I have both a port and stbd and was going to try that.
Attachments:

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Twin 55's 13 years 10 months ago #25764

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0

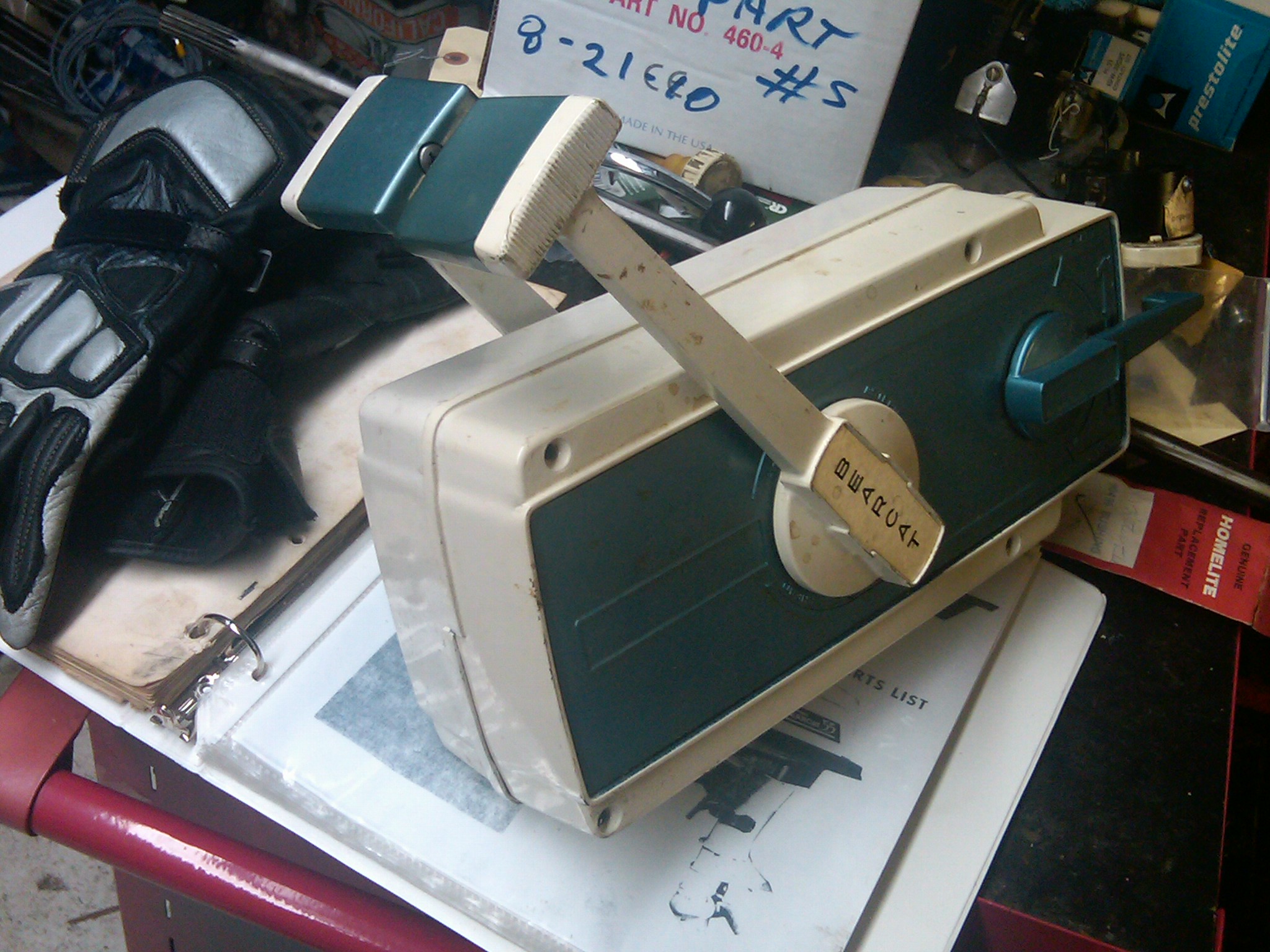

Dick is right, the late Bearcat controls are cast such that the mating flange allows the controls to be placed port or starboard, or mated together, here's a pic of them mated for twin control.

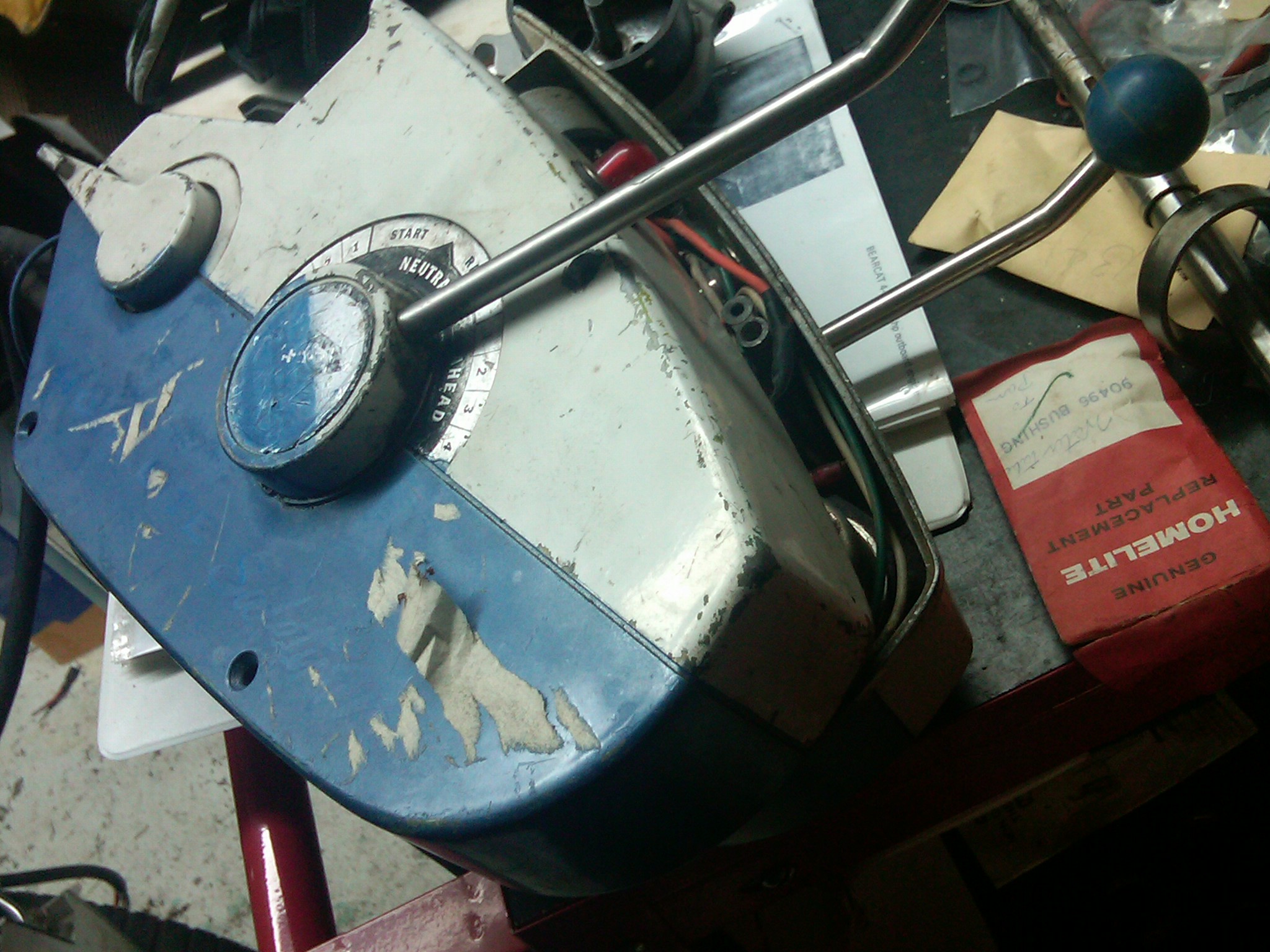

On the Safety-Mate controls, the starboard control has a small peripheral flange that allows the port side control to fit inside the ridge on the starboard side when running twins. So port and starboard are two distinctly different castings.

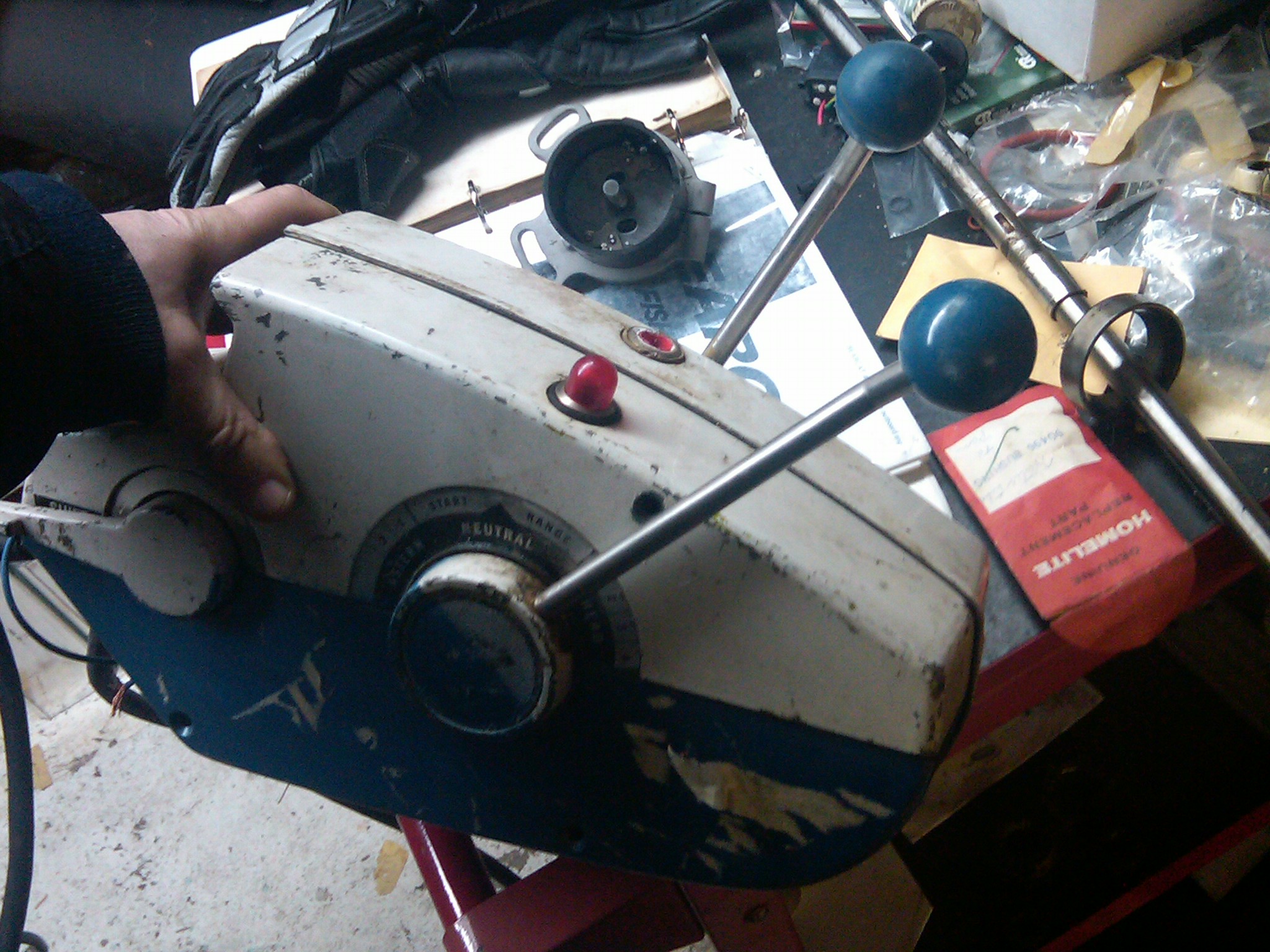

One pic shows them mated, the last shows the port with no ridge atop the starboard with the ridge.

Hope this helps.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Twin 55's 13 years 10 months ago #25765

This may sound a bit strange but I have a set of Simplex dual controls, could I run these controls and run my ignition and other guages seperate like the OMC stuff?

Please Log in or Create an account to join the conversation.

Nick

1961 Uniflite 19' Express, Bearcat 55 powered
1975 Chris Craft 25' Tournament Fisherman, Twin 181 FL inboard

Re:Twin 55's 13 years 10 months ago #25766

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0
do they use series 33 cables?

Please Log in or Create an account to join the conversation.

Re:Twin 55's 13 years 10 months ago #25827

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
Yes you can run the ignition and gauges seperate, if you notice on the late controls the only electrics inside is the neutral safety switch. These controls had a separate plate with the hot/oil light and ignition switch to mount on the dash.

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Twin 55's 13 years 10 months ago #25828

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
Yes you can run the ignition and gauges seperate, if you notice on the late controls the only electrics inside is the neutral safety switch. These controls had a separate plate with the hot/oil light and ignition switch to mount on the dash.

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)
