TOPIC: Power Tilt, CMC

Power Tilt, CMC 13 years 10 months ago #24159

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0

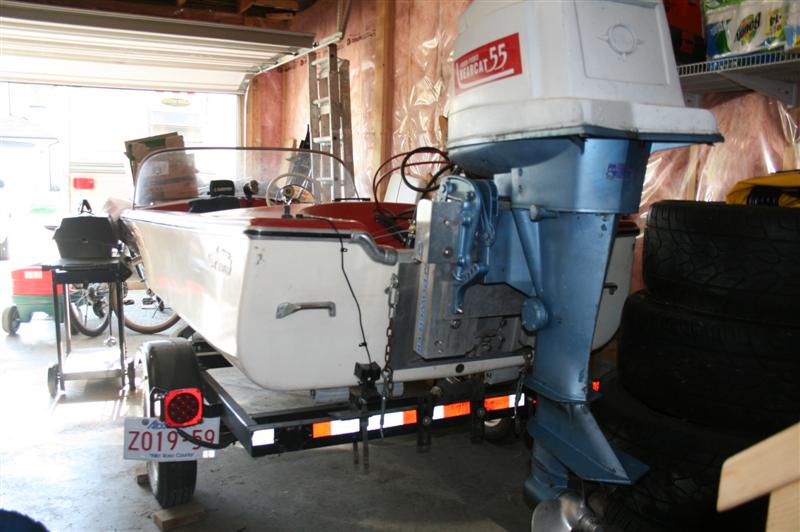

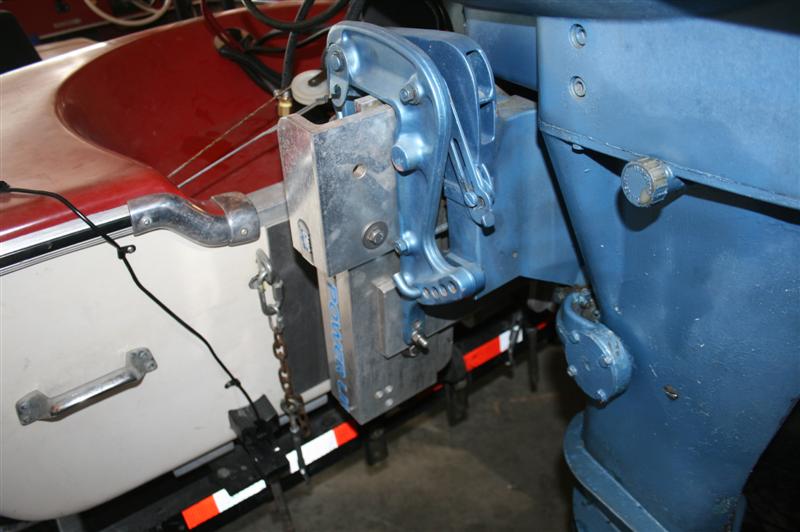

Here's pics of how one of my customers adapted a CMC tilt/trim unit for use with his Bearcat 55.
In these pics he's using a 20" shaft motor on a 15" transom.

I have done it using wood spacer blocks fabricated onsite when I ran both Bearcat 55 or Bearcat 85 outboards on my Skagit 20.
In my case I've been using a 20" shaft motor on a 20" transom.
I have also used a Panther tilt/trim bracket in the past, and also a CMC bracket. Either will work. I have not used a Powertran. Yet.
I'll get those pics later.

If someone is interested to the point you're going to do this email me direct and I'll shoot you a ton of pics which is faster than uploading them all here. Go to my site www.bearcat55.com and you'll see my email address there if you don't have it. Or PM me here.

Anyway, here's pics that some of you have emailed me about.
PTT is Nice if you beach your boat, kinda brings the motor up into the current century.....!
Attachments:

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 3 months ago #45075

  • T30
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 2
  • Thank you received: 0
Hey Bill

Thats my boat!! I have since changed the long leg to that short leg I purchased from you. This allowed me to lower the height of the motor a few inches. The boat is way more stable now, gets up on plane quickly. I have got it up to around 25 mph @ 4700 rpm (I am at 3500'asl).
That tilt and trim is the best piece I bought for the boat. It is so much easier beaching and bringing out of the water.

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 3 months ago #45115

My next goal for my pontoon is adding a CMC trim and tilt unit. B)
Attachments:

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 3 months ago #45443

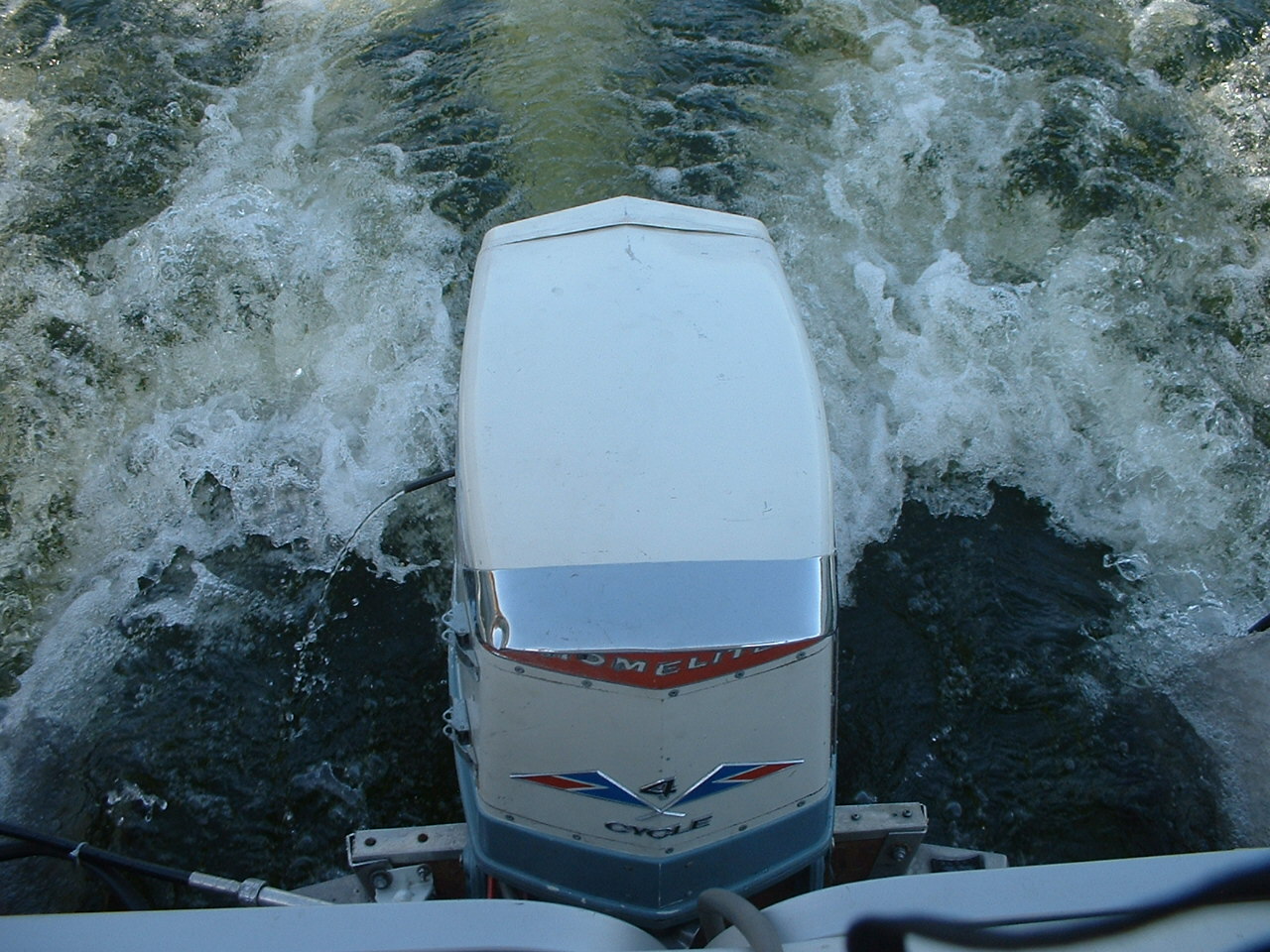

The 1966 Homelite I run on my Boston Whaler had the original engine bracket swapped for a Chrysler TnT engine mount. If a person didn't know better they wuld think it is OEM.

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 3 months ago #45460

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
Tom from Rubicon wrote:

The 1966 Homelite I run on my Boston Whaler had the original engine bracket swapped for a Chrysler TnT engine mount. If a person didn't know better they wuld think it is OEM.


Sounds interesting, pictures? which Chrysler model?

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Power Tilt, CMC 13 years 2 months ago #45702

The Chysler model the TnT came from? The guy I bought it from didn't say.
Pic?
Try this;
s481.photobucket.com/albums/rr178/trpetersonwi/Steve%20trailer%202011/?action=view¤t=IM000788.jpg

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 2 months ago #45714

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
Thanks Tom!

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Power Tilt, CMC 13 years 2 months ago #45984

This is very interesting to me as well as its most of the reason I don't beach mine. Just to heavy with a bad back to lift up out of the water.

I have to admit after John Nelson and myself went though my Bearcat, she ran better than it ever has...

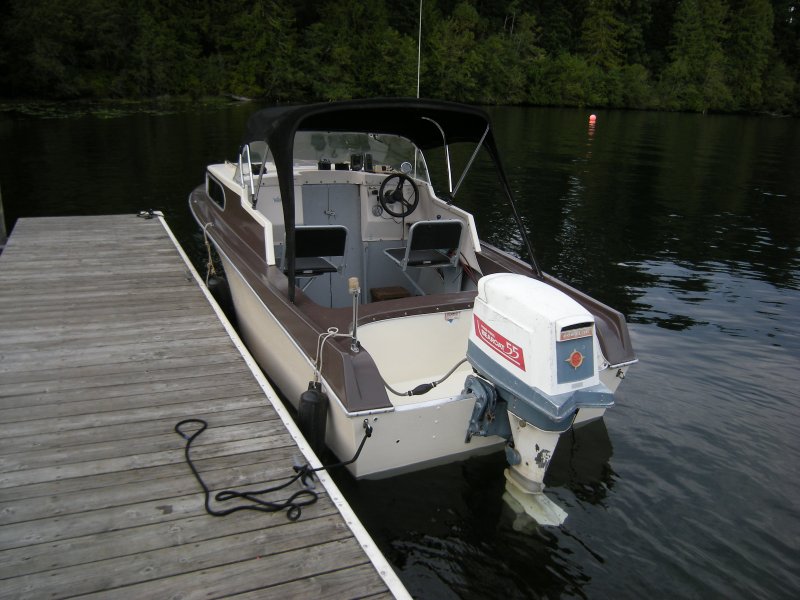

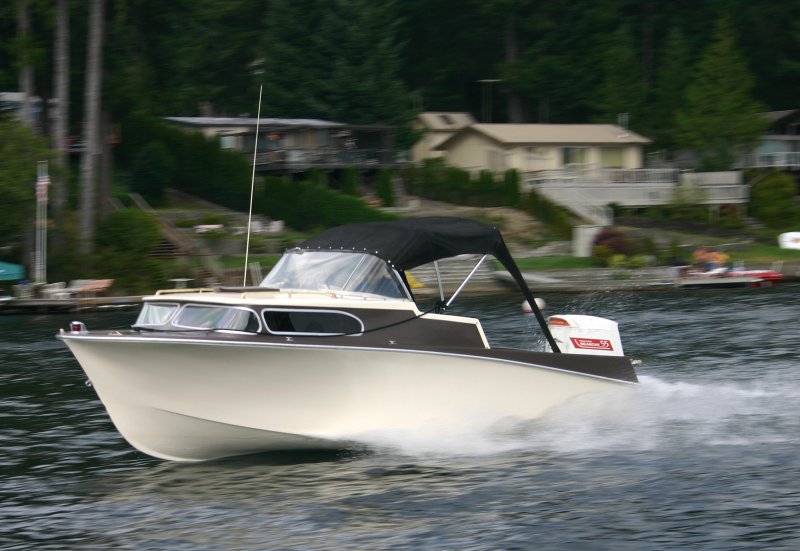

This 17 Unflite got up to 27mph on the GPS and I was about 4500rpms.
I was just afraid to push it much harder.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 2 months ago #46085

  • TNLark35
  • TNLark35's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 125
  • Karma: 3
  • Thank you received: 0
I have a cmc tilt trim on my Sea Ray under a 50hp Johnson, its been the best money spent for my antique boat so far!

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 2 months ago #46117

TNLark35 wrote:

I have a cmc tilt trim on my Sea Ray under a 50hp Johnson, its been the best money spent for my antique boat so far!


Well, I am Very interested to say the least...
I don't suppose you have any pictures to share or any and all information about yours do you??

I want one for my Bearcat...:-)

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 2 months ago #46122

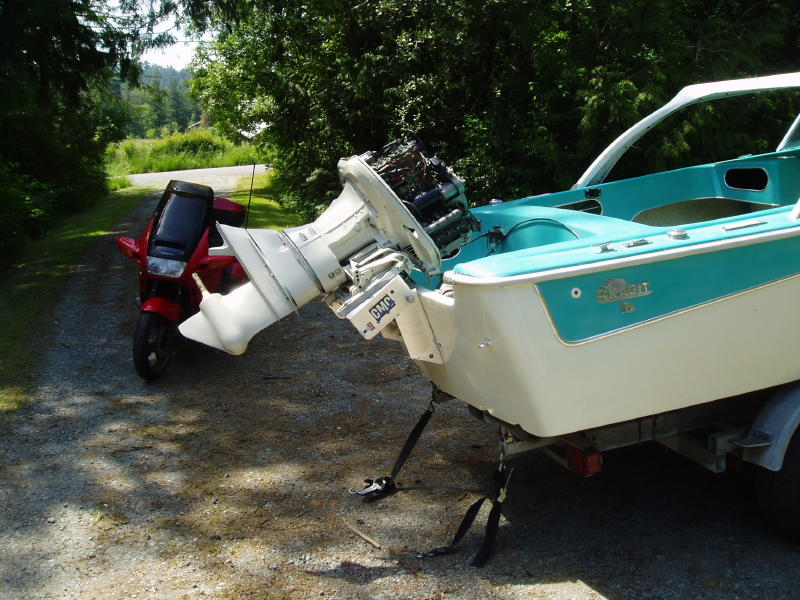

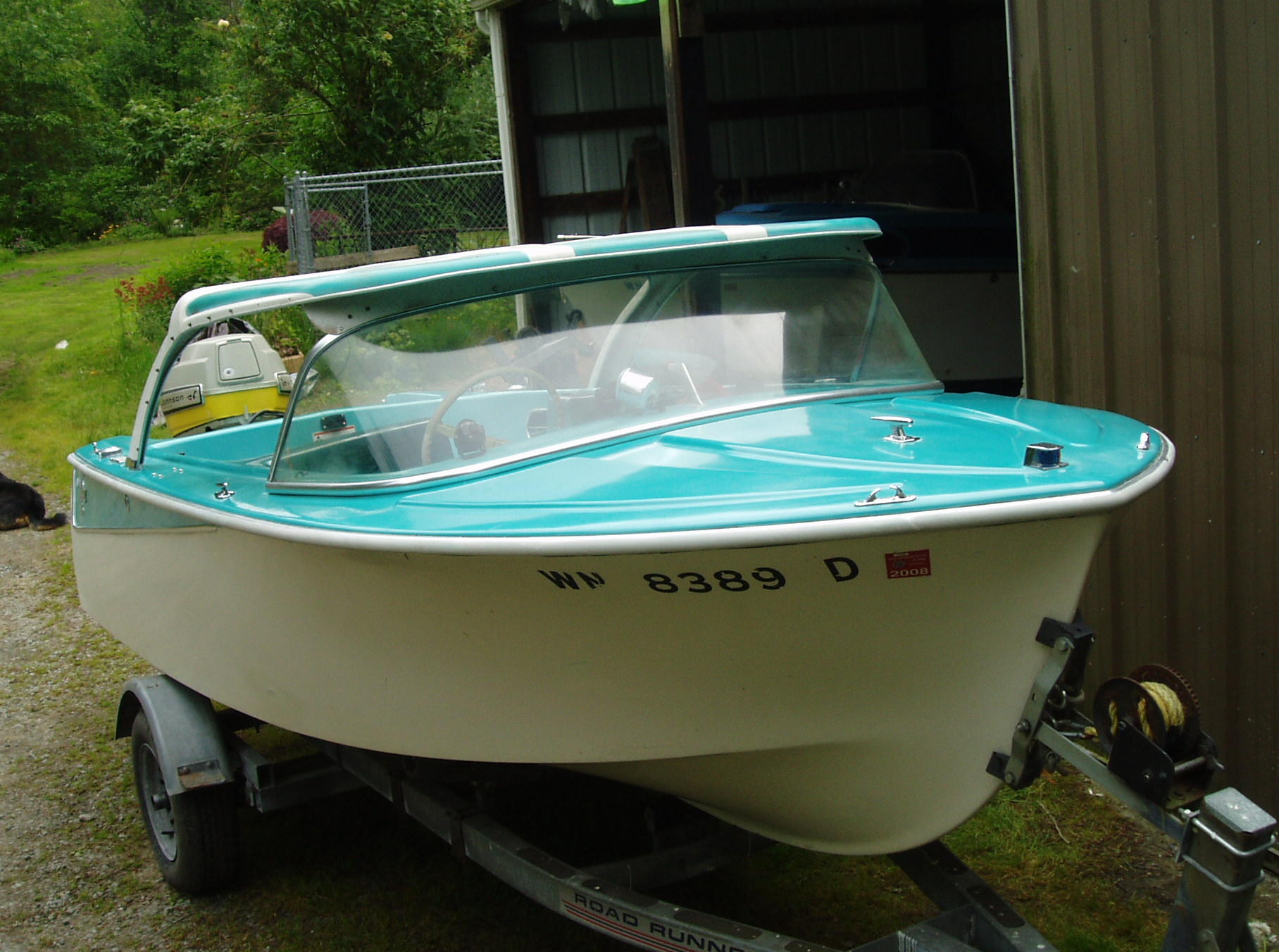

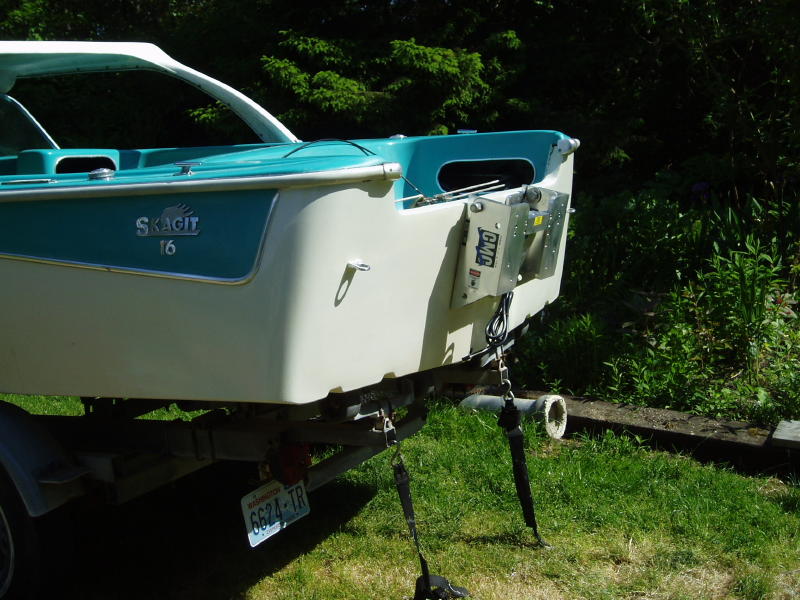

Joe, I have the CMC on my 16ft Skagit with 100HP Johnson. I really like it. I don't think I would be interested in a boat without power trim. Great for beaching and great for helping the boat to ride better in all kinds of water. If you ever are up LaConner way come and look at it. Clint
Attachments:

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 13 years 2 months ago #46127

strobee wrote:

Joe, I have the CMC on my 16ft Skagit with 100HP Johnson. I really like it. I don't think I would be interested in a boat without power trim. Great for beaching and great for helping the boat to ride better in all kinds of water. If you ever are up LaConner way come and look at it. Clint


Hey Clint.
Good excuse for me to get up that way some time..

I seen those CMC setups but will have to fix up something and get it sold to finance one of those critters.
Looks Way slick and I would bet this Bearcat is not too much different in weight as your Johnson..

Joe

Please Log in or Create an account to join the conversation.

Re:Power Tilt, CMC 11 years 3 months ago #83250

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 291
  • Karma: 16
  • Thank you received: 1
Seriously considering one of these!

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Power Tilt, CMC 11 years 3 months ago #83273

  • billr
  • billr's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Posts: 621
  • Karma: 51
  • Thank you received: 0
They are nice, and very heavy duty almost overkill.
I've used CMC and Panther.
You have to do some onsite fab to fit the unusually wide Bearcat transom clamp assy to the tilt unit.
I would also check the other makes if doing it again, www.powrtran.com/ etc etc.
I have a brand new CMC in the box downstairs.

Please Log in or Create an account to join the conversation.
