TOPIC: Westbend
Westbend 9 years 2 months ago #114153
|
Hi

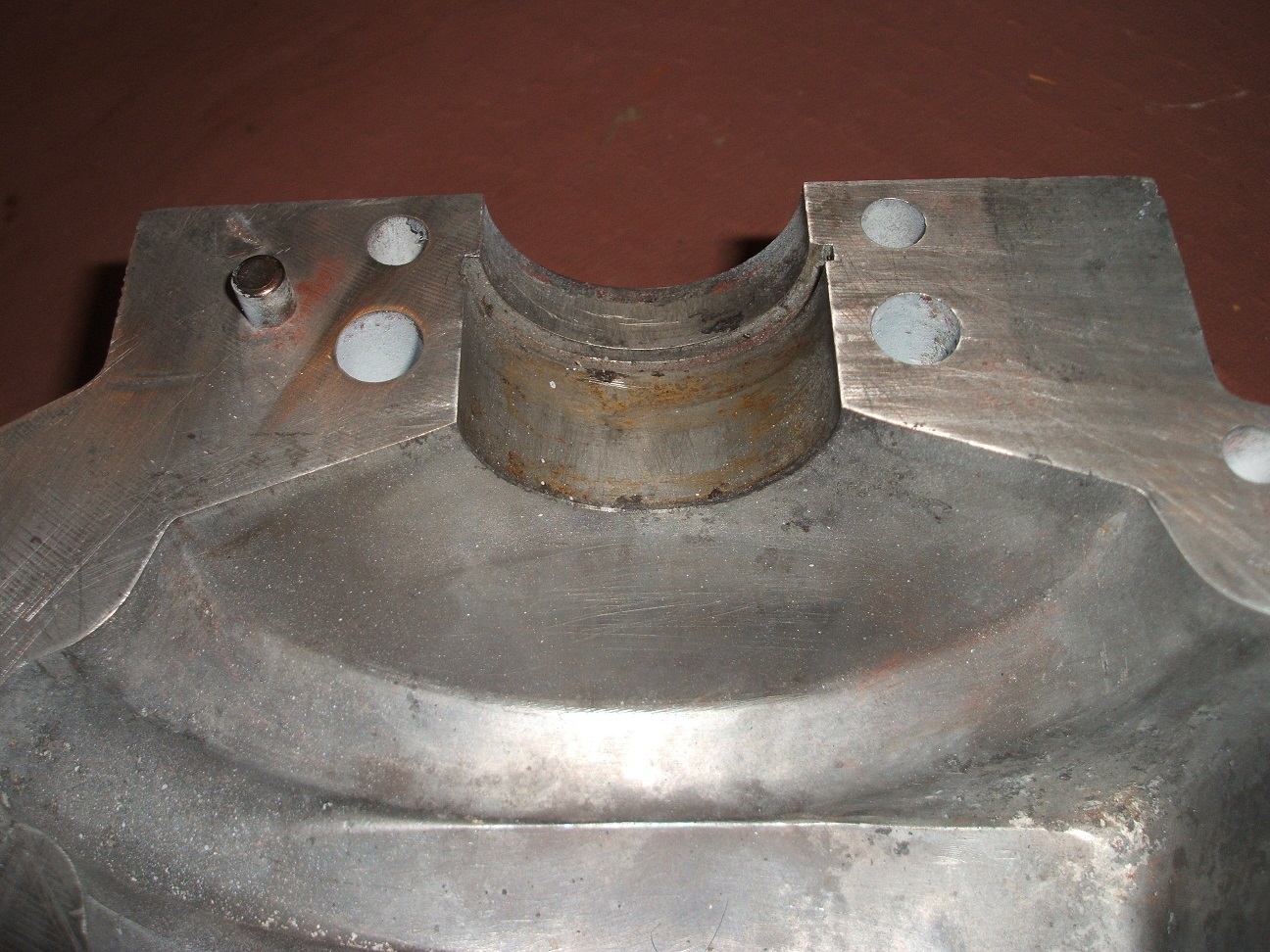

Need  some help with my late 50s Westbend 35hp what is missing in the groove on the crankcase, is it a O-ring?Thanks Carl. [image/]
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114158
|
With no knowledge of your motor I would guess one of two things. Most likely that is the rear main seal. The old school car motors used what looked like a piece of rope which it was somewhat like all be it special made for the job. The other thing would be a thrust washer. That would be on the crank and mate with your groove. Those would be my guesses.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114167
|

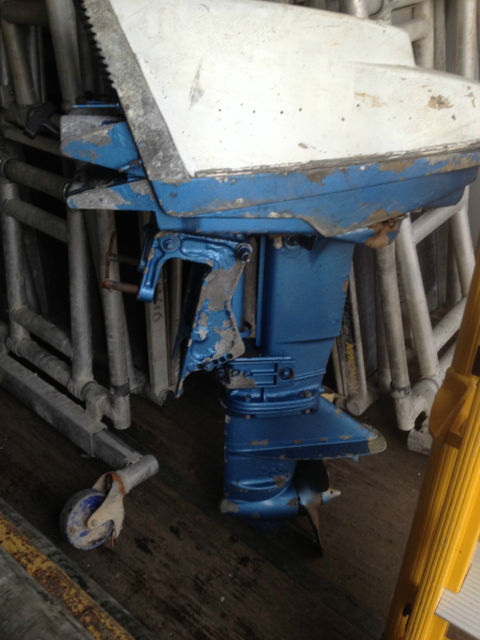

One more pic
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114173
|
The ebay item id given is invalid, no result has been sentThe slot may have held a snap ring or some other type of retainer to keep the crank bearing in position.
There are some parts manuals on eBay which would help you identify the piece (if any): |
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114190
|
My manual for the later Chrysler version of this motor shows nothing in that groove. Little changed in the later motors really. I suspect its just a convenience groove to stop the cutter in while boring the different bores.
|
|
|
Please Log in or Create an account to join the conversation.
Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.
|
Re:Westbend 9 years 2 months ago #114206
|
Hi
I have a copy of a 35hp west bend model no 35801 parts list, I have no model no/plate on my outboard, it has had a hard life, I stared to overhaul this motor over a year ago and never remember a O-ring or clip, but I just need to know so I can start to rebuild the motor. Thanks Carl.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114207
|

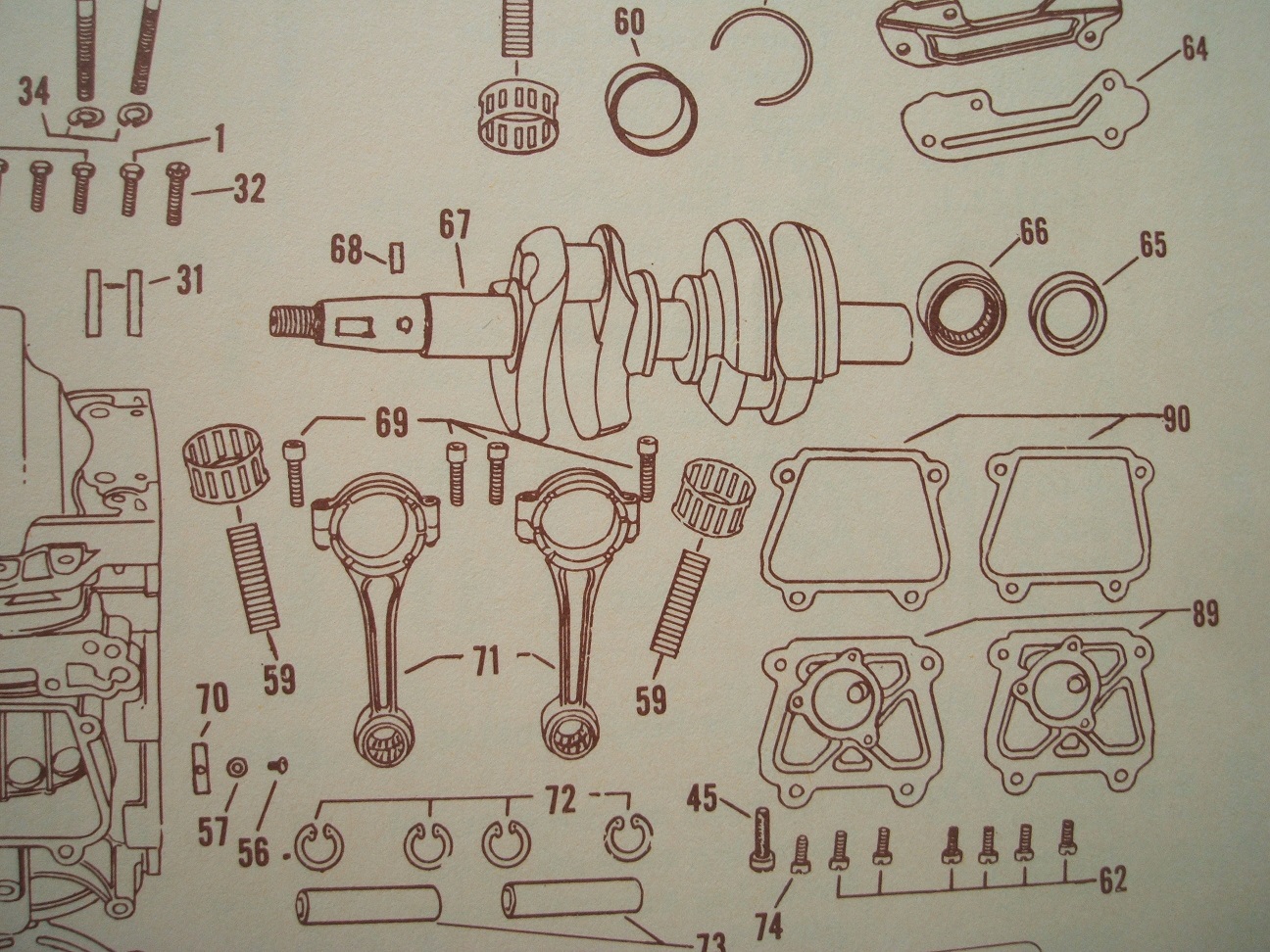

One more pic
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114208
|

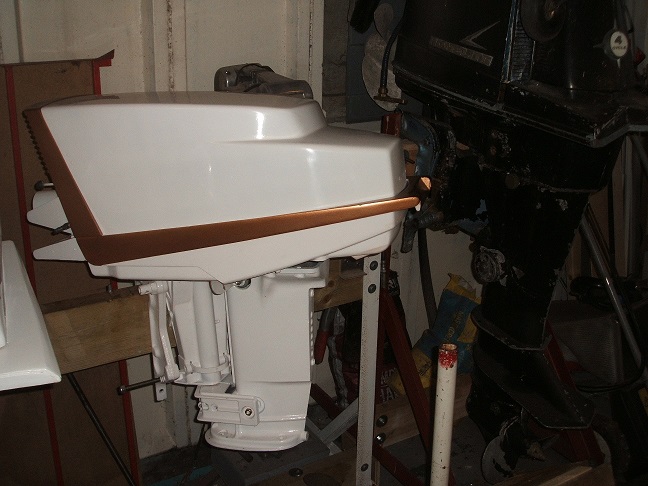

Up date pic
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114234
|
Lookin' good Carl!
|
|
|
Please Log in or Create an account to join the conversation.
Mark
|
Re:Westbend 9 years 2 months ago #114241
|
Thinking about it some more I was thinking about a main seal but it is a two stroke it doesn't need one.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 months ago #114653
|
Yes they do need a seal on each end of the crank and between each cylinder. The crankcase pumps the mixture into the combustion chamber. If any of the seals leak it will run like crap.
|
|
|
Please Log in or Create an account to join the conversation.
Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.
|
Re:Westbend 9 years 2 months ago #115003
|
my 67 45hp is the same way. nothing goes there, i bet it is in fact just a transition for the machine cutters. it does take a seal, probably 4016-1, same p/n top and bottom
|
|
|
Please Log in or Create an account to join the conversation. |
Re:Westbend 9 years 2 weeks ago #116681
|
Why the cream white later Chrysler paint and not the blue/white WB scheme?
BTW I agree with that groove being a process artifact. |
|
|
Please Log in or Create an account to join the conversation.
Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.
|
