TOPIC: '68 maritime

'68 maritime 12 years 10 months ago #56663

wickedlester
Topic Author
Offline
Fresh Boarder
Posts: 21
Thank you received: 0

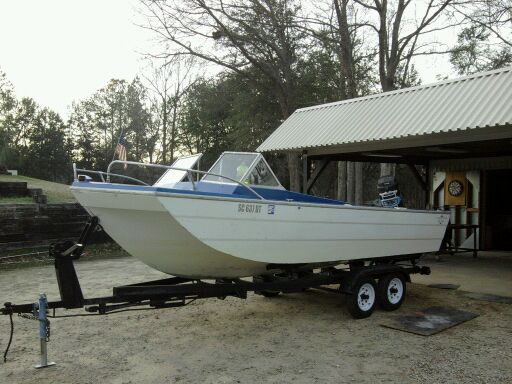

hard top is the first of lots of thing my old girl will recieve on this go round. 20 yrs i've had this boat i figured it was time for a face lift. new belly tank new floor and foam and new paint to come. thought i wld share since i enjoyed finding some other maritime guys on this site a while back

Attachments:

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 10 months ago #56664

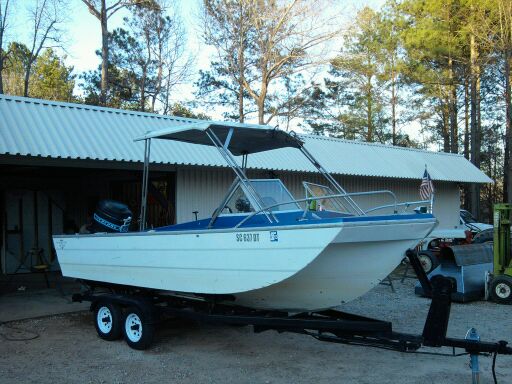

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	with top Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 10 months ago #56665

wickedlester
Topic Author
Offline
Fresh Boarder
Posts: 21
Thank you received: 0

foam was pretty saturated. searching for a belly tank... not much room. the top is vintage 70s and i was able to restore the vintage anchor light as well. what r u guys using for paint? the floor will be replaced with aluminum and i was thinkin about white bedliner material on the inside and down the flat sides on the outside. boat gets fished pretty hard and always has! sides really take a beating

Attachments:

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56673

Split Offline Gold Boarder Posts: 864 Karma: 32 Thank you received: 1	W,: I have a nice red Sears BELLY GAS TANK here in Chattanooga, Tn. . Is this a Aluminum boat .? Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56674

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	yea shes all welded aluminum and tough as a tank. i have a 25' hard top i bought a few years ago but cant stop using my favorite boat! i need a tank asap but i have a max width of 24" and height of 8" center. lemme know the dimensions of the one u have and a price Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56675

g3jim Offline Platinum Boarder Posts: 1009 Karma: -27 Thank you received: 0	there is one of these tri hulls over on lake attitash in Merrimac MA. It has a 115 Merc on it. The guy keeps it super clean and super nice. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56677

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	everyon who owns one loves them forever! i know a guy who had one then had a 24' built new just like it powered with a 275... great boats. thanks alot guys for ur interest and replies. i'll keep updated pics coming Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56681

Split
Offline
Gold Boarder
Posts: 864
Karma: 32
Thank you received: 1

W,: Here is the pic of the red Sears 18 gal tank.. Seems you have the entire width of the splashwell to use .? Anyhow the length is 36 " , has handles on the sides,, 8 " high , but quick fitting is another inch for about 9 " overall. Sight gauge (Black on the lefft side , near fill knob.. $ 25 or less to a GOOD home. !
Trade also for mid 70's 50 hp PROPELLER , Merc,
.......................

............ History also . owned by famous West coast Florida
award winning boat collector .!! Sometimes Glasspar Sedan guys mount vertical , mid ship as Saddle tanks.

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56737

wickedlester
Topic Author
Offline
Fresh Boarder
Posts: 21
Thank you received: 0

wow! thats an awesome tank! i wish it would fit under my splash well but the well drops way down in the back. how wide is it? i was thinkin about tryin to put a tank under the floor while i have all the flotation and decking pulled. i have 24" between the stringers. havin a hard time finding anything both narrow and short enough. sometimes take trips needing as much as 30 gallons as well so i am prob lookin towards an aux under splash well too

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56891

riceman
Offline
Contributing Member
Posts: 397
Karma: 12
Thank you received: 0

i work at a sheet metal shop and we make all sorts of custom stuff for boats. having a gas tank made would be pretty simple. for sure, it would be more than $25... but a custom tank to fit exactly where you want it and maximize your capacity... i would think that would be worth something. heck, if you've got a welder and all you needed was to have a few of the sides formed into shape it wouldn't be too much $ at all. just a thought.

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #56925

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	think i found a poly tank for the belly. thanks alot guys. keep u posted Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #57058

wickedlester
Topic Author
Offline
Fresh Boarder
Posts: 21
Thank you received: 0

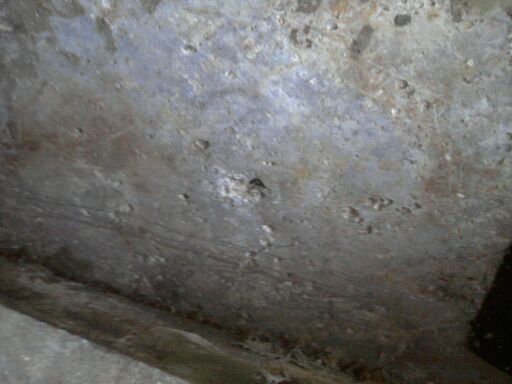

got the foam out and i have some corrosion to deal with. opinion wanted of best way to deal with it. cause would be crevice corrosion from the foam so heres where i stand. repair pin holes with epoxy and seal either with aluma protect or maybe urethane bedliner and i must decide whether or not to replace the foam which was the cause of my problem..... opinions

Attachments:

Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #57059

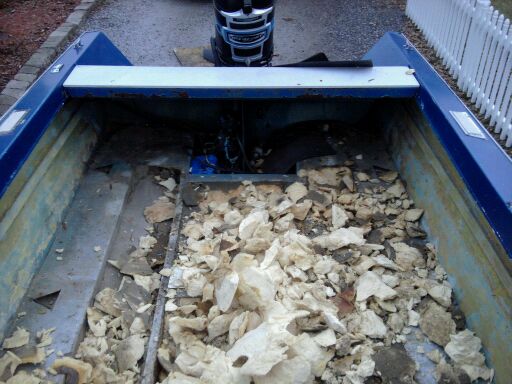

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	foam gone Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #57060

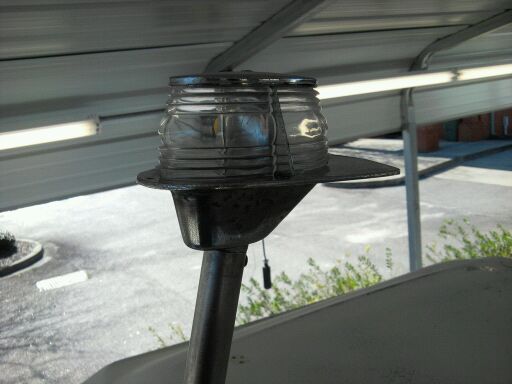

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	i was able to salvage the original light from the top i used. goes well with the boat and the existing nav light Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 9 months ago #57061

wickedlester Topic Author Offline Fresh Boarder Posts: 21 Thank you received: 0	i cld maybe make an access in the floor and use this tank. wld love to but i wanna be sure before i take advantage of ur generosity. thanks again for offering it to me. still wish it wld fit under my splash well! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:'68 maritime 12 years 7 months ago #61785

jsill
Offline
Fresh Boarder
Posts: 4
Thank you received: 0

Seeing these old Meritime Boats brought back a lot of memories, I worked for meritime back in 1965-66 good company to work for. Company was owned by Merick Lewis who owned Alliance Mfg. He also owned Formula Boats in Miami FL, they made the exact replica in fiberglass. I did all the cutting and bending of the Aluminum, I averaged about 4 boats a day. I particularly liked the swirled alum finish with clear red lacquer, what a beauty.
