1964 Lone Star Medallion Transom Needs Replacement

1964 Lone Star Medallion Transom Needs Replacement 8 years 10 months ago #119907

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Hi all! As the subject stated, I have a 1964 Lone Star Medallion with a rotten transom. Looking for advice on this project. (Yes, I'm a Noob!) Thanks in advance! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 10 months ago #119912

satx78247 Offline Contributing Member Posts: 2688 Karma: 66 Thank you received: 3	WeatherEye, WELCOME ABOARD. IF I was doing it, I would use either 3 half-inch layers of MDO, laid in epoxy peanut butter OR 2 X 3/4" layers of the same. (Such a transom, properly sealed with epoxy should outlast the hull.) yours, satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Resistance to tyrants is obedience to Almighty God. Thomas Jefferson, 1803

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120333

WeatherEye
Offline
Fresh Boarder
Posts: 16
Thank you received: 0

Thanks satx,

I had planned to use 2 layers of 3/4" MDO sealed with epoxy. Finally started the project yesterday. Drilled several buck rivets on both sides of the transom...apparently not enough to gain access yet to the rotten wood.

Going to hold off from further drilling until I'm certain how many more (and which ones) need to be removed to accomplish this task.

Have been hunting all over the Internet to find additional info...no luck yet.

Thanks for your suggestion.

WeatherEye aka Will

Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120336

jbcurt00 Offline Moderator Posts: 738 Karma: 51 Thank you received: 15	Pix would help Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120348

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	I'll post some tomorrow. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120364

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Pics...the 2048 size limit for pics is giving me fits. I have tried re-sizing but still something is not quite jake. Please standby as I deal with these technical difficulties. WeatherEye Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120510

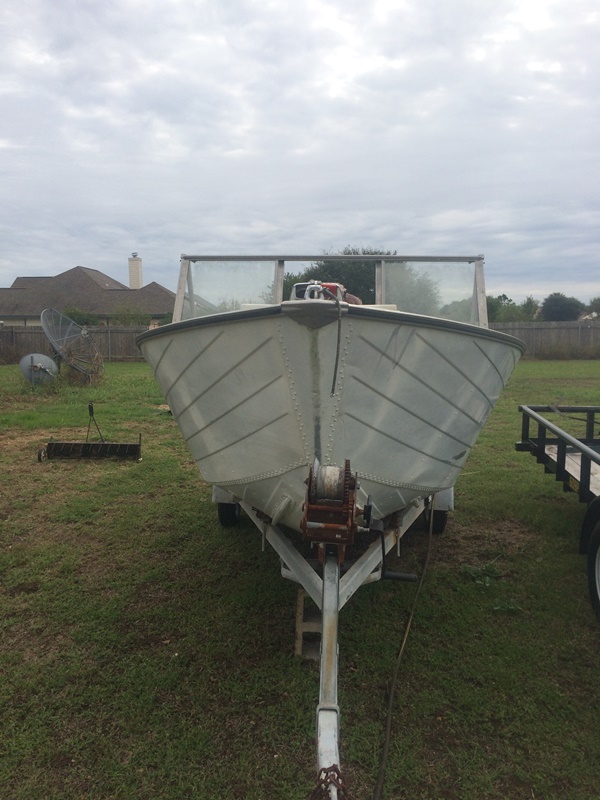

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Fingers crossed...hope this finally works. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120511

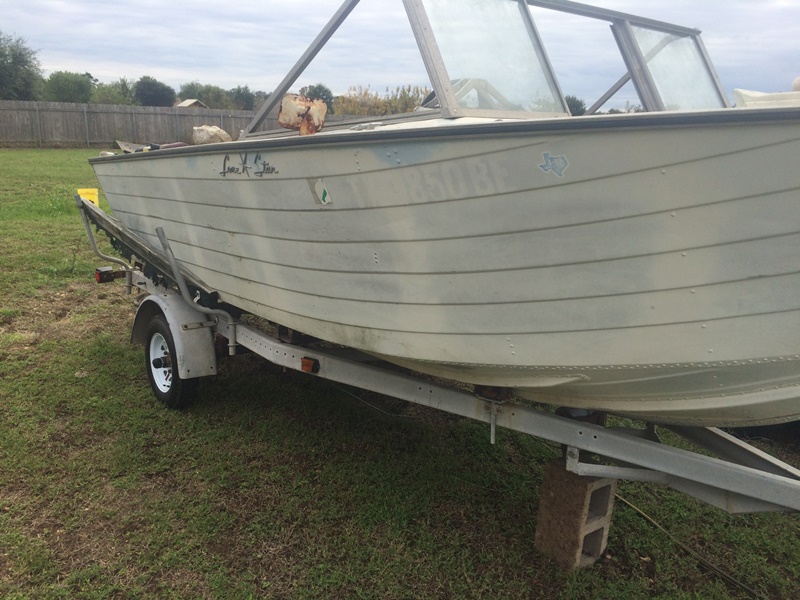

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Starboard hull... Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120512

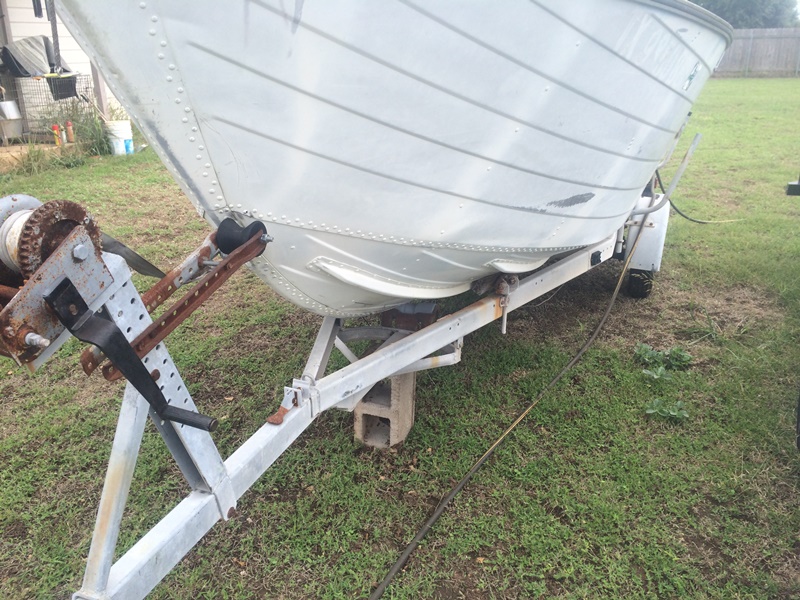

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Port Hull Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120513

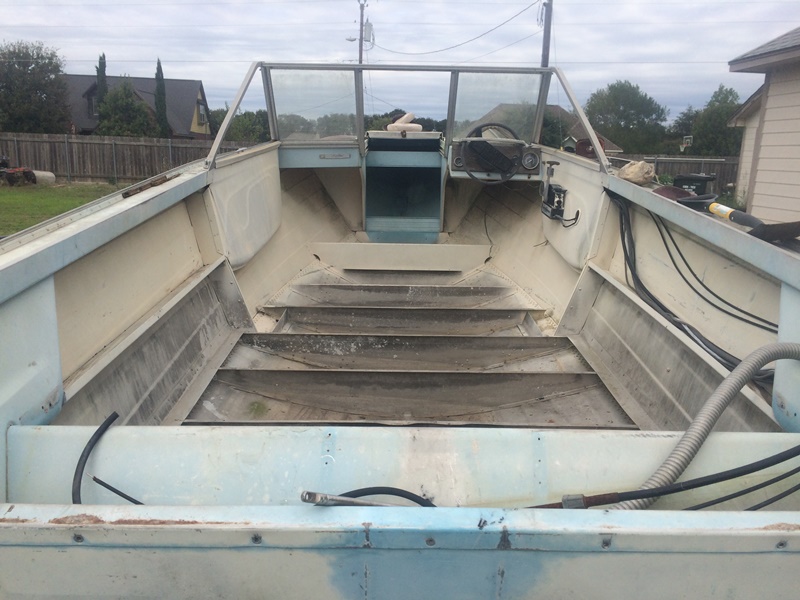

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Gutted interior... Anybody have a pattern for the deck? Please PM me...thanks! Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120514

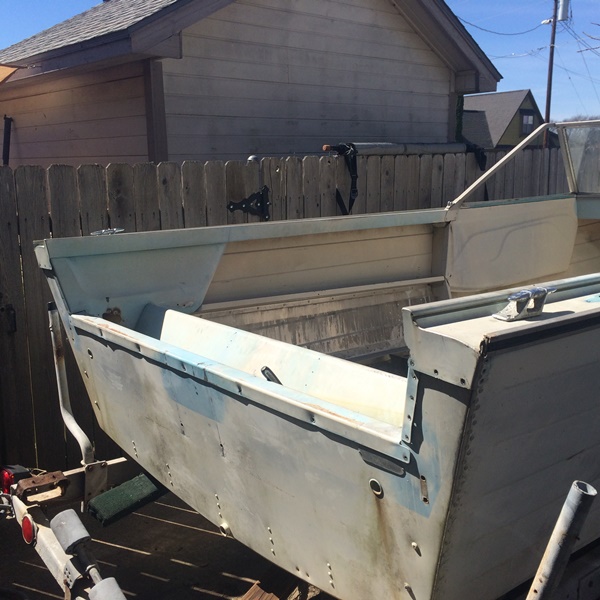

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Stern Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120515

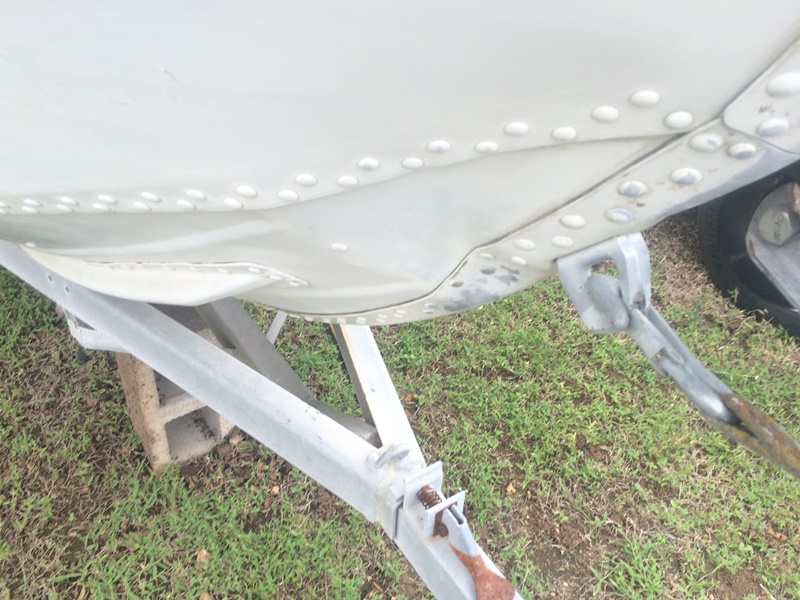

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Ugly dent... Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120518

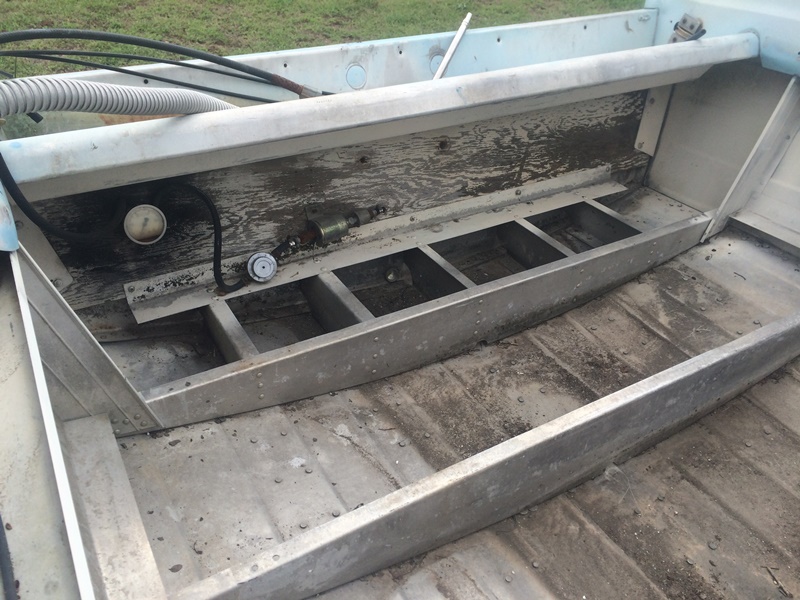

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	View from inside the boat...the rotted transom. BTW...I found out exactly what I must do to gain access to replace. I'm going to have to drill about 100 or so buck rivets from the stern to the rear windshield support frame. Most of the rivets are along the gunwales. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120519

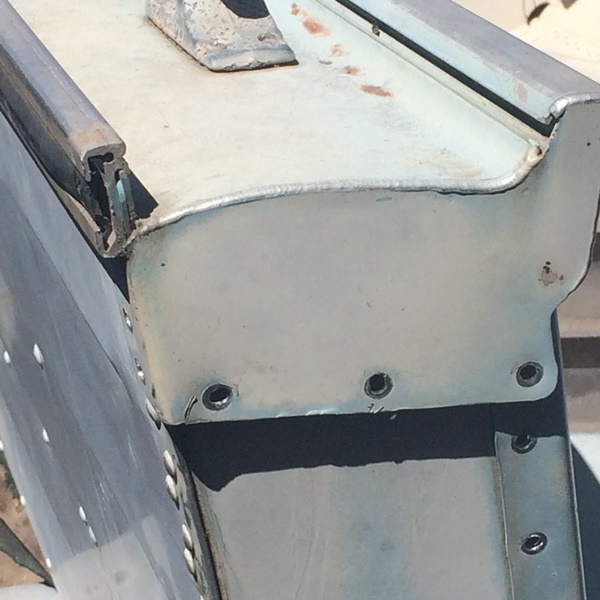

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	Project underway...port side stern view of the gunwale. This is going to take awhile... Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120571

satx78247 Offline Contributing Member Posts: 2688 Karma: 66 Thank you received: 3	WeatherEye, Do you need floorboard patterns?? (I think that I still have a full set.) yours, satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Resistance to tyrants is obedience to Almighty God. Thomas Jefferson, 1803

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120592

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	satx78247 wrote: WeatherEye, Do you need floorboard patterns?? (I think that I still have a full set.) yours, satx Yessir...I could sure use the floor patterns. BTW...did you ever find any seats for your Medallion? Or at least the configuration? WeatherEye Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120601

satx78247
Offline
Contributing Member
Posts: 2688
Karma: 66
Thank you received: 3

WeatherEye,

The Medallion "went away", as I found a MUCH rarer TX-built boat. = It went to south LA to be redone as a fishing machine.

Send me your snail-mail address by PM & I'll try to remember where I put the envelope of floor patterns. - They are FULL-SIZE.
(I'll start looking for where that I "hid them" tonight.)

yours, satx

Please Log in or Create an account to join the conversation.

Resistance to tyrants is obedience to Almighty God.
Thomas Jefferson, 1803

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120605

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	satx, Thank you sir! I am not adept on Fiberglassics. Could not find PM...but I did update my profile to include what you need...should you find the patterns. If you do not mind explaining to me...How do I PM?? Kind regards, WeatherEye Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120624

jbcurt00 Offline Moderator Posts: 738 Karma: 51 Thank you received: 15	go to his profile page, there are a couple of links for contacting him Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120776

Essayon
Offline
Fresh Boarder
Posts: 44
Karma: 3
Thank you received: 4

Can you remove the splashwell without removing the gunnels? I rebuilt a transom using two pieces of marine ply encased in glass. I cut off the kick up on one side and could just get it into place.I put the cut off against the aluminum and slid in the next piece the opposite way with plenty of resin in between. I used a bunch of short screws to keep the boards clamped together while the resin set. I sealed the screw holes with resin when I pulled them. If I remember right I used 5200 to glue the first board to the aluminum, so it is not going to be fun to replace it. It held up for 18 years. One thing, don't put the wood all the way down into the bottom of it's slot in the transom and drill a couple of weep holes to let moisture drain from under the wood.

Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120796

WeatherEye
Offline
Fresh Boarder
Posts: 16
Thank you received: 0

Unfortunately no. Not without tearing up the part of the splash guards...and possibly compromising the integrity of the structure. I'm okay with the removal of the gunwales. My transom is 1 piece and considering the maximum recommended outboard is a 90 HP...I would feel much more comfortable with a one piece. Besides...there is simply no way to peel back anything to gain access without drilling about 100 buck rivets.

It is what it is.

Please Log in or Create an account to join the conversation.

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120798

satx78247 Offline Contributing Member Posts: 2688 Karma: 66 Thank you received: 3	WeatherEye, EXACTLY SO. (Fwiw, she is coming to lunch tomorrow.) yours, satx Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Resistance to tyrants is obedience to Almighty God. Thomas Jefferson, 1803

Re: 1964 Lone Star Medallion Transom Needs Replacement 8 years 9 months ago #120800

WeatherEye Offline Fresh Boarder Posts: 16 Thank you received: 0	SATX, Wonderful sir...I look forward to seeing you tomorrow. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.
