TOPIC: 1968 Smoker Craft - New Project
1968 Smoker Craft - New Project 9 years 6 months ago #109285
|

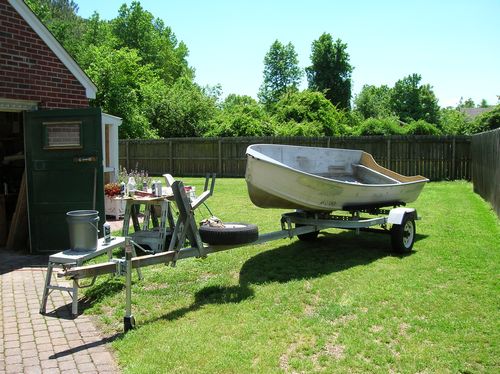

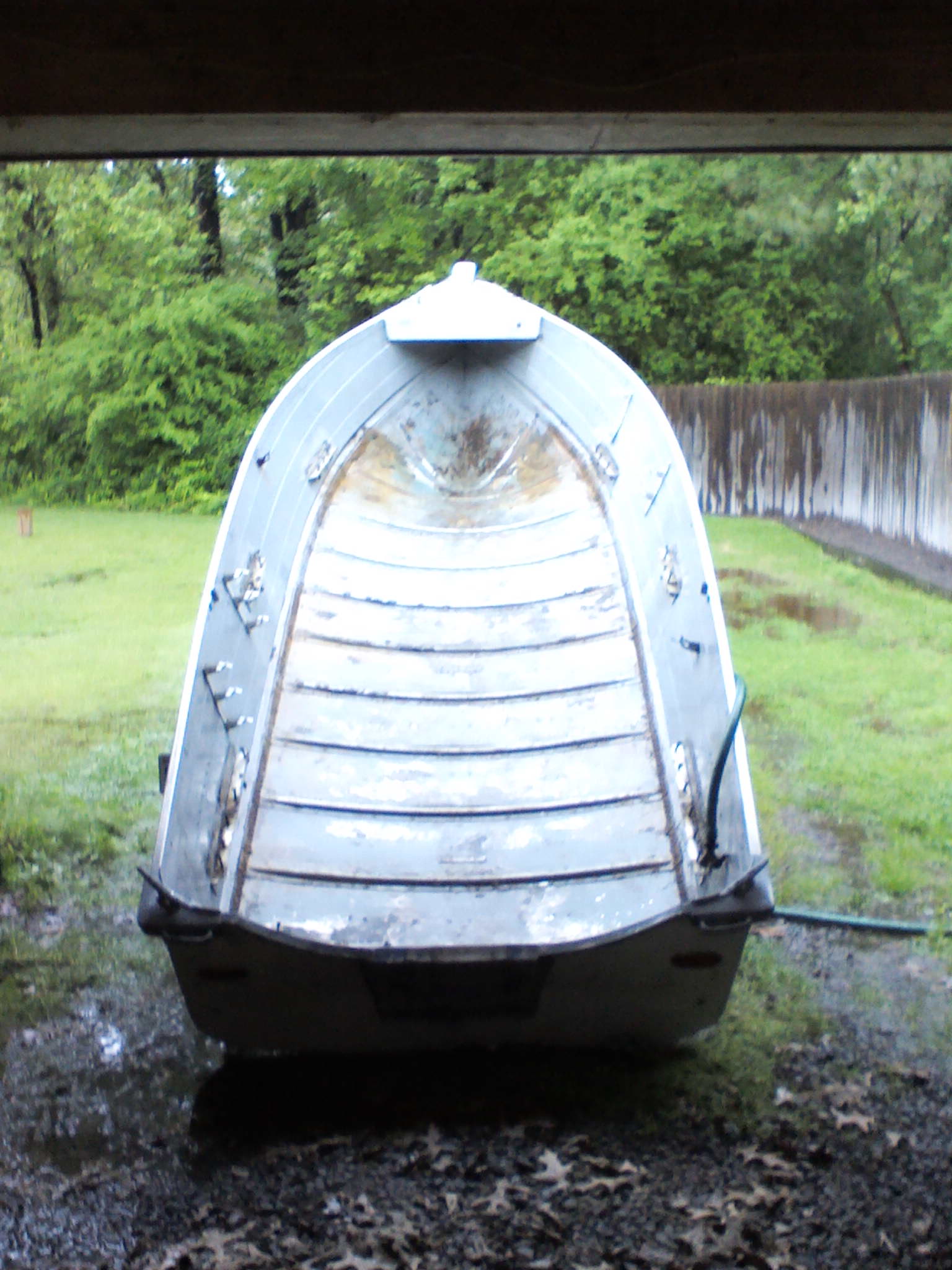

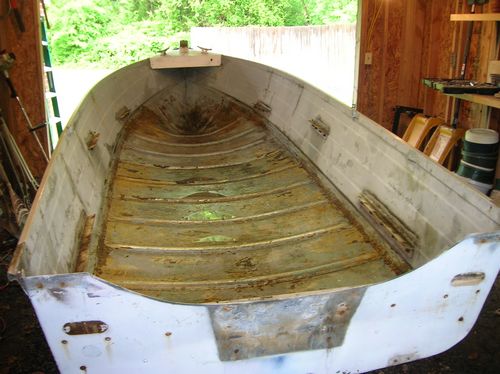

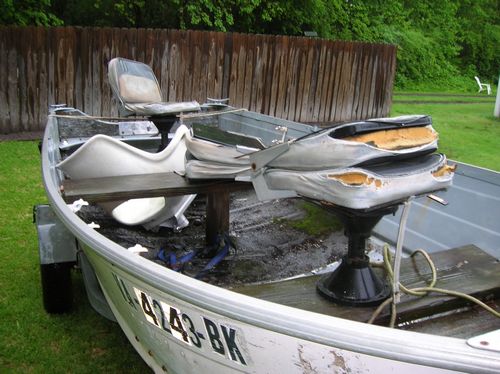

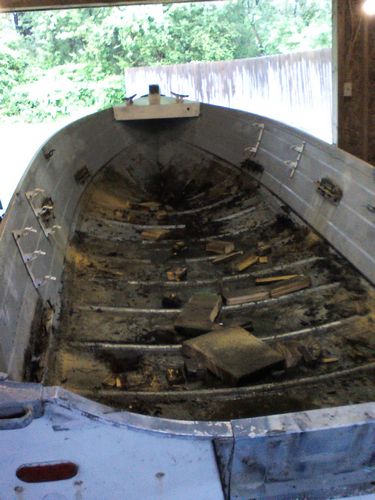

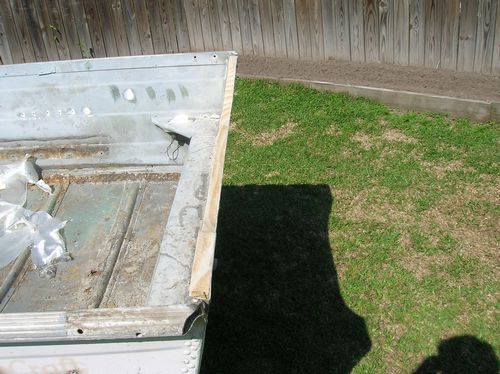

Just picked up this 1968 Smoker Craft... Got it torn apart an will be putting in a new transom. I need to ask how to go about putting in a floor and also I'll need to remove the old seat brackets now through bolted to the hull. I want to replace the old rusty bolts. Any suggestions on how to be sure I make everything water tight as at least the rear seat bolts through the hull will be below the water line..... This will be my first attempt at an aluminum hull.
Thanks... Don Trying to post pics without success... Will try again later.... |
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109286
|
Trying to posts pics.....
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109287
|
More
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109288
|
Trying again to post a pic....
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109289
|
Actually I will need to plug the bolt holes below the waterline. It appears the PO put in new seat brackets and they are not where they should be... JB Weld ??
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109290
|
Just saw a video on youtube about using rivets with 5200... Looks like that's the way to go.....
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109311
|
Great to see you working on another project Don, looks like a nice fishing boat there!
|
|
|
Please Log in or Create an account to join the conversation.
Mark
|
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109326
|
I just finished redoing an 86 Smoker craft. My son and I removed every rib and replaced every rivet in the bottom .I used a sealer to glue every rib before reriveting and then I sealed the whole bottom with Gluvit ,one quart sealed the whole bottom , best $50.00 spent.
You will have to put a stringer or two down the middle and then screw to the edge of ribs heres pictures of my bottom.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109327
|

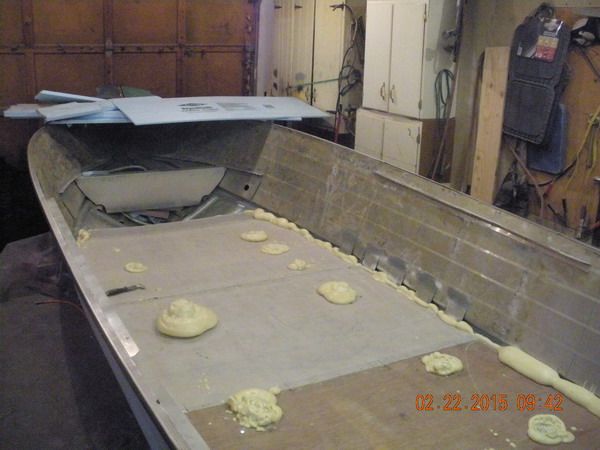

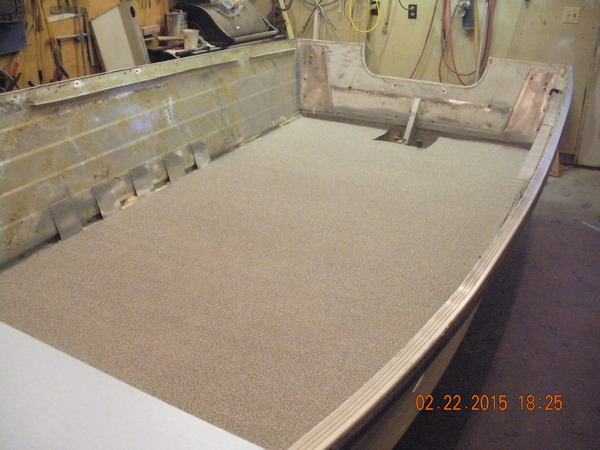

Heres one with the floor installed and the foam poured
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109328
|
and heres one with new vinyl installed. One day I will figure out how to put more than one picture per post.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109333
|
Paul, just pull up your post and go to the bottom right corner and hit the edit button and ad another pic. you can do this many times but you have to go back to the original post every time. give it a try. frog
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109342
|
Thanks for the info on putting in a floor. When I remove the old seat brackets the bolt holes will be about 7/16". Guess I'll put on an aluminum plate on the outside and drill new rivet holes and seal the back of the plate with 5200 and rivet it in place.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109453
|

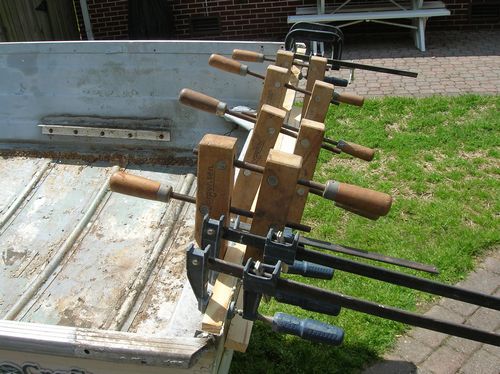

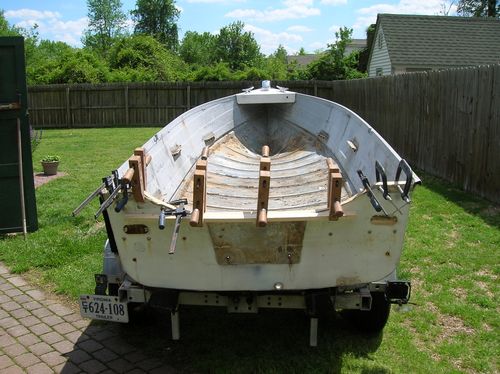

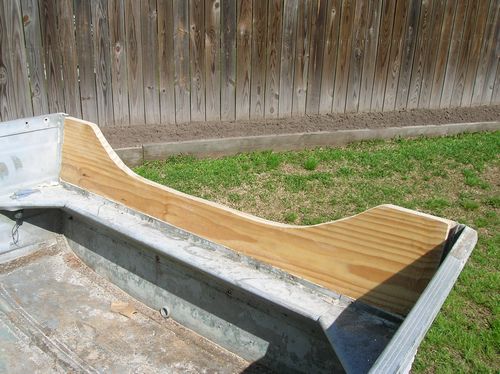

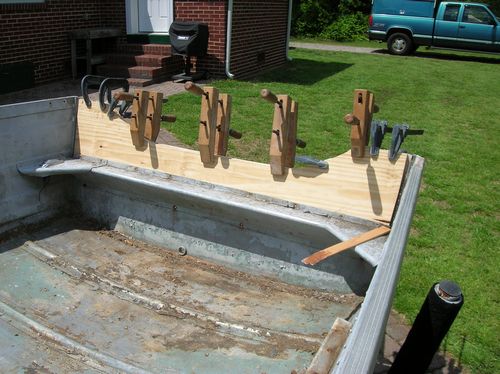

Transom piece epoxied in....
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109498
|

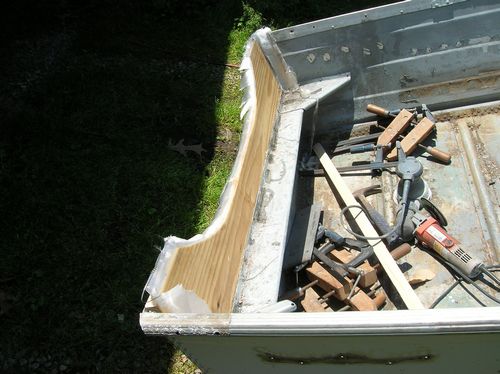

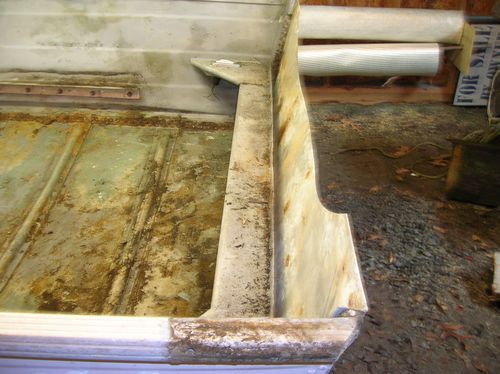

Transom glassed in
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109521
|
Just ordered some closed end blind dome head rivets to take care of all the holes needed to be plugged. From
www.rivetsinstock.com/rivets/blind-rivets/closed-end-blind-rivets.html Probably have them in a couple days.. In the mean time I'll get the outer hull scuffed up/sanded for primer and top coat. The bottom hull will remain aluminum. The interior will get painted. I was told on another boat building forum that adding two stringers for putting down a floor would "Compromise the structural integrity" Not sure how that could happen ? |
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109629
|

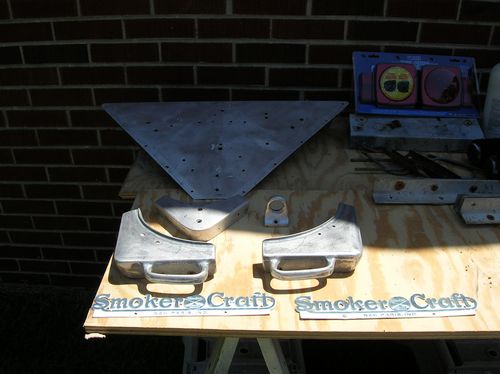

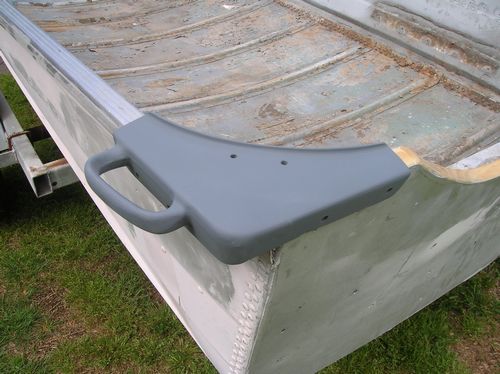

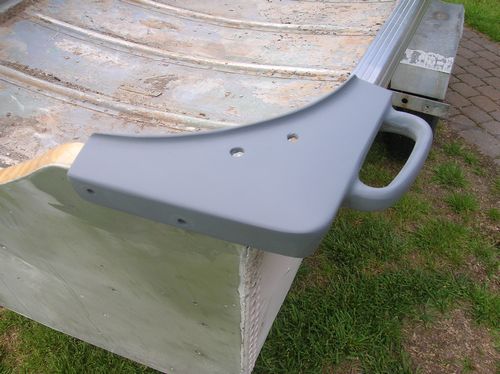

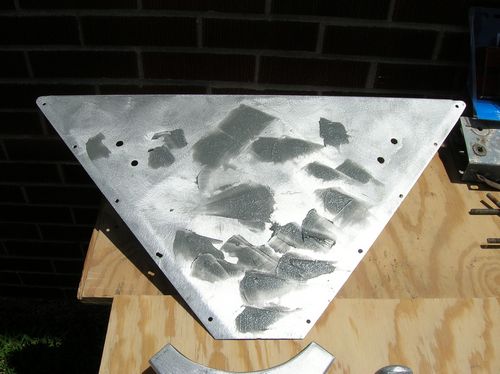

Took about 5 hours to remove the rusted and corroded bolts, sand and clean the trim parts but looks like it was worth the effort. Filled about 20 holes in the front bow plate with epoxy.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 6 months ago #109887
|

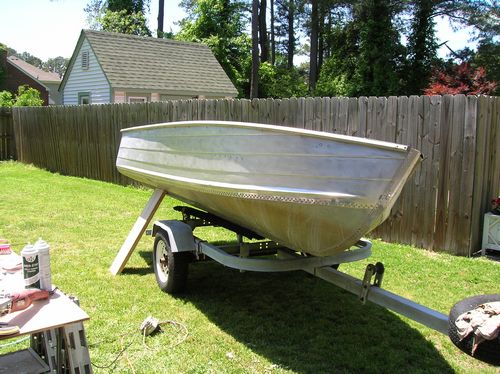

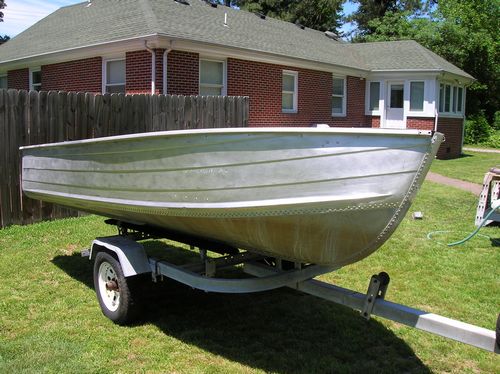

Got the starboard side stripped and sanded.... Came out very nice.. Recently found out it is a 1961 not a 1968. First year of production.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 5 months ago #111058
|
Coming along... Got some power for it a couple days ago.....
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 5 months ago #111062
|
Looking good Don!
|
|
|
Please Log in or Create an account to join the conversation.
Mark
|
Re:1968 Smoker Craft - New Project 9 years 4 months ago #111667
|

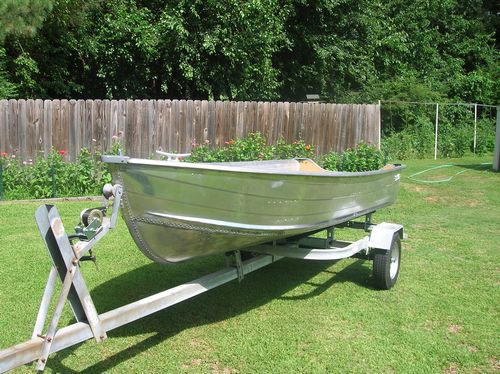

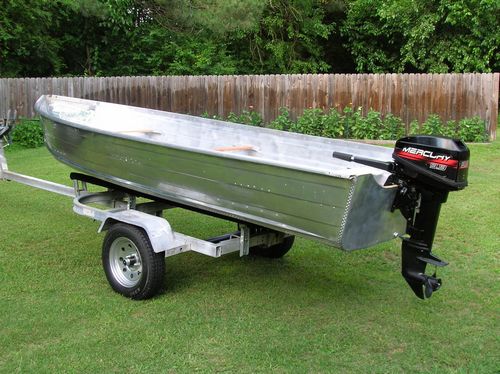

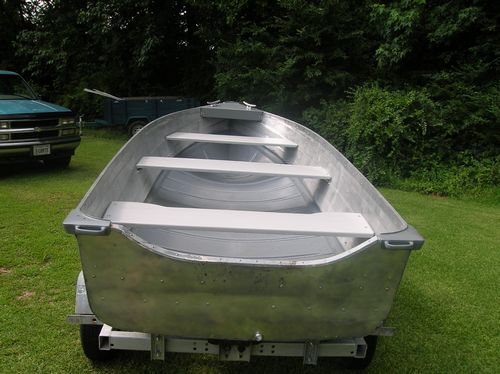

Done... Just need to put the motor on it..........
|
|
|
Please Log in or Create an account to join the conversation. |
Re:1968 Smoker Craft - New Project 9 years 2 months ago #114109
|

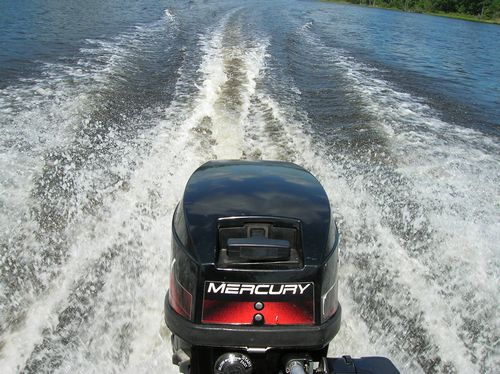

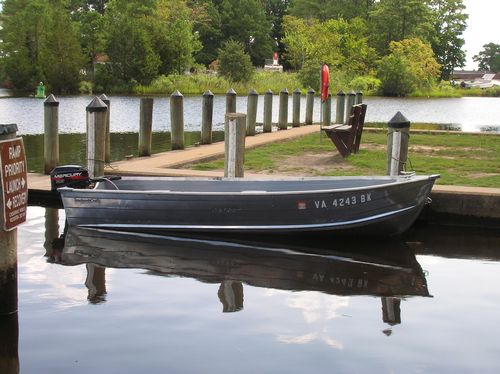

Launched last week... Ran great....
|
|
|
